Operation
Controls and displays
Command Station CS 5010 DVI
7
l
43 BA_CS9000DVI EN 4.0

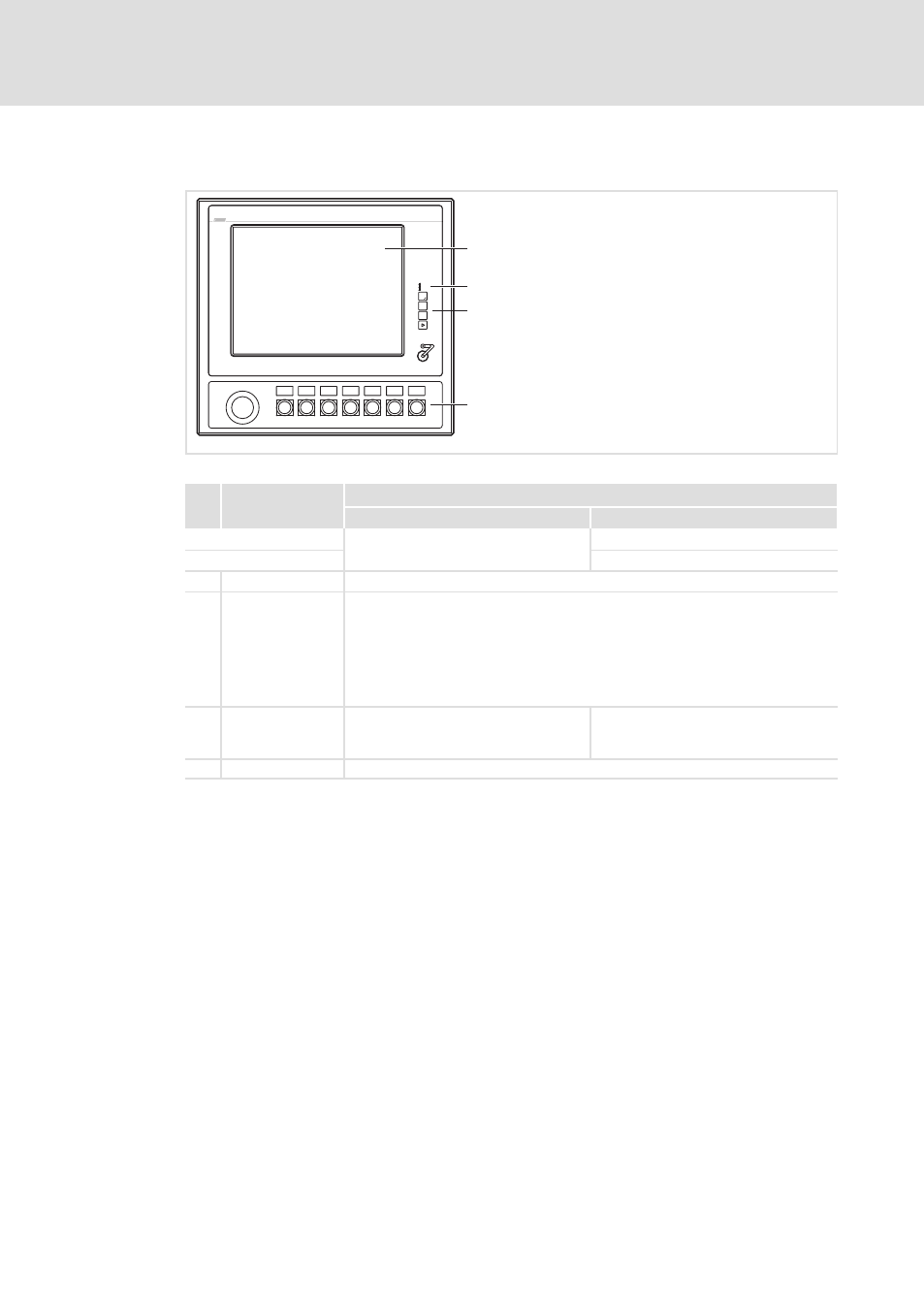

7.2.2 Command Station CS 5010 DVI
Status Fail
F1
+
-
F2
F3
Power
1
2
5
0
CS50x0−023
Pos. Designation Function
Standard mode Service mode
Switch on mode: Press " [" for 4 s
Switch off mode: Press " [" or wait for 35 s
0 Display Application−dependent
1 Status LEDs Power (green):
l Is ON when the supply voltage is present.
Fail (red):
l Is On when a power supply failure has occurred.
l Is blinking when the screen signal is missing.
Status (yellow):
l Application−dependent
2 Function keys F1 ... F3: Send key code for Shift−F1 ...
Shift−F3 Tool: Application−dependent
+: Increase screen brightness
−: Reduce screen brightness
5 Control element Application−dependent
