Electrical installation
Connecting the supply and peripheral devices

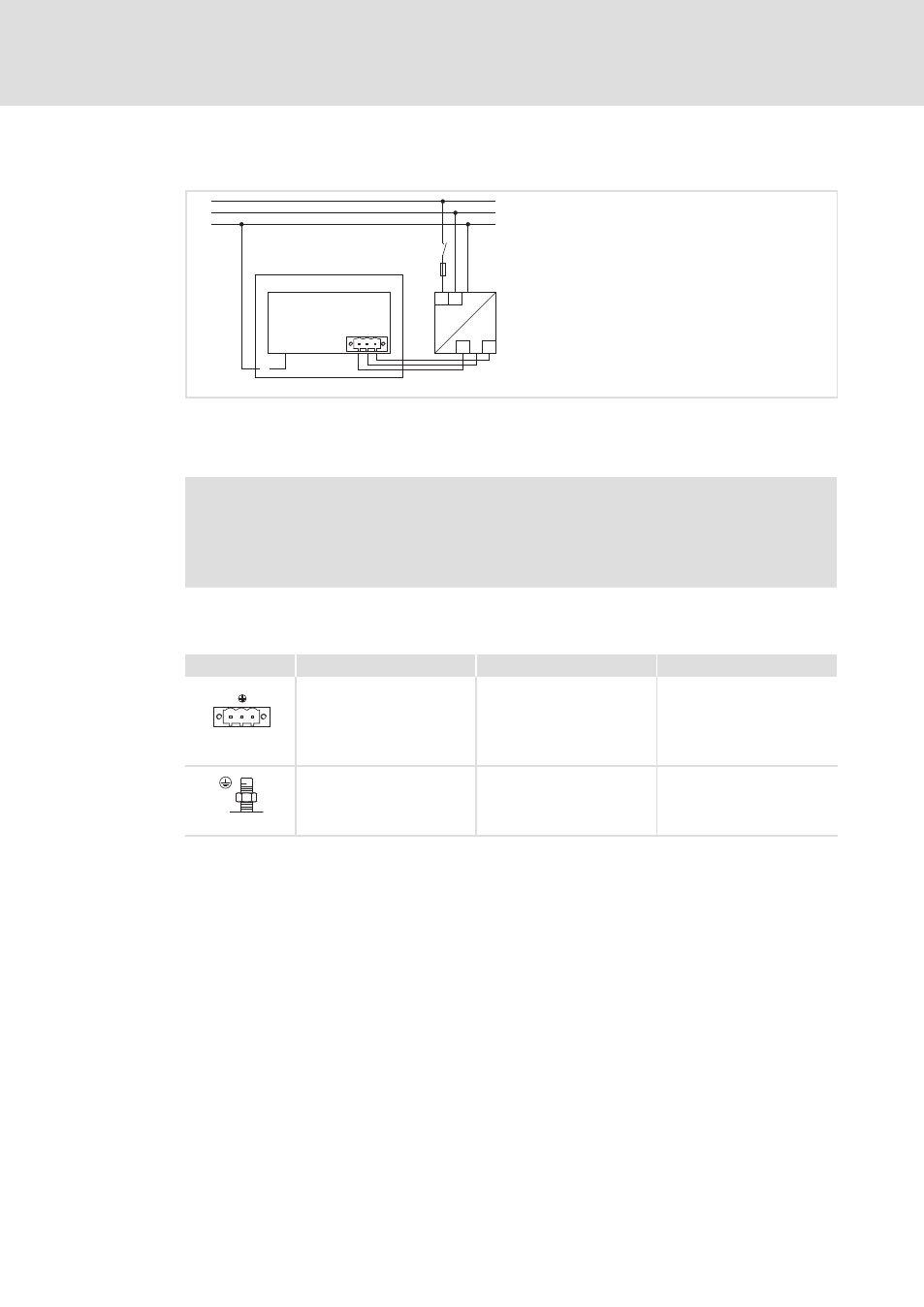

Terminal diagram supply
6
l
37 BA_CS9000DVI EN 4.0
6.3.2 Terminal diagram supply
L1
N
PE
L1 N
+
0V +24
+
~ =
+
0 V PE +24 V
+
0
1
2
F
S
CS50x0−021
0 Mounting frame
1 Screen
2 Power supply unit
)
Note!
Observe the max. permissible input voltage.
Professionally fuse the device on the input side against voltage variations and
voltage peaks.
6.3.3 24 V connection
Description Connection type Cable type
0V U
DC 24 V connection
3−pole Phoenix Combicon
socket
Cable (conductor
cross−section max. 2.5 mm 2 )
with Phoenix Combicon plug,
MSTB 2.5 / 3−STF−5.08
IPC001
PE connection M4 threaded bolt
Separate earthing conductor
(min. 2.5 mm 2 ) with ring
cable lug
IPC001
