Mechanical installation
Changing the labelling of the operator console
5
l
32 BA_CS9000DVI EN 4.0
5.3 Changing the labelling of the operator console
The control/display elements on the control desk are factory−labelled according to your
specifications. If you require a different labelling, create a new labelling strip according to
the following outline.
0
28.8 x 15.5
40
16.4 6 x 40 (= 240)
315
1-2 x 45°
1
8
.5
S1 S2 S3 S4 S5 S6 S7
CSB−004

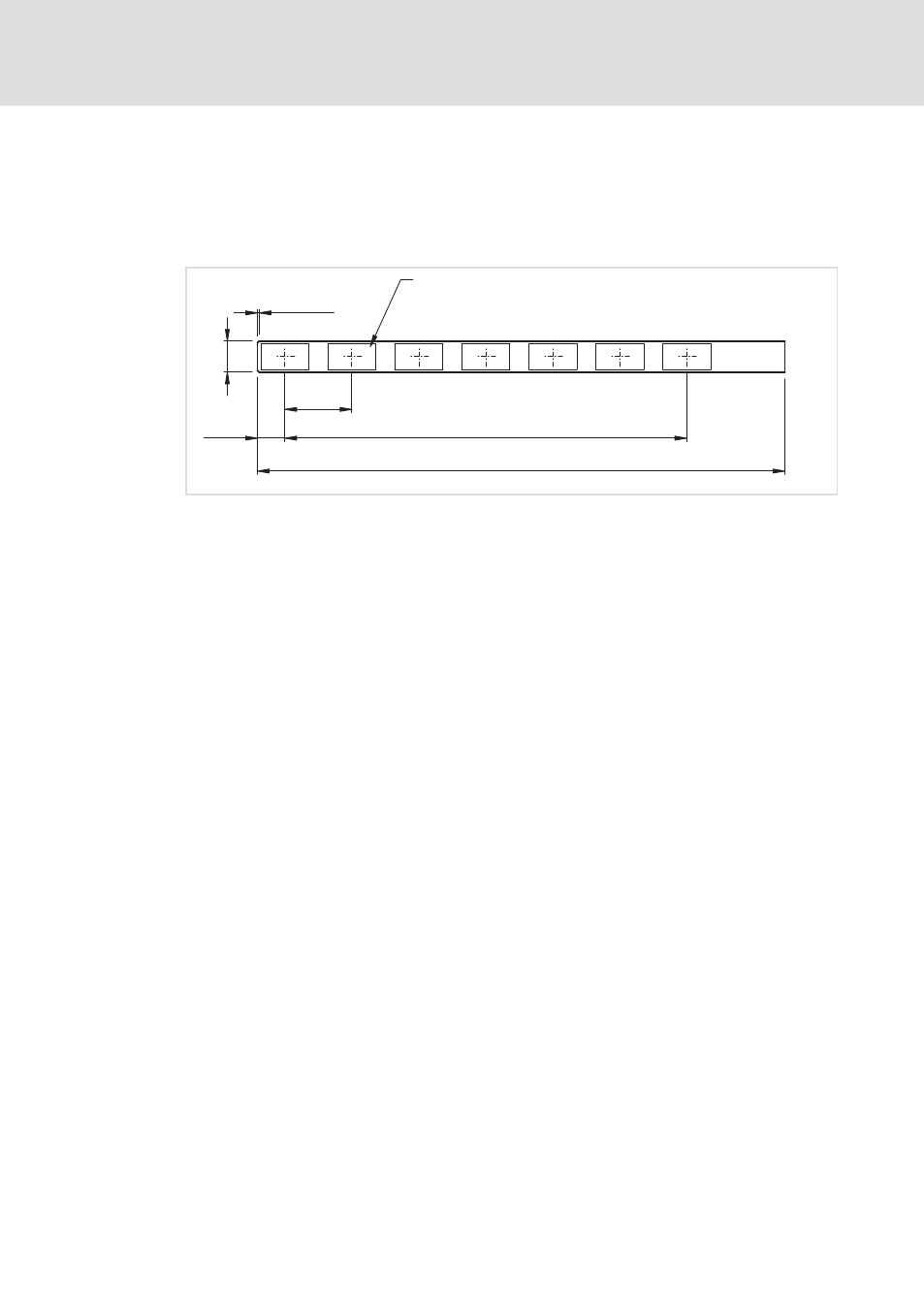

Fig. 5−1 Labelling strip sizes
0 Maximum labelling field sizes
All dimensions in millimetres.
I
Tip!
We recommend glossy paper of 135g/m 2 .
The insertion of the strip can be simplified if the insertion−side corners are
provided with a chamfer (see illustration).
The labelling strip can be accessed from the back of the operator panel (inside) when the
housing is open.
