How to use annotation & measurement – Leica Biosystems Acquire V2.0 Calibraton & Measurement User Manual
Page 5
How to use annotation & measurement:
5

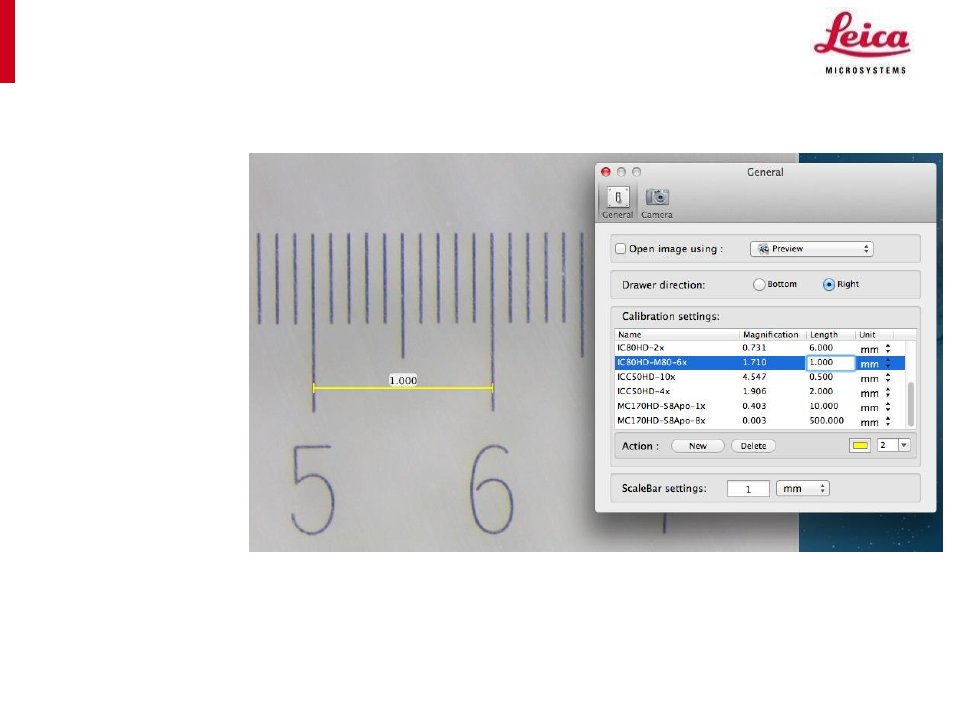

9. Left click with the
mouse into the
corresponding Length
value, and type in the
distance value you
want to measure on
the live image.
10. Note the distance
line that appears on
the live image when
you click on the
lenght value. Drag
both ends of the
distance line to the
corresponding marks
the ruler.
11. Change the color, thickness and
measuring unit (mm or inch) of the distance
line if needed.
