REPOSITION STABILIZER CYLINDERS BEFORE
REMOVING BACKHOE FROM SHIPPING PALLET
Cylinder ports must be pointing upward and hoses routed above the cylinder to main-
frame pivot pin connection.

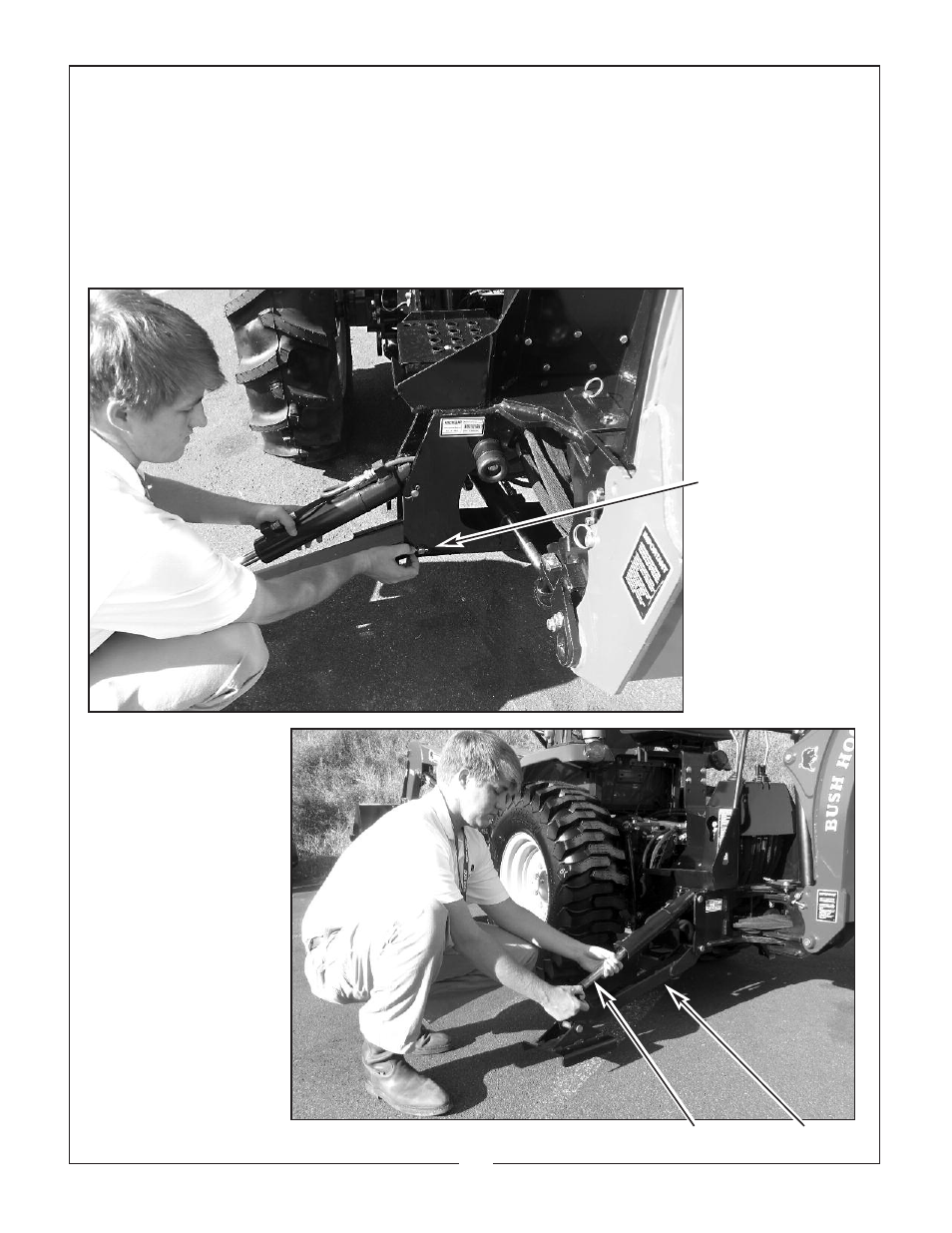

Backhoe is shipped palletized from factory. Remove stabilizers and fasteners from pallet. Position stabilizer
between mounting lugs and pin into place. Cut plastic ties from rod ends of hydraulic cylinders, swing down
and pull rod end out to align with stabilizer mounting lugs. Pin into place with provided fasteners.
Stabilizer Hydraulic Cylinder Rod
Pinning Stabilizer
Into Place
