JKA - SPECIFICATIONS

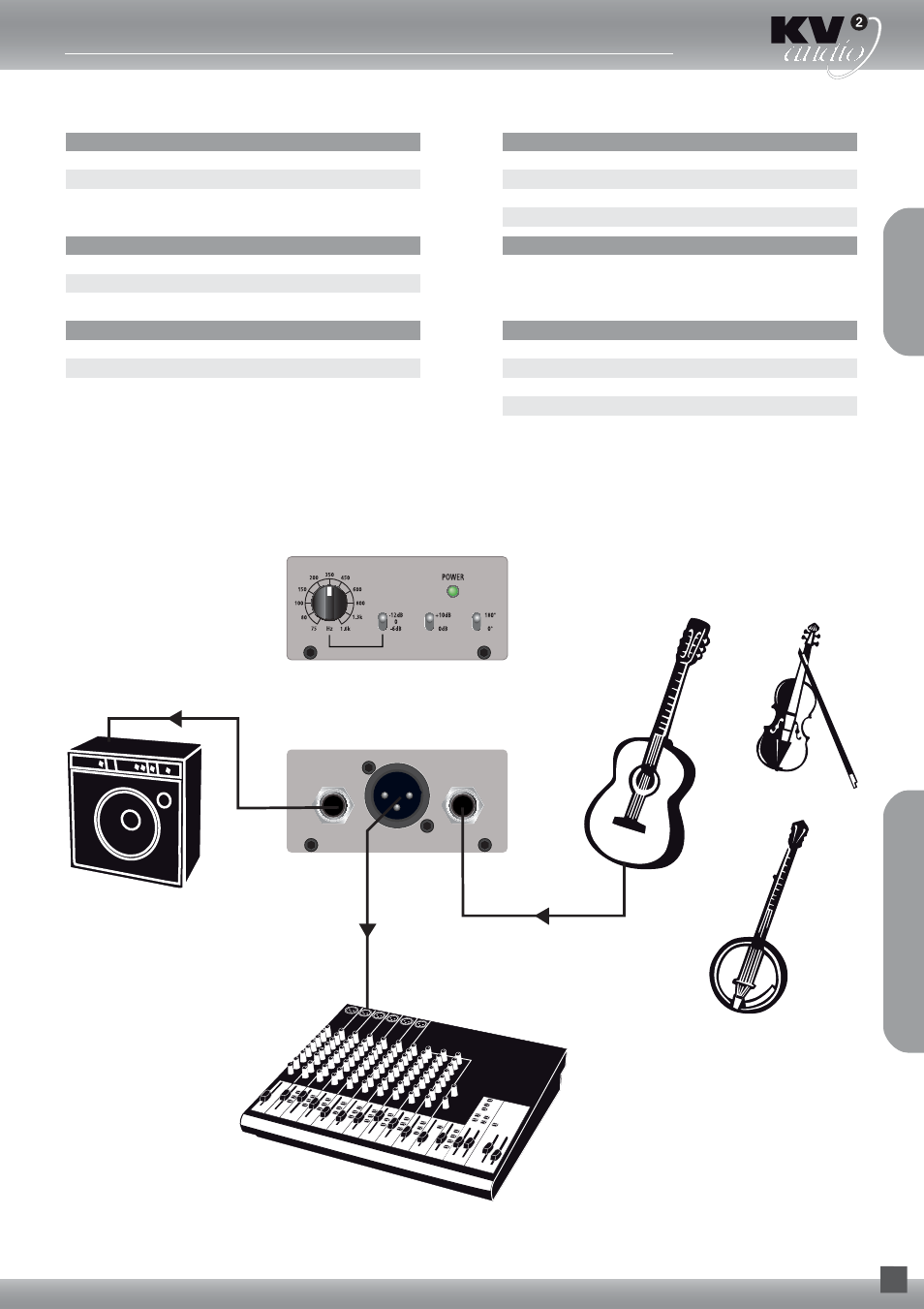

JKA - ACOUSTIC INSTRUMENT SETUP EXAMPLE
JKA - FRONT PANEL
JKA - REAR PANEL
System Acoustic Perfomance Features
-1dB Response 10Hz ÷ 40kHz Gain 0/ +10dB
Dynamic Range >130dB Phase 0° / 180°
Total Harmonic Distortion <0.03% Indicators Power-ON LED
Notch Filter 75 ÷ 1650Hz (0, -6, -12dB)
Signal Input Power
Input Channels 1/4" Jack Phantom Power 48÷56V / 8mA
Input Impedance 1MΩ
Max. Input Voltage 2,5V / 7V peak
Signal Output Physical Dimensions
Output channels XLR (line) , 1/4" Jack Height 40mm (1.57")
Output Impedance 50Ω(line) / 600Ω Width 80mm (3.15")
Depth 131mm (5.16")
Weight 600g (1.32lbs)
MIXING CONSOLE
ON STAGE STEREO
INSTRUMENT AMPLIFIER
