JK
T

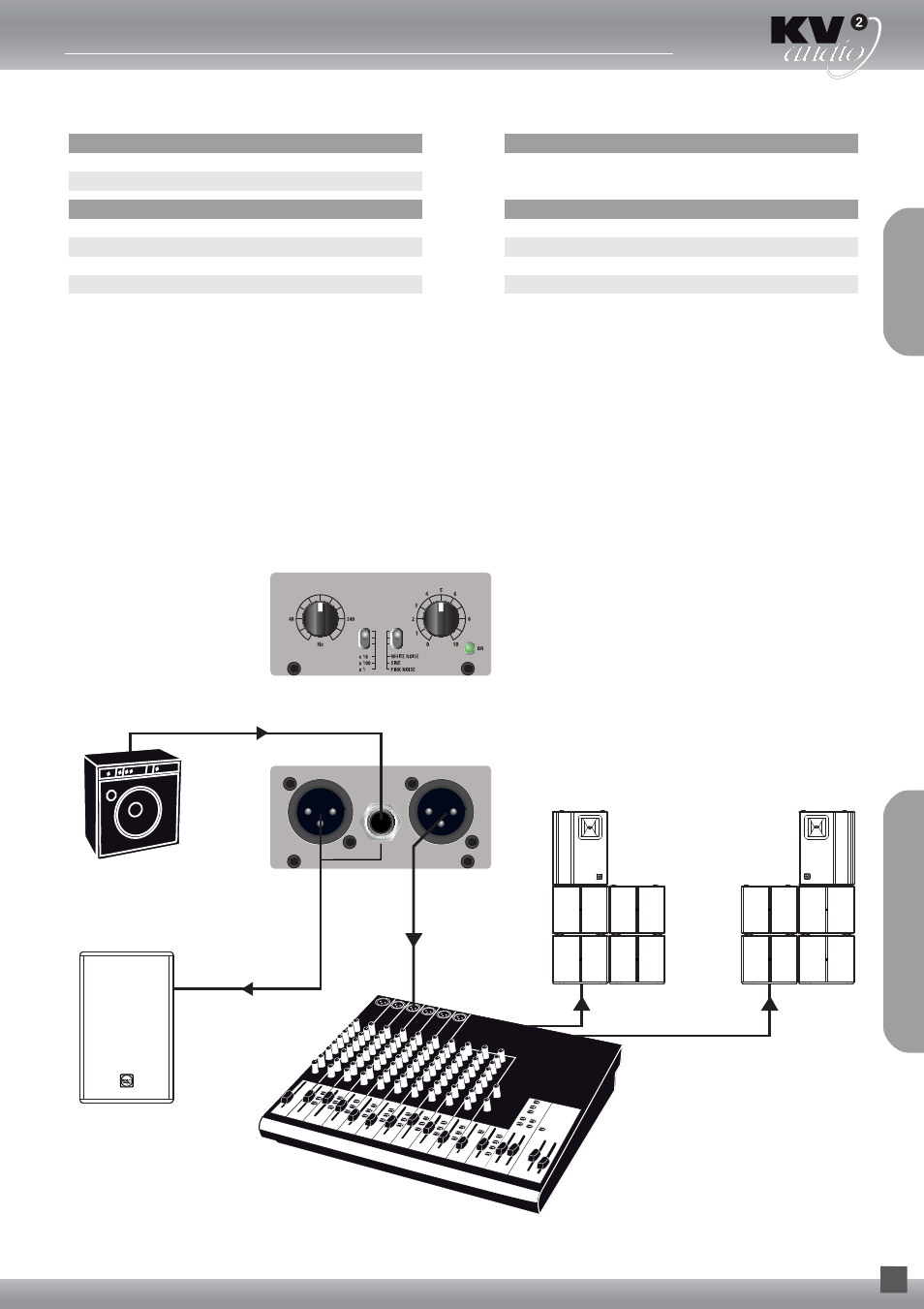

JKT Connection
Connection
13
OUTPUT
PHANTOM IN
OUTPUT
LEVEL
7
9
FREQ
100
60
20
30
120
150
180
280
300
JKT - SPECIFICATIONS
JKT - TONE GENERATOR, PA TUNING & EQUIPMENT TESTING
JKT - FRONT PANEL
JKT - REAR PANEL
Signal Output
Power
Output channels
Jack 1/4", 2x XLR
Phantom Power
48÷56V / 8mA
Output Impedance
50Ω (line) / 600Ω (mon.)
Features
Physical Dimensions
Output Level control
-∞ ÷ 0dB
Height
40mm (1.57")
Indicators
Power-ON LED
Width
80mm (3.15")
Tone generator
20Hz ÷ 30kHz
Depth
131mm (5.16")
White noise generator
YES
Weight
630g (1.39lbs)
Pink noise generator
YES
INSTRUMENT AMPLIFIER
TEST
MIXING CONSOLE
PA SYSTEM
ACTIVE SPEAKER
CHECK
