KV2 Audio JKP - Manual (Page 11)

GND
RC
GND
LIFT
LINE OUT MONITOR OUT
PARALLEL INPUT
PHANTOM
THROUGH
JKP
JKP Connection
Connection
11
JKP - FRONT PANEL
JKP - REAR PANEL
FOH - MIXING CONSOLE MICROPHONE SPLIT
MIXING CONSOLE
PHANTOM THROUGH
RATIO 1:4
JKP - SPECIFICATIONS

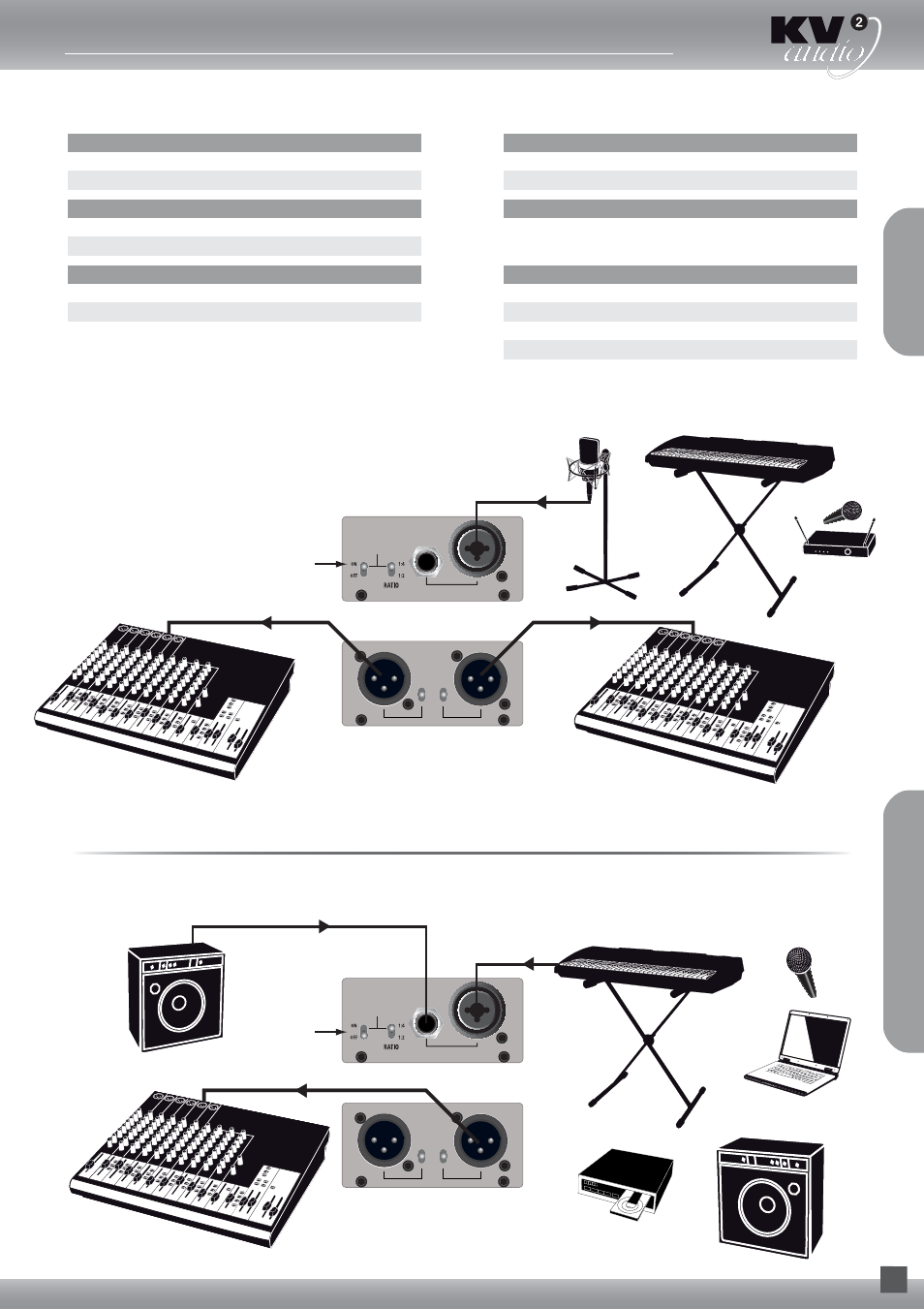

JKP - CONDENSER MIC SETUP EXAMPLE
JK1 - PARALLEL INPUTS SETUP EXAMPLE
GND
RC
GND
LIFT
LINE OUT MONITOR OUT
PARALLEL INPUT
PHANTOM
THROUGH
JKP - FRONT PANEL
JKP - REAR PANEL
System Acoustic Perfomance Features
-1dB Response 20Hz ÷ 30kHz Gain Ration 1:2 / 1:4
Total Harmonic Distortion <0.0005% Ground Mode GND, Lift, RC
Signal Input Power
Input Channels 1/4" Jack, XLR// 1/4" Jack Phantom Power Phantom through
Input Impedance 1MΩ
Signal Output Physical Dimensions
Output channels XLR (line) , XLR (monitor) Height 40mm (1.57")
Output Impedance 100Ω (line) / 600Ω (mon.) Width 80mm (3.15")
Depth 131mm (5.16")
Weight 590g (1.3lbs)
MIXING CONSOLE
ON STAGE
INSTRUMENT AMPLIFIER
PHANTOM
OFF
