KV2 Audio JKP - Manual (Page 5)

JK1
JK1 Connection
Connection
5
JK1 - SPECIFICATIONS

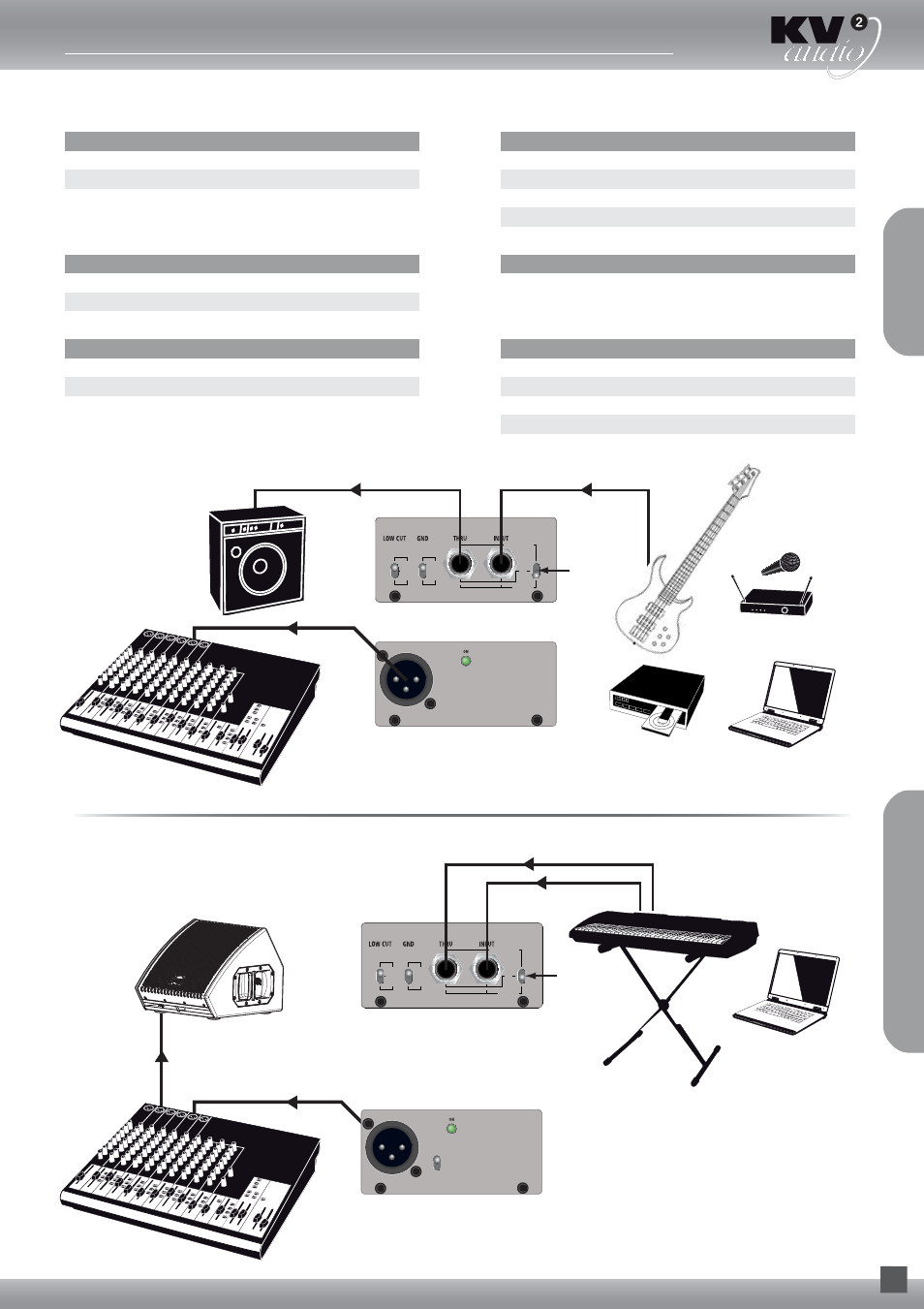

JK1 - PARALLEL INPUTS SETUP EXAMPLE
JK1 - MIX INPUTS SETUP EXAMPLE
LINE OUT 50Ω
PHANTOM IN
20Hz
80Hz
160Hz LIFT
GND
MIX
PARALLEL
-15dB PARALLEL
JK1 - FRONT PANEL
JK1 - REAR PANEL
PARALLEL
ON STAGE
INSTRUMENT AMPLIFIER
MIXING CONSOLE
System Acoustic Perfomance Features
-1dB Response 20Hz ÷ 100kHz Gain 0 / -15dB
Dynamic Range >130dB Phase 0° / 180°
Total Harmonic Distortion <0.002% High Pass Filter 20, 80, 160Hz
Indicators Power-ON LED
Ground Mode GND / Lift
Signal Input Power
Input Channels 2x 1/4" Jack Phantom Power 48÷56V / 8mA
Input Impedance 1MΩ / 5KΩ
Max. Input voltage 5V / 20V peak
Signal Output Physical Dimensions
Output channels XLR (line) Height 40mm (1.57")
Output Impedance 50Ω Width 80mm (3.15")
Depth 131mm (5.16")
Weight 610g (1.34lbs)
JK1 - FRONT PANEL
JK1 - REAR PANEL
20Hz
80Hz
160Hz LIFT
GND
MIX
PARALLEL
-15dB PARALLEL
MIX
MIXING CONSOLE
LINE OUT 50Ω
PHANTOM IN
0º
180º
PHASE
ON STAGE
MONITOR
LEFT
RIGHT
