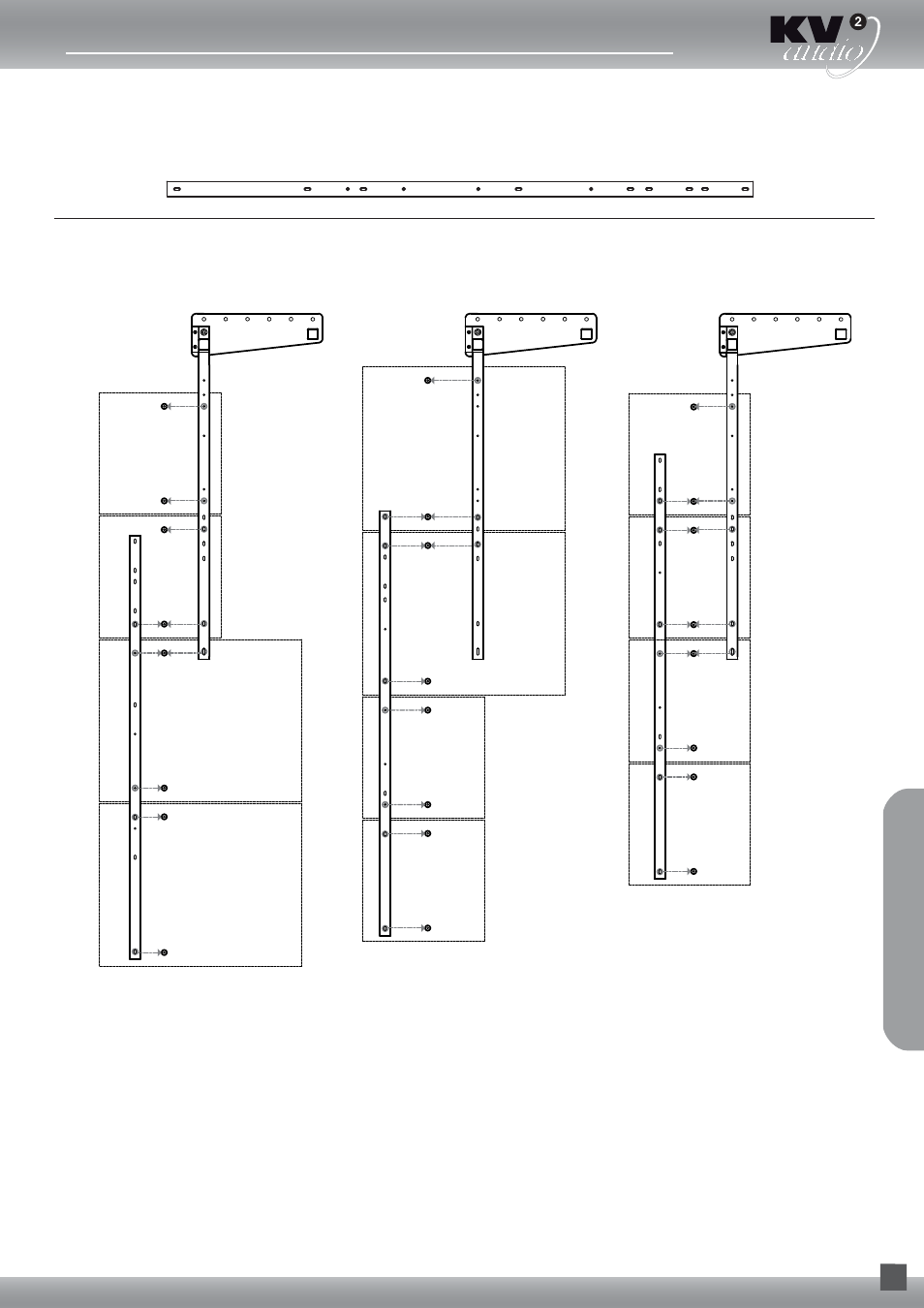

Configurations with Lower Arms
Configurations
9
When you use the pins D6 on the speaker system, remove bolts M10x20 and instead install enclosed
hollow screws M10x25. Maximum load 500kg.
FB - 0002 ARMS (KVV 987 192), LOWER ARM SLING
69kg(52kg)
ES2.5(ES1.8)
34kg
ES1.0
34kg
ES1.0
69kg(52kg)
ES2.5(ES1.8)
69kg(52kg)
ES2.5(ES1.8)
69kg(52kg)
ES2.5(ES1.8)
34kg
ES1.0
34kg
ES1.0
1x FB0002 ARMS per side
-16x D6 QUICK RELEASE PIN
(per side)
- 4x D12.6 QUICK RELEASE PIN
(per side)
28kg
ES1.5
28kg
ES1.5
34kg
ES1.0
34kg
ES1.0
