Configurations with basic bracket, Es f lybar, Configurations 8 – KV2 Audio FB-0002 Rigging User Manual
Page 8

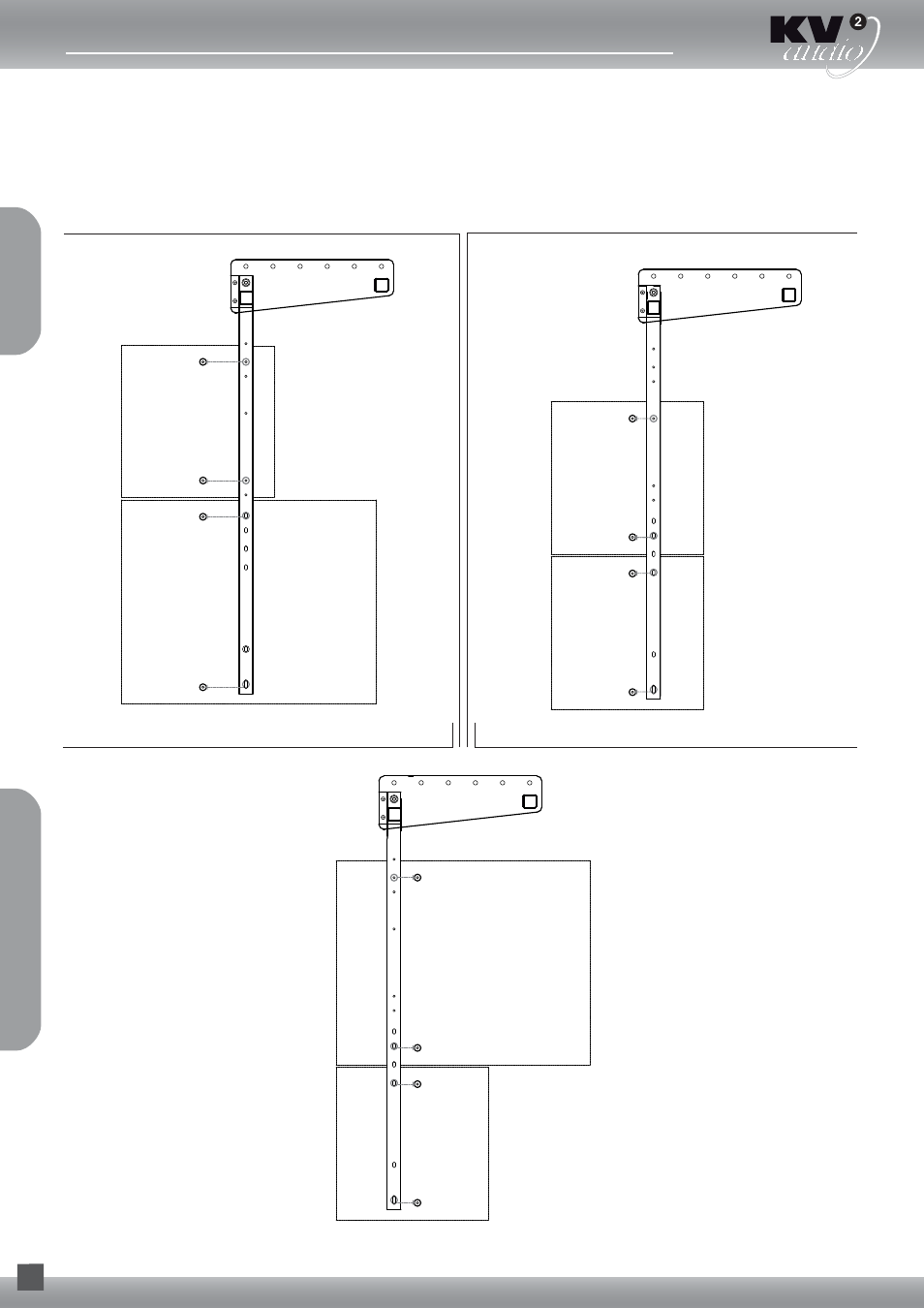

When you use the pins D6 on the speaker system, remove bolts M10x20 and instead install enclosed
hollow screws M10x25. Maximum load 500kg.
34kg
ES1.0
34kg
ES1.0
ES2.5(ES1.8)
69kg(52kg)
- 8x D6
QUICK RELEASE PIN
(per side)
- 4x D12.6
QUICK RELEASE PIN
(per side)
28kg
ES1.5
ES2.5(ES1.8)
69kg(52kg)
34kg
ES1.0
ES F
lybar
Configurations with Basic Bracket
Configurations
8
