The ES FLYBAR is a complete system to facilitate the safe suspension of multiple components of the
ES series.
Consisting of individual parts that form the basis of attaching the ES Loudspeaker modules to the
FLYBAR, these are identifiable and described below as:

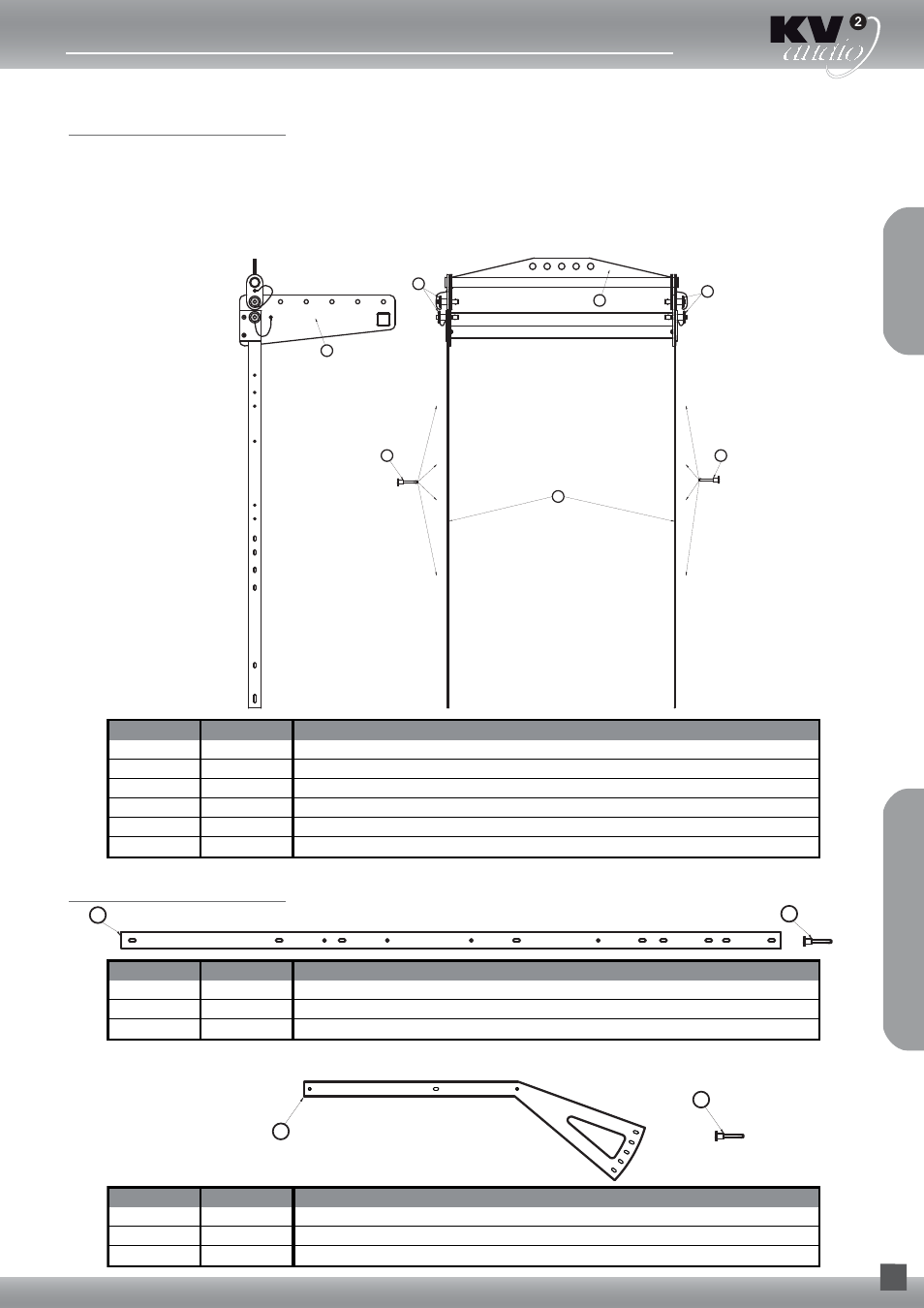

Parts & Components
Additional options
2
4
1
4
3
5 5
FB - 0002 ARMS (KVV 987 192)
FLY BAR - 0002 (KVV 987 191)
2 1
ES F
lybar
Parts & Components
Parts & Comnponents
5
ES DOWNFILL BRACKET (KVV 987 301)
2
1
ITEM QTY DESCRIPTION
1 1 PICKPOINT Hanging Arm
2 1 MAIN FRAME
3 2 STEEL SUPPORT MOUNT ARM
4 4 D12.6 QUICK RELEASE PIN
5 8 D6 QUICK RELEASE PIN
6 8 M10 x 25 HOLLOW SCREWS
ITEM QTY DESCRIPTION
1 2 FB-0002 STEEL SUPPORT EXTENSION ARM
2 8 D6 QUICK RELEASE PIN
3 8 M10 x 25 HOLLOW SCREWS
ITEM QTY DESCRIPTION
1 2 ES DOWNFILL BRACKET
2 8 D6 QUICK RELEASE PIN
3 8 M10 x 25 HOLLOW SCREWS
