Kuryakyn 5019 ENGINE GUARD MOUNT DRIVING LIGHTS - Manual (Page 5)

PAGE
5
It is the installer’s responsibility to ensure that all of the fasteners (including
pre-assembled) are tightened before operation of the motorcycle.
Küryakyn will not provide warranty coverage on products or
components lost due to improper installation or lack of maintenance.
Periodic inspection and maintenance are required on all fasteners.

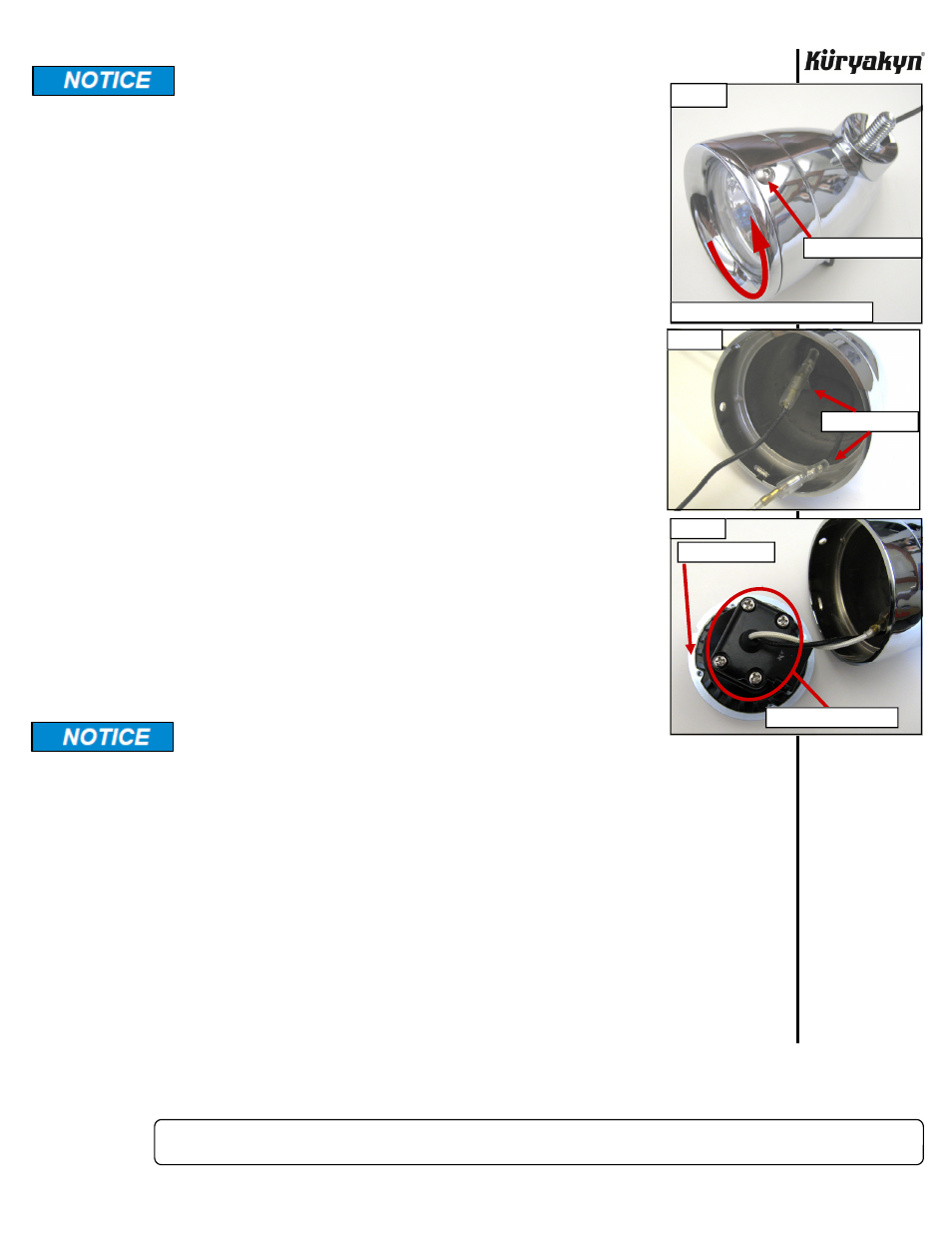

REPLACING THE LIGHT BULB
STEP 1
As shown in PIC 12, remove the Button Head Cap Screw located at the bottom of
the light housing.
STEP 2
Remove the light bezel by twisting the bezel counter clockwise and pulling the
bezel outward.
STEP 3
Remove the rubber inner seal from the chrome light housing. The glass light
housing should now be free.
NOTE:
Please note the orientation of the locating ring. This will greatly help
when reassembling the lights. PIC 14.
STEP 4 Pull the glass housing out away from the chrome housing and disconnect the
wires. PIC 13
STEP 5 As shown in PIC 14, remove the 4 screws to gain access to the light bulb. Pull the
light bulb from the mount with the white wire attached.
STEP 6 Take the new light and insert the white wire through the mount from the front
side. (The wire should fit through the rubber boot on the backside of the mount).
Do not handle the glass portion of the new bulb with your bare hands. Oil
from your fingers will stay on the bulb and create a hot spot, shortening
the life of the bulb. If you do touch the bulb, clean it with an ammonia
based cleaner, such as window cleaner or with alcohol before installation.
STEP 7
Reassemble the glass housing and the chrome housing in the reverse order they
were disassembled.
It is the installer’s responsibility to ensure that all of the fasteners
(including pre-assembled) are tightened before operation of the
motorcycle. Küryakyn will not provide warranty coverage on products or
components lost due to improper installation or lack of maintenance. Periodic
inspection and maintenance are required on all fasteners.
Ride On!
ENGINE GUARD MOUNT DRIVING LIGHTS
INSTALLATION
PIC 12
REMOVE THIS SCREW
ROTATE THIS DIRECTION TO REMOVE
THESE UNPLUG
PIC 13
REMOVE THESE SCREWS
LOCATING RING
PIC 14
