Koolance VID-398 - Manual (Page 2)

3

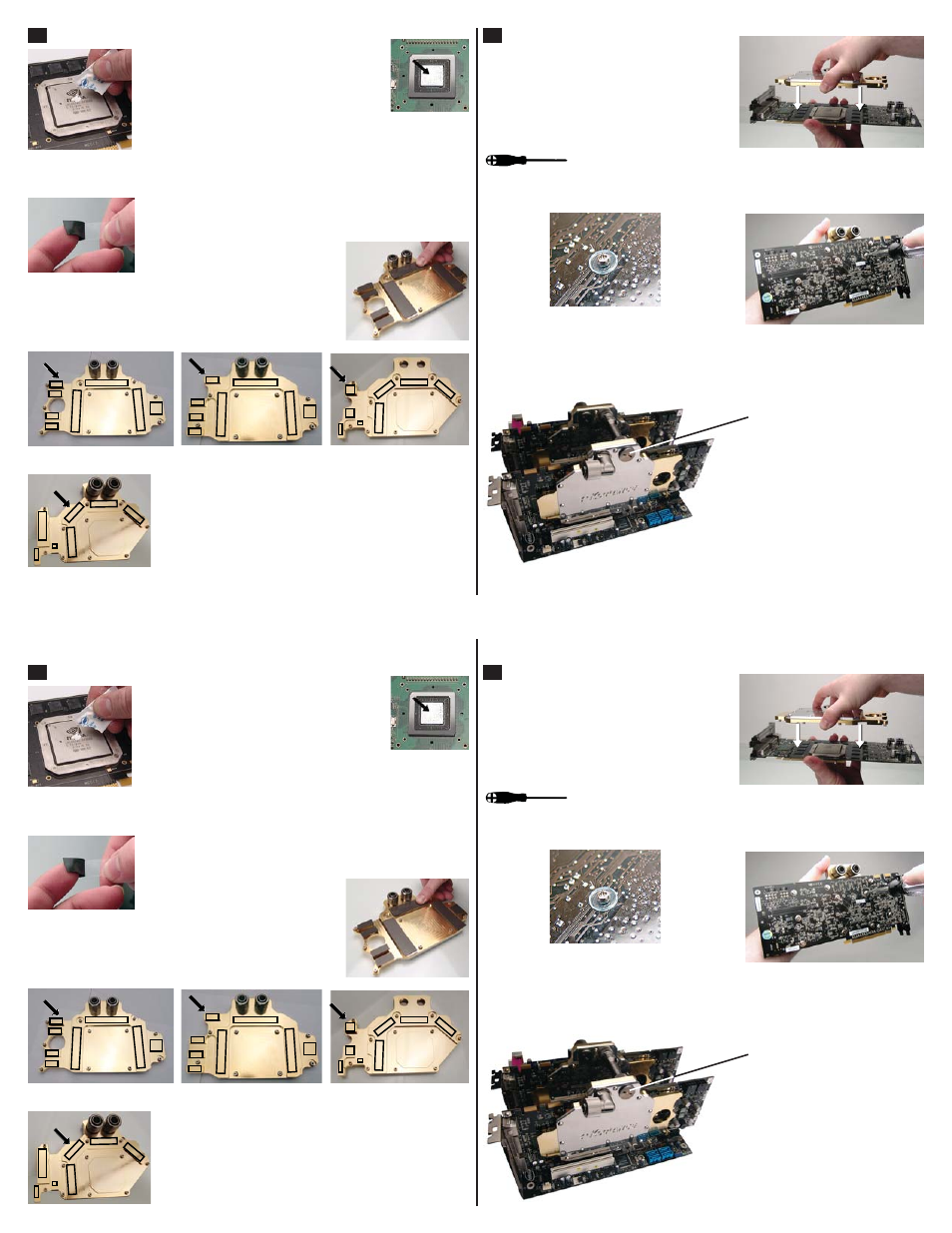

Place the Koolance block over the video card
and tighten each spring-screw on the reverse
side of the card.
Using the Koolance-supplied screws and plastic insulating washers, tighten each
screw on the reverse side of the card.
Koolance VID coolers include redundant G1/4 threading on both sides. This means
the input/output nozzles can be placed on either side of the cooler.
Two G1/4 “caps” are included
with the VID coolers which can
be placed opposite the desired
nozzle locations.
Thermal paste is only required on the
main GPU. The other areas will utilize the
included heat transfer pads.
Spread thermal compound on the GPU
thinly and evenly using the included paste
packet, or a piece of thick paper (such as
a business card). Thermal paste should not
be placed on the surrounding metal support frame or small
surface soldered components.
2
Heat transfer pads have plastic fi lm on one
or both sides that must be removed before
application.
Place the 8 heat transfer pads on each additional area
cooled by the Koolance liquid block. This includes 3 rows
of memory, 4 power/VReg areas, and 1 PCI-Express
controller chip.
8800GTX/Ultra Thermal Pad Areas 8800GTS 320MB / 640MB
Thermal Pad Areas
8800GT Thermal Pad Areas
8800GT Thermal
Paste Area
8800GTS/GTX/Ultra
Thermal Paste Area
Koolance-Supplied Screw and
Insulating Washer
8800GTS 512MB
Thermal Pad Areas
3
Place the Koolance block over the video card
and tighten each spring-screw on the reverse
side of the card.
Using the Koolance-supplied screws and plastic insulating washers, tighten each
screw on the reverse side of the card.
Koolance VID coolers include redundant G1/4 threading on both sides. This means
the input/output nozzles can be placed on either side of the cooler.
Two G1/4 “caps” are included
with the VID coolers which can
be placed opposite the desired
nozzle locations.
Thermal paste is only required on the
main GPU. The other areas will utilize the
included heat transfer pads.
Spread thermal compound on the GPU
thinly and evenly using the included paste
packet, or a piece of thick paper (such as
a business card). Thermal paste should not
be placed on the surrounding metal support frame or small
surface soldered components.
2
Heat transfer pads have plastic fi lm on one
or both sides that must be removed before
application.
Place the 8 heat transfer pads on each additional area
cooled by the Koolance liquid block. This includes 3 rows
of memory, 4 power/VReg areas, and 1 PCI-Express
controller chip.
8800GTX/Ultra Thermal Pad Areas 8800GTS 320MB / 640MB
Thermal Pad Areas
8800GT Thermal Pad Areas
8800GT Thermal
Paste Area
8800GTS/GTX/Ultra
Thermal Paste Area
Koolance-Supplied Screw and
Insulating Washer
8800GTS 512MB
Thermal Pad Areas
