4 5 User Manual
4

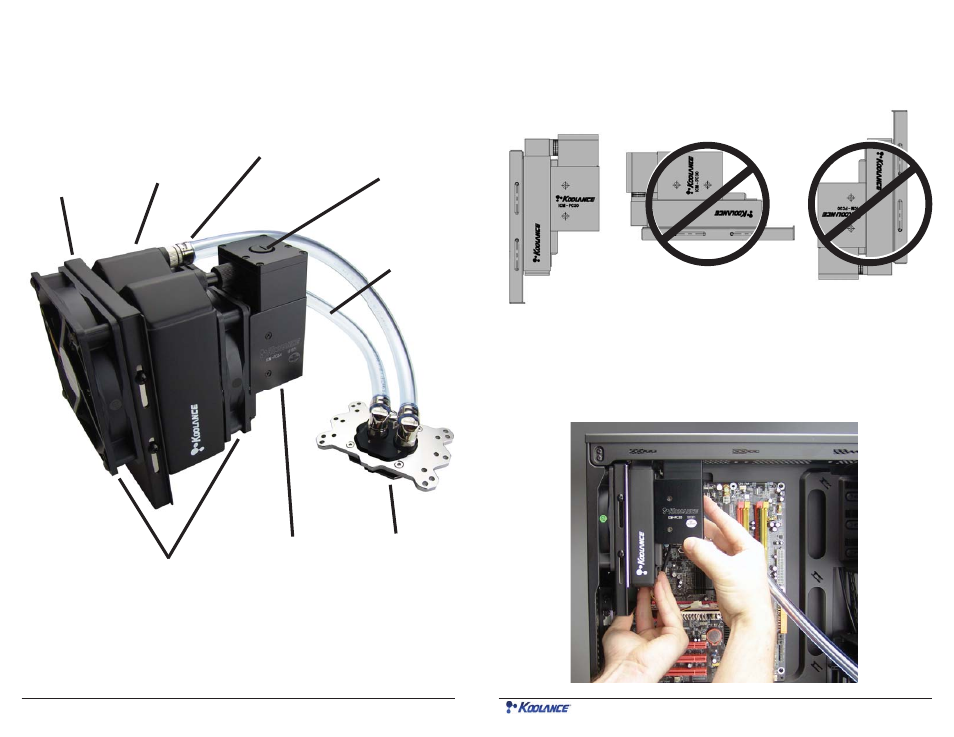

Unit Diagram Positioning the Cooling Unit
The cooling unit must remain upright during operation. The pump will not operate
properly if mounted in other directions and might burn-out.
OK! NO! NO!
Pump
Adjustable
Bracket
Radiator (Size
depends on
ICM Model)
Radiator Fans
(Quantity depends
on ICM Model)
Reservoir and
Fill Port
Radiator Inlet
Pump Outlet
CPU Water Block
(Type depends on
ICM Model)
Test-fit the cooling unit by holding it within the chassis in its mounting location.
Check for any physical conflicts from the computer chassis, tall motherboard heat
sinks, video cards, or other components which might prevent the unit from fitting
properly.
