Kifco T40x1320 360,000 - 380,539 Parts Manual User Manual
Page 41
Page 41

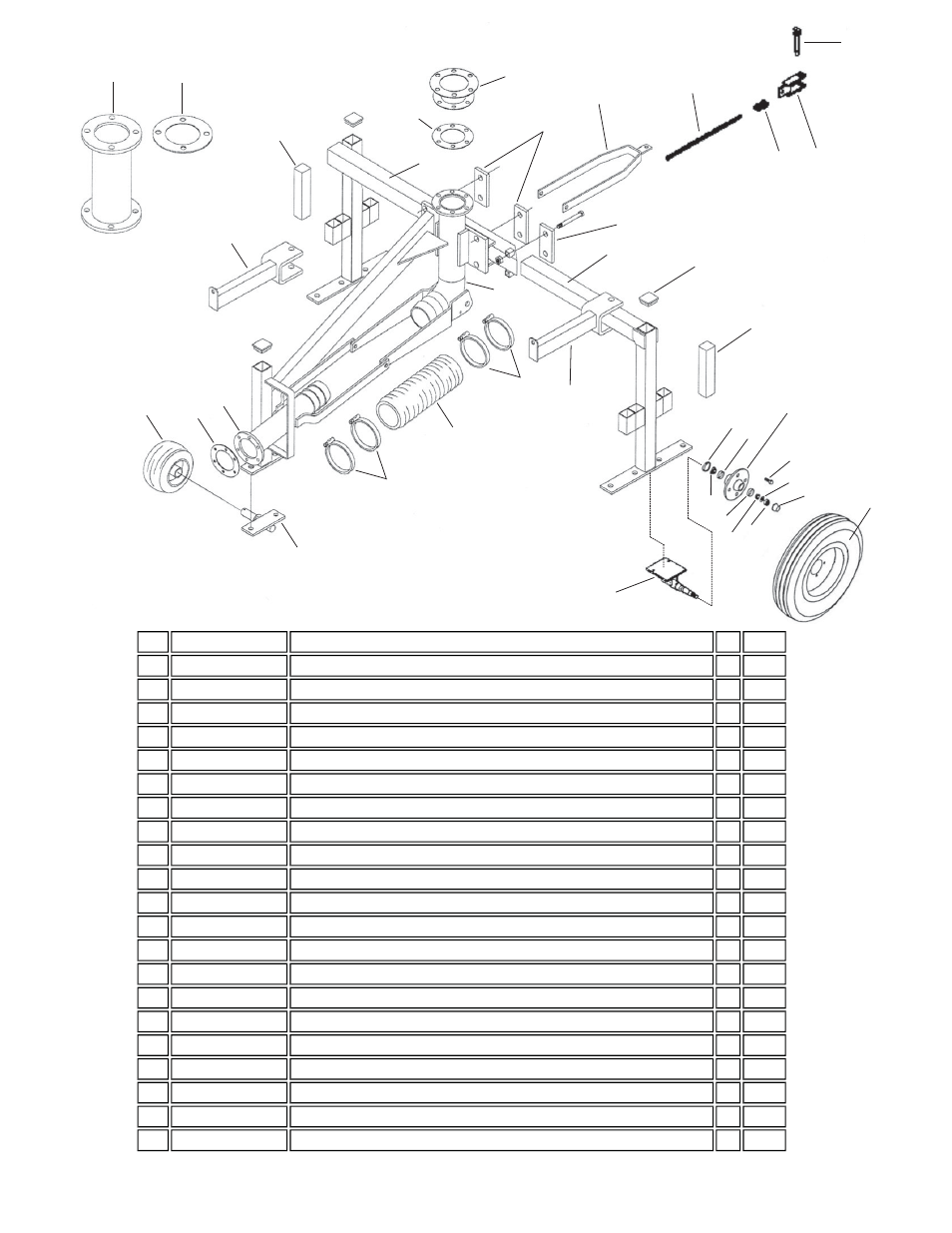

Sprinkler Cart Assembly AR6, AR7
7
18
19
4
20
13
12
10
6
5
1
6
23
24
25
26
27
28
29
30
32
31
33
7
14
4
21
8
9
11
15
16
17
3
34
18
2
22
1
1
19
584-0643-0
Extension
1
20a
022-1001-0
Gun Cart Body Front for 34" leg cart
1
20b
022-1001-0
Gun Cart Body Front for 40.5" leg cart
1
21
558-3281-0
Pin, Hitch 3/4X3 T Head
1
22
500-0282-0
Spindle Rear Guncart
2
23
588-0356-5
Seal, Grease CR12437
2
24
515-0939-0
BEARING,TIMKEN LM67048
2
25
510-0940-0
RACE,LM67010
2
26
589-0065-0
HUB,WITH CUPS ONLY W633
2
27
589-0063-0
Lug Bolt
8
28
510-0941-0
RACE,OUTER LM11910
2
29
515-0942-0
BEARING,TIMKEN LM11949
2
30
553-0628-0
BUSH,MACH 1-1/2X1X18GA
2
31
551-1602-0
NUT,SLOTTED NF 1"
2
32
589-0062-0
CAP,HUB WILT 909911
2
33a 227-0256-0
Tire,6.70X15 4 PLY
2
33b 588-0254-1
Wheel, 15 X 4-1/2 4Bolt 5BCD GLV.
2
33c 227-0256-1
Tube, Inner 5:90 & 6.70X15
2
33d 502-0174-0
Wheel, comp. (#33a,33b,33c)
2
34 599-0182-0
Gun Adptr. To Nelson
1
17
022-0998-0
Plate, Clamp Small
18
020-0018-5
Gasket
