Kifco T40x1320 360,000 - 380,539 Parts Manual - Manual (Page 22)

Page 22

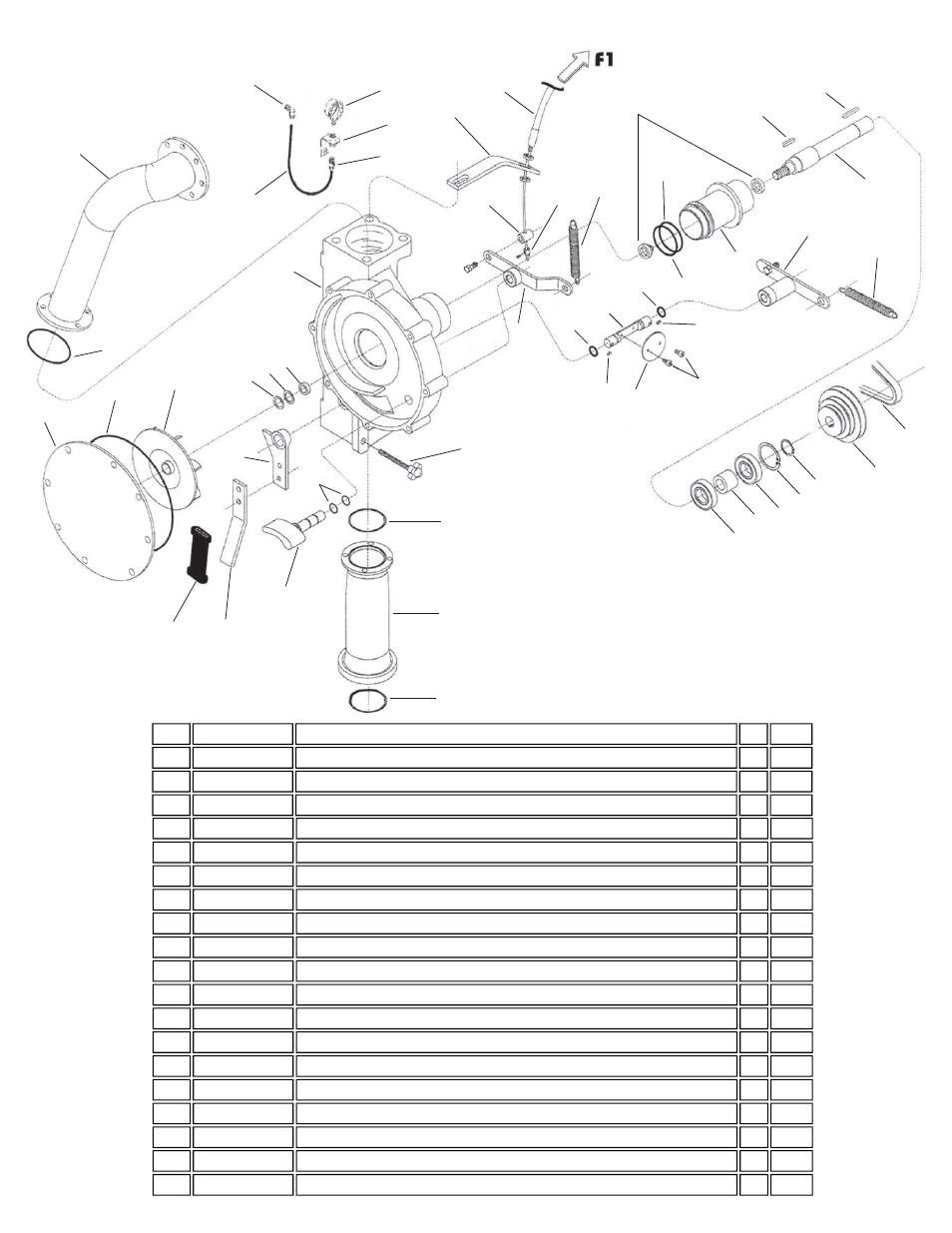

Turbine Assembly (AR5-AR6-AR7)
39
43
1
2
3
55 54
31
30
32
43
51
48
4
5
6
7
33
41
40
44
45
42
37
38
58 59
23
36
25
25
29
26
26
27
28
24
23
8
11
10
9
12
13
14
15
16
17
18
19
21
22
16 022-0552-1 Spacer 1.795 Long 1
17 022-0167-1 Bearing 5204 2RS 1
18 022-0324-0 Stop Ring 1
19 022-0323-0 Stop Ring 1
21 022-0592-0 Plly, 100mm, 75mm, 53mm 3 Step 1
22a 022-1171-0 Belt, A70 (AR5/5+, Comer gearbox) 1
22b 022-1211-0 Belt, A71 (AR6, Comer gearbox) 1
22c 022-0555-3 Belt, A73 (AR7, Comer gearbox) 1
22d 584-0116-1 Belt, A57 (AR5/5+/6, Bima Gearbox) 1
22e 502-0176-1 Belt, A60 (AR7, Bima Gearbox) 1
23 022-0746-0 Spring 1
24 022-1377-0 By-Pass Lever 2
25 022-0559-0 O-Ring 120 x 15.54 x 2.62 2
26 022-0319-0 Key, 6mm x 6mm x 12mm 2
27 Allen head Cap Screw 6mm x 16mm 2
28 022-0562-0 By-Pass Disc 1
29 022-0563-1 By-Pass Shaft 1
30 022-0558-0 Lever 1
31 022-0566-0 Regulator Flap with Pin 1
32 022-0331-0 O-Ring, Dia. 8.73 x 1.78 2
