Kifco T40x1320 360,000 - 380,539 Parts Manual - Manual (Page 2)

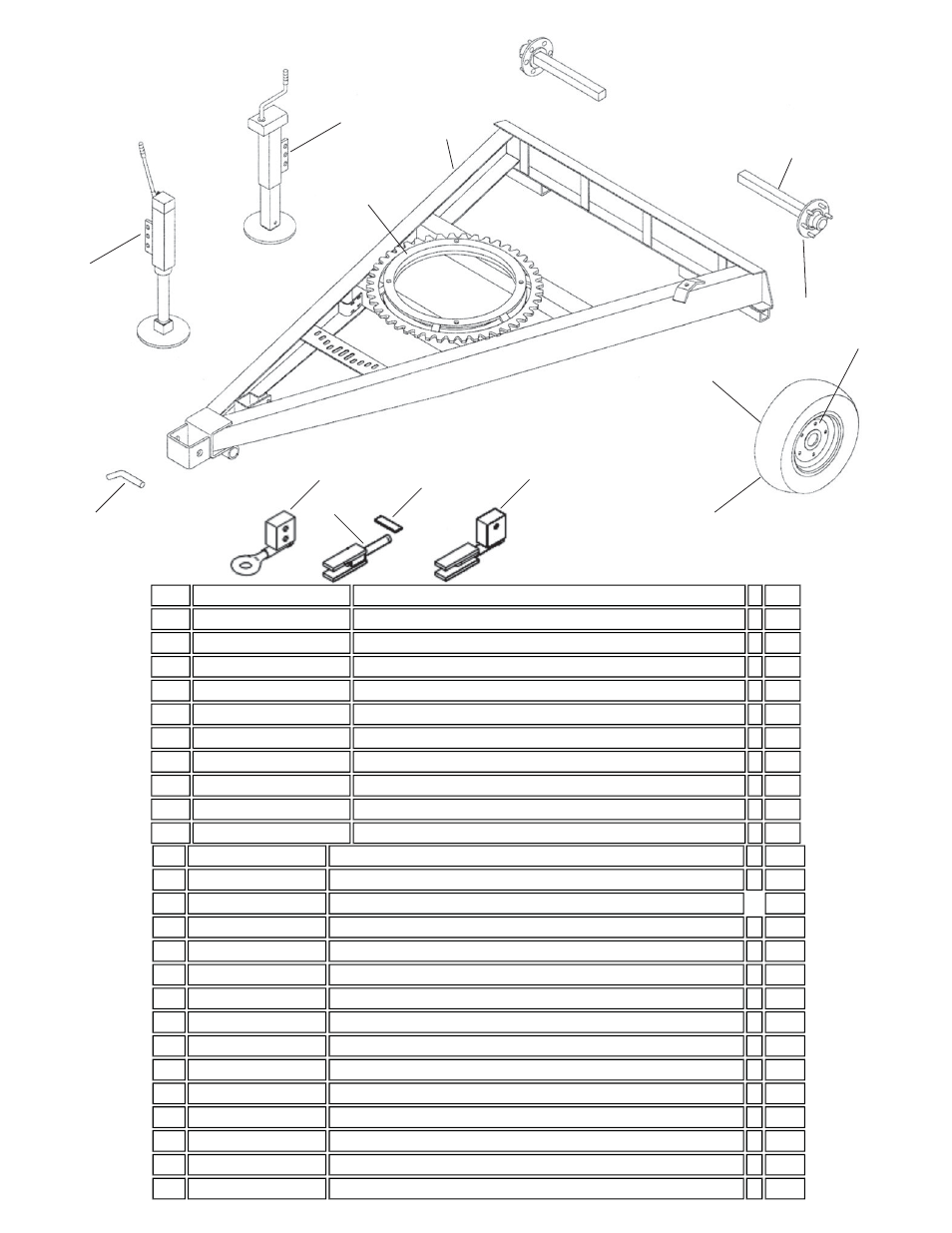

Running Gear Assembly
Running Gear Assembly
No. Part Number Description Qty.
1A 022-1063-0 Frame AR4 1
1B 022-1178-0 Frame AR5 1
1C 022-1200-0 Frame AR6 1
4D 022-0864-0 Frame AR7 1
2 022-1064-0 Pin 1
3A 022-1065-0 Hitch, Ring 1
3B 501-0274-0 Hitch, Clevis ( AR4) 1
3C 501-0382-1 Hitch, Clevis (AR5) 1
3D 501-0382-2 Hitch, Clevis (AR6-7) 1
4A 020-0040-2 Screwjack ( AR4) (Not as Shown) 1
4B 022-0828-0 Screwjack ( AR5-6) 1
4C 022-0867-0 Screwjack (AR7) 1
4D 022-1544-0 Snap Ring,Man/Hydraulic Jack, (not shown) 1
4E 022-1546-1 Knuckle, Foot To Rod - Man/Hyd Jack (not shown) 1
4F 022-1545-0 Spacer, Man/Hydaulic Jack (not shown) 1
6 526-5531-0 Tire 11L015 12PLy 2
7A 500-0815-1 Spindle (AR4-5) 2
7B 500-0815-0 Spindle (AR6-7) 1
8A 501-0079-0 Hub, 6 Bolt (888) (AR4-5) 2
8B 226-1598-2 Hub Assy,6 Bolt W803 (AR6-7) 2
9 022-1113-0 Turntable Bearing 1
10 526-5138-1 Wheel 15 x 10 6Bolt 6"BCD 2
11 500-0641-0 Tube, Inner 11L x 15 2
12 501-0359-0 Tab, Hitch AR4 Only 1
Page 2
4A
4B
4C
3A
3B
12
3C
3D
9
1
7
8
10
11
6 2
