Kifco T40x1320 360,000 - 380,539 Parts Manual - Manual (Page 11)

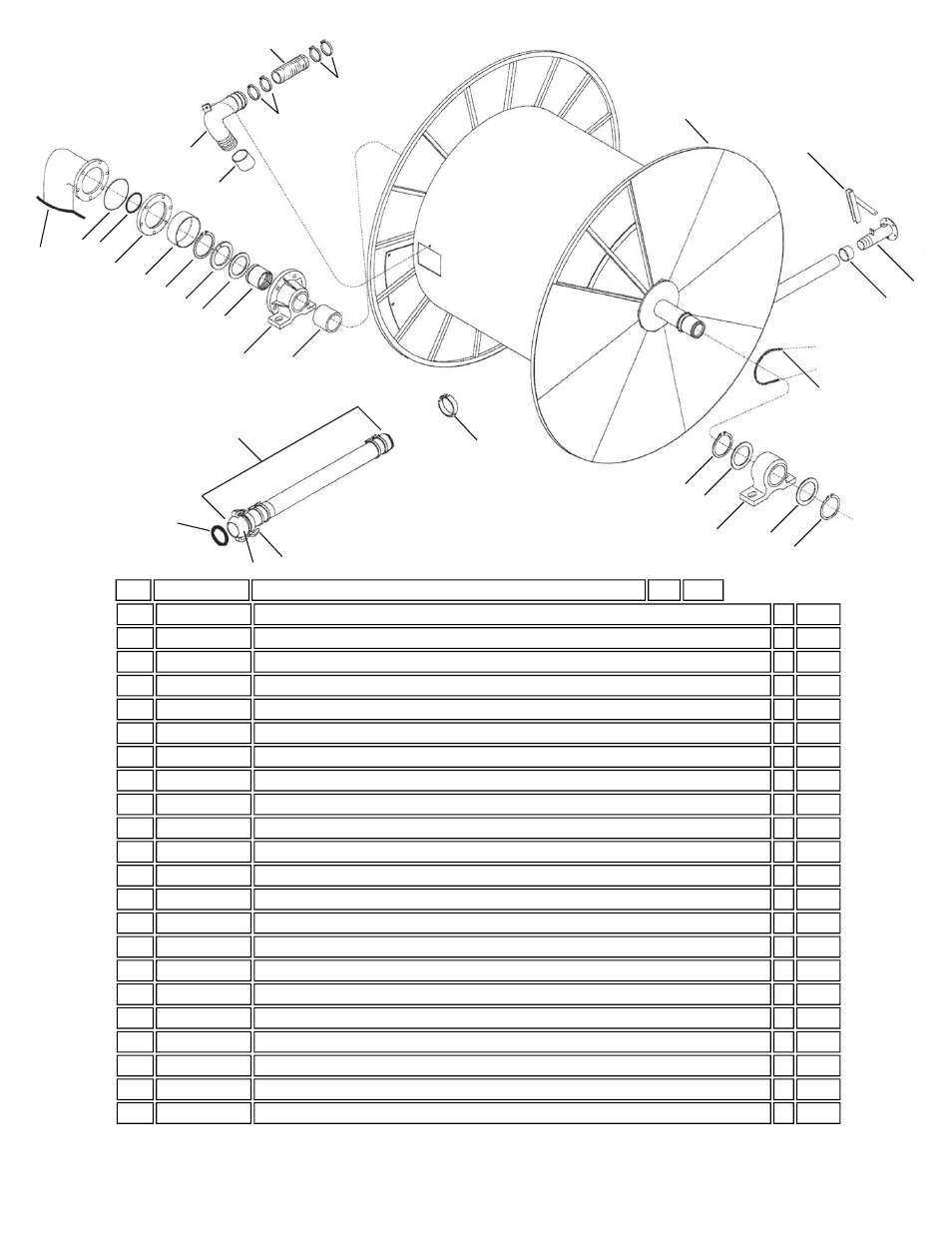

Spool Assembly
26A 022-1084-1 Elbow, 75mm (AR4) 1
26B 022-1081-0 Elbow, 82mm (AR4) 1
26C 022-1081-2 Elbow, 90mm (AR4) 1
26D 022-1062-3 Elbow, 82mm (AR5) 1
26E 022-1162-0 Elbow, 90mm (AR5) 1
26F 022-1162-1 Elbow, 100mm (AR5) 1
26G 022-1162-2 Elbow, 110mm (AR5) 1
26H 022-1215-1 Elbow, 90mm (AR6) 1
26I 022-1215-0 Elbow, 110mm (AR6) 1
26J 022-1215-2 Elbow, 120mm (AR6) 1
26K 022-1386-0 Elbow, 100mm (AR7) 1
26L 022-1386-1 Elbow, 110mm (AR7) 1
26M 022-1386-2 Elbow, 120mm (AR7) 1
26N 022-1386-3 Elbow, 135mm (AR7) 1
29A 030-1919-4 Supra Clamp 73mm x 79mm 8
29B 022-0682-0 Clamp, Atlantic 86mm X95mm (AR5) 8
29C 030-1925-8 Supra Clamp 112mm-121mm (AR6) 8
29D 030-1925-8 Supra Clamp 112mm-121mm (AR7) 8
30A 022-0148-1 HOSE, 70X79MM -0,55-4M (21.65") LONG (AR4) 1
30B 022-0031-0 HOSE, 80X98MM -0,6-4M (32.287") LONG (AR5) have to cut length 1
30C 022-1627-1 HOSE 100 X 118 X .55M (21.65") LONG (AR6) 1
30D 022-1627-0 HOSE 100 X 118 X .7M (27.6") LONG (AR7) 1
Page 11
25 022-0861-0 Stop, Bar 1
