Page 21

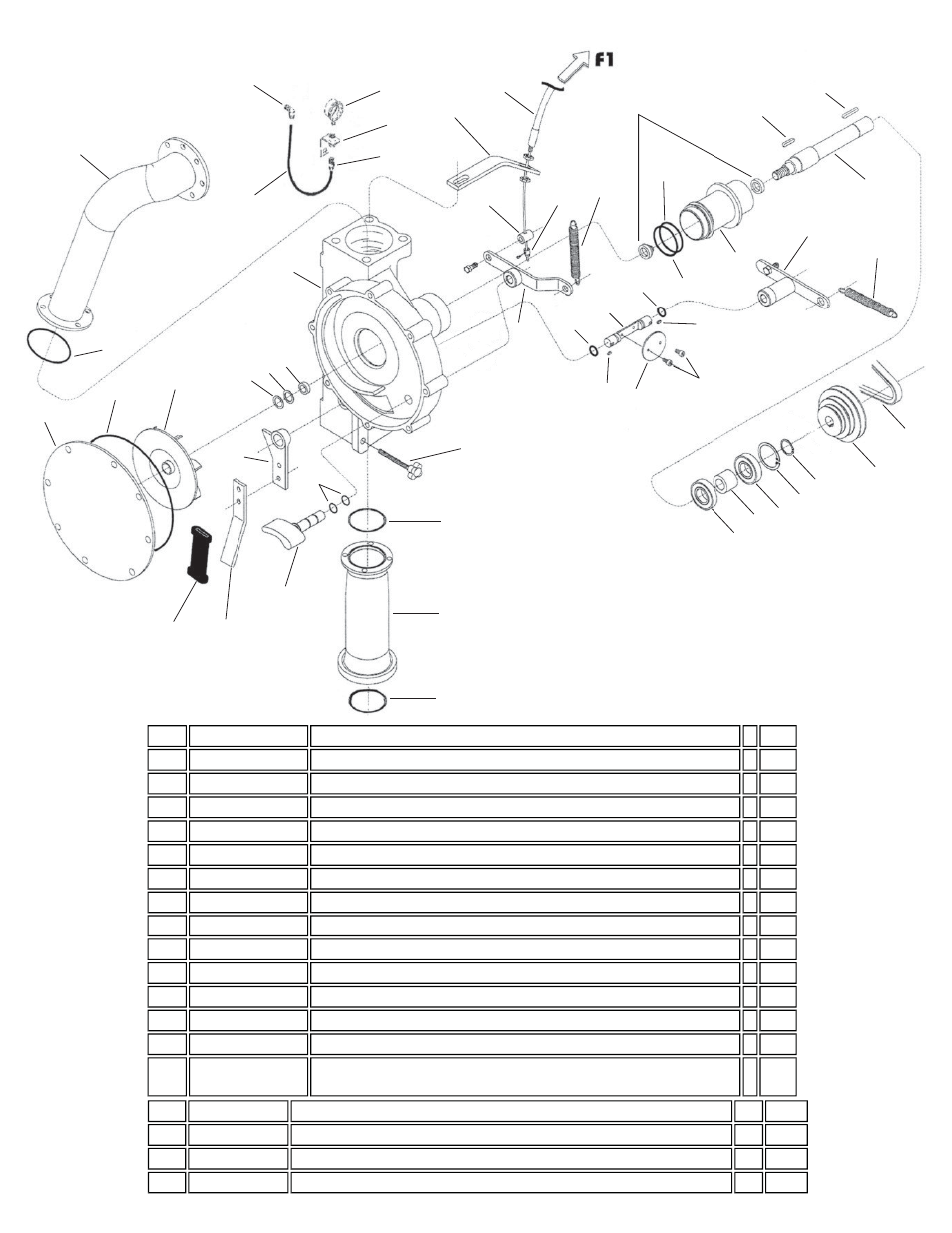

Turbine Assembly (AR5-AR6-AR7)
39
43
1
2
3
55 54
31
30
32
43
51
48
4
5
6
7
33
41
40
44
45
42
37
38
58 59
23
36
25
25
29
26
26
27
28
24
23
8
11
10
9
12
13
14
15
16
17
18
19
21
22
Turbine Assembly
No. Part Number Description Qty.
1 022-0834-0 Cover (AR5-6-7) 1
2 022-0572-0 O-Ring Dia. i286mm x 3.53 (AR5-6-7) 1
3 022-0199-3 Impeller 6.77 OD x .87 Vane Height (AR5-6-7) 1
3a 022-0198-0 NUT,SELF LOCKING M14 X1.5 (not shown) 1
4 022-0543-0 Shim. Mylar, Dia. 16.2mm x 23.8mm x .25mm 6+
5 022-0300-2 Spacer Dia. 25mm x 16mm x 15.5mm 1
6 022-0544-0 Spacer, 20mm x 25mm x 5mm 1
7 022-0302-1 Turbine Body 25/120 (AR5-6-7) 1
8 022-0545-0 Seal 20 x 6 1
9 022-0546-0 O-Ring 1
10 022-0546-1 O-Ring 2.36 ID X .103 C/S 1
11a 022-0548-0 Turbine Hub 1
11b 990-7030-0
KIT, RUNNER OVERHAUL - 25/120, ( contains
#8 through # 19)
1
12 022-0337-0 Key 5 x 10 3
13 022-0550-0 Shaft, Impeller (AR5-6-7) 1
14 022-0551-0 Key 6 x 50 1
15 022-0167-0 Bearing 6204 2RS 1
