Installation
Centrifan TM PE Personal Evaporator 2-3
The Centrifan
TM
PE Personal Evaporator has been carefully packed and shipped to ensure that it is
received in proper condition. Any damage to the container or its contents should be
reported immediately to your local distributor or to KD Scientific. Please refer to the
warranty (page v), Warranty, Returns, and Repairs, for more information.
If replacement parts are needed, please refer to Appendix B, Replacement Parts for part
numbers.
2.6 Assembling the System
The interior of the Centrifan TM PE Personal Evaporator is shown In Figure 2-1.

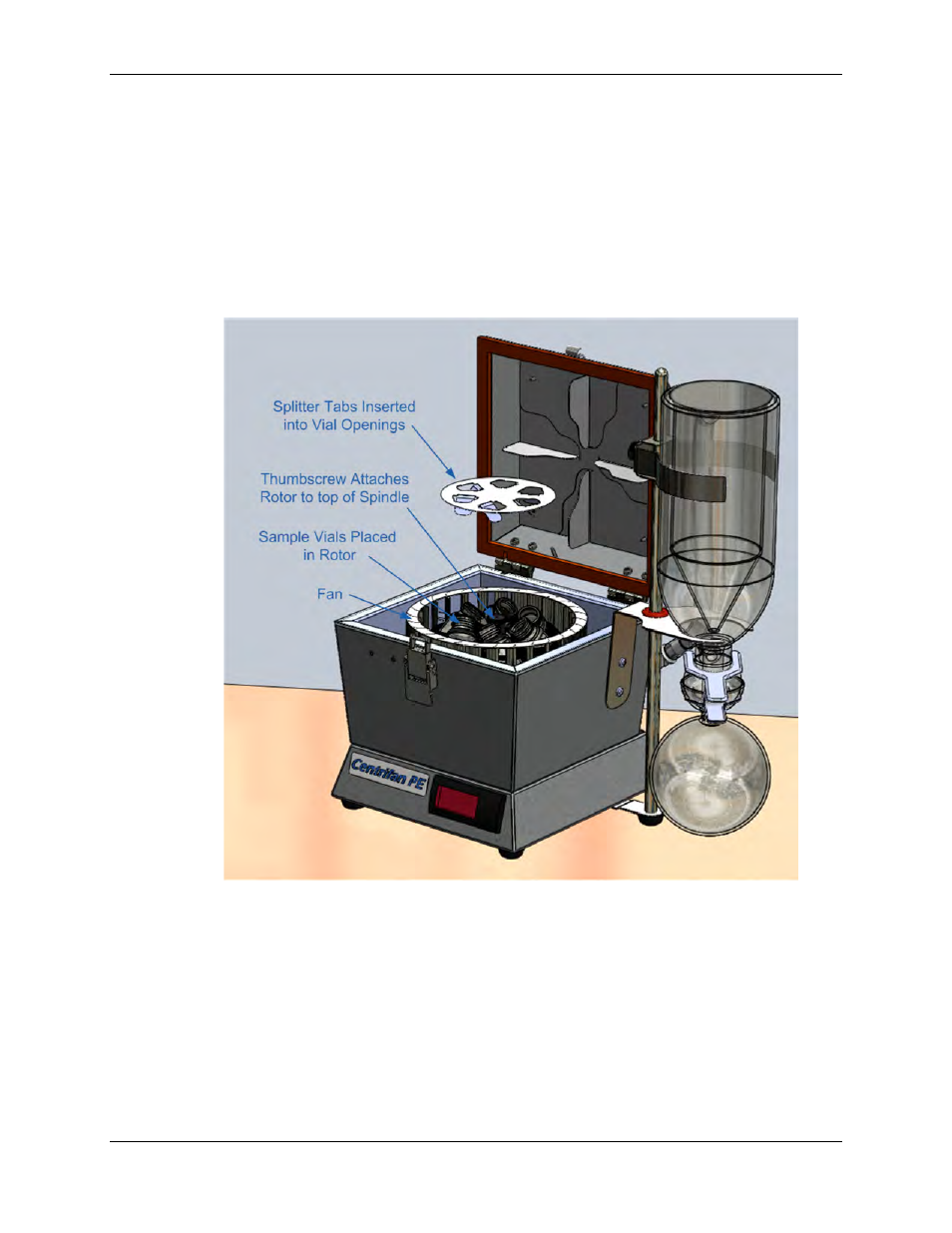

Figure 2-1: Internal Components
To install the system:
a) Remove the Centrifan TM PE unit from its carton, set it on a suitable work surface, and
open the lid by lifting the spring-loaded latch. Remove any packing material present
and confirm that the centrifugal fan turns freely.
