PLATFORM
BEFORE YOU BEGIN, PLEASE VERIFY THAT THIS RACK WILL FIT YOUR PLATFORM BODY.
This rack will fit platform bodies that are at least 84" wide, with cab guards that are in the range of 38" - 48" high.
BEFORE YOU BEGIN, PLEASE VERIFY THAT THE RACK WILL FIT YOUR BODY.
#1
= Attach CLAMP PLATES centered
at tube joint, with slotted brackets towards
inside of RACK, with Q, L, M.
7 7a
7
M
L
INS
IDE
7a
Q
STEP 2
04
06
03
05
(right)
this view is from rear,
passanger side (leg cup
slanting outwards, away from truck)
#3= Slide REAR SIDE BEAMS into FRONT SIDE BEAMS . If the swedged portion of the REAR SIDE BEAM
does not easily slide completely into the FRONT SIDE BEAM, place a
piece of cardboard shipping box on the ground, lift the
joined FRONT and REAR SIDE BEAM assemblies into a
vertical position with the REAR SIDE BEAM down, and
gently tap the rounded bottom of the REAR
SIDE BEAM on the cardboard.
STEP 1

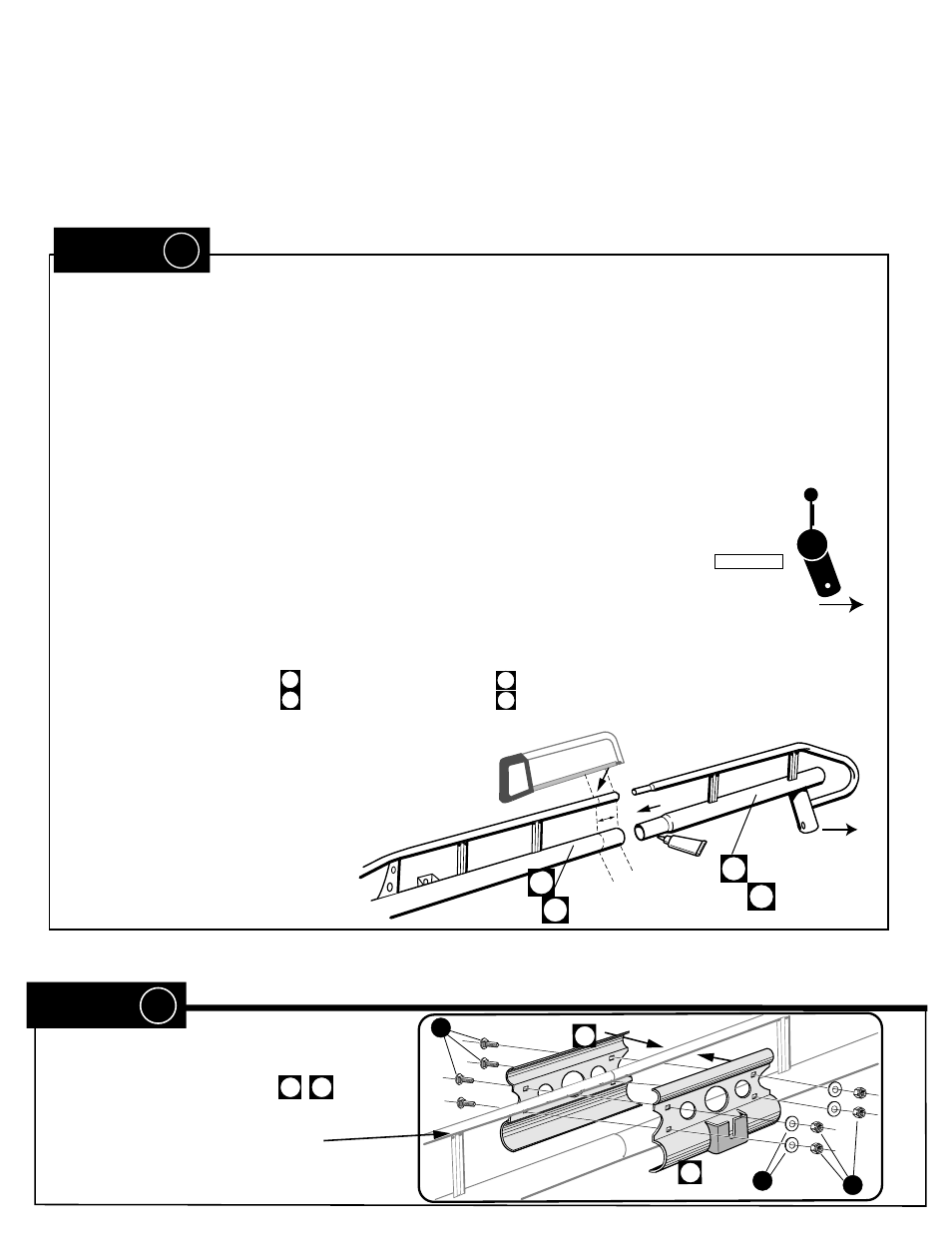

#1= The FRONT SIDE BEAMS are made to fit bodies that are 96" (78000 & 78001), 108" (79000) and 144" (71200)
long. This length is measured from the back of the cab guard to the back of the body frame. If the rack is too long for
your body, it can be shortened by: A- reversing the FRONT CROSSBAR so that the mount tabs are positioned in front
of the cab guard - TRY THAT FIRST; or B- cutting the FRONT SIDE BEAMS as indicated. With CROSSBAR tabs
positioned behind the cab guard as shown, measure the distance from the back of your cab guard to the back of your
body. If for example, this distance is 94", cut 2' off of a 78000 Series rack or 14" off a 79000 Series rack.
(leg cup slanting
outwards)
03
04
06
(left)
(left)
(right)
Silicone
05
IMPORTANT:
(truck bed inside)
(inside clip)
outside
outside
(truck bed side)
#2= Cover entire swedged joint surfaces with silicone sealant.
Before sliding the front side channel into the rear, make certain that
you have matched a right front with a right rear. The front side channels have a clip on one
side, the inside. The leg cups on the front and rear side channel must both slant outward,
away from the center of the truck bed. please refer to the rear view shown here.
