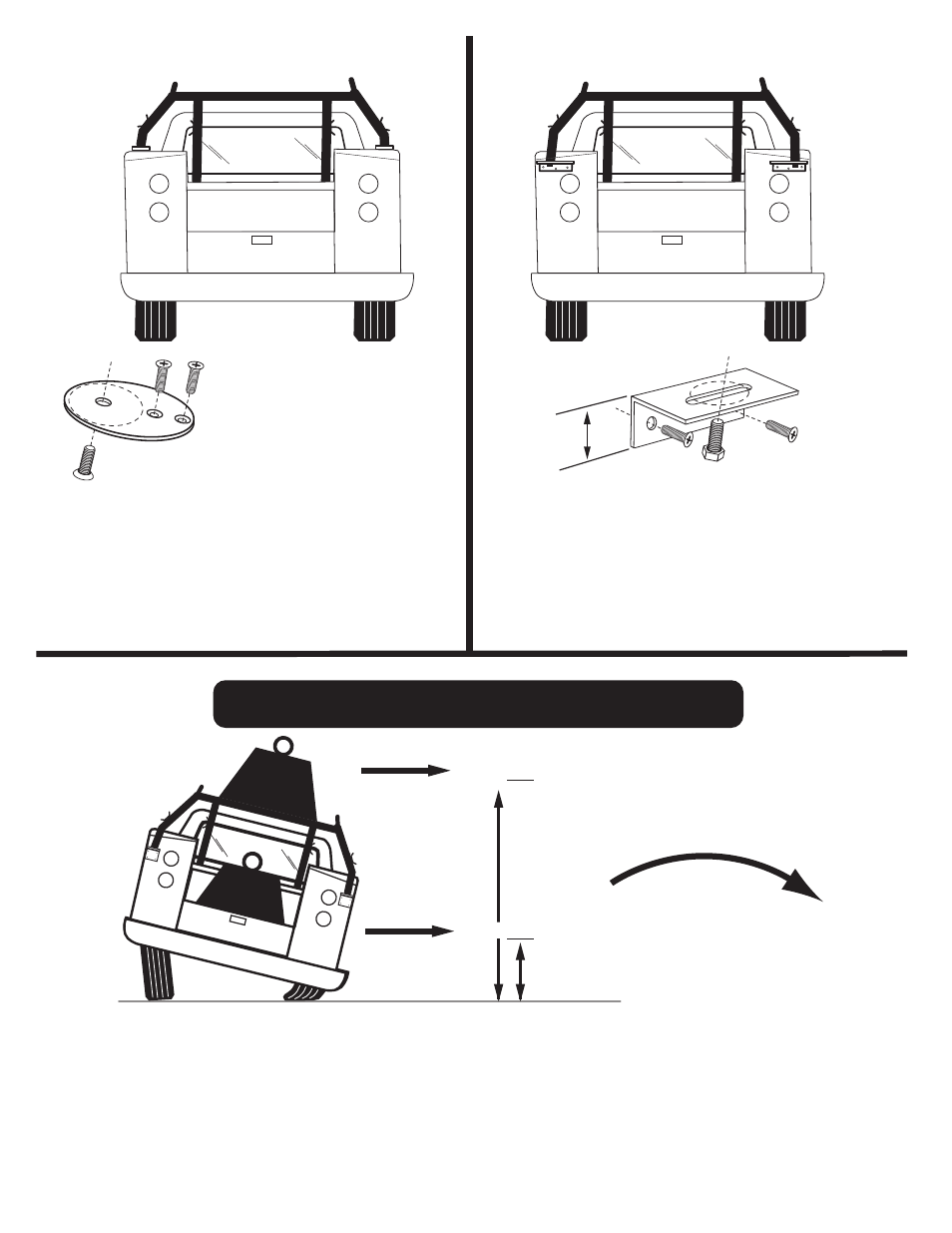

When it is not possible to attach the included rear leg mounts to the back
panel of your service body, an alternative is to mount the rear legs on top
of the box. This works for Stahl bodies and all other service bodies with
side opening boxes. In order to do this, you must purchase our acces-
sory mount kit #70050 that includes shorter rear legs and a small mount
plate that enable you to bolt the legs to the top of the box.
WITH THIS MOUNT, THERE IS NO HIEGHT ADJUSTMENT.
When it is not possible to attach the included rear leg mounts to the back
panel of your service body in the ATTACHING AREA as shown on page 1,
an alternative is to mount the rear legs below the box lid and above the tail
light/box lock. This works on all service bodies that do not have plastic back
panels. In order to do this, you must purchase our accessory mount kit
#70050 that include shorter legs and horizontal angle iron mount brackets
(1 1/2” total height) that will fit below the box lid and above the obstruction.
WITH THIS MOUNT, THERE IS NO HEIGHT ADJUSTMENT.
A
PURCHASED SEPARATELY: PURCHASED SEPARATELY:
1 1/2”
OPTION
B
OPTION
100" = X
3
lbs.
35" =
x1
lbs.
@
@
OVE
RTURN FORCE
DON'T OVERLOAD YOUR VEHICLE!
WEIGHT CARRIED ABOVE THE FLOOR OF THE TRUCK BED (E.G. ON AN OVERHEAD TRUCK RACK) WILL
SIGNIFICANTLY INCREASE THE VEHICLE'S TENDENCY TO OVERTURN. ALWAYS KEEP HEAVY LOADS EVENLY
DISTRIBUTED AND AS LOW AS POSSIBLE. IT IS IMPORTANT TO NOTE THAT THE KARGO MASTER RACK LOAD
BEARING CAPACITY OF 1700 LBS. MAY BE GREATER THAN YOUR TRUCK'S GAWR OR GVWR CAPACITY, AND IS
PROBABLY GREATER THAN THE WEIGHT THAT CAN BE SAFELY CARRIED OVERHEAD.
