JUMO 906122 Platinum-Chip Temperature Sensors of SMD Design Type on Epoxy PCB According to DIN EN 60751, PCSE / PCSM Design Type Data Sheet User Manual
Pcse style, Introduction, Technical publication

10.06/00415559
Data Sheet 90.6122
Page 1/3
JUMO GmbH & Co. KG
Delivery address:Mackenrodtstraße 14,
36039 Fulda, Germany
Postal address: 36035 Fulda, Germany
Phone:
+49 661 6003-0
Fax:
+49 661 6003-607
e-mail:
Internet:
www.jumo.net
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:
+44 1279 635262
e-mail:
Internet: www.jumo.co.uk
JUMO Process Control, Inc.
8 Technology Boulevard
Canastota, NY 13032, USA
Phone:
315-697-JUMO
1-800-554-JUMO
Fax:
315-697-5867
e-mail:
Internet: www.jumo.us
Platinum-chip temperature sensors
in SMD style on epoxy card
to EN 60 751
■ for temperatures from -20 to +150°C
■ Reference values Pt100, Pt500 and Pt1000
■ standardized nominal values and tolerance
■ pre-assembled measuring insert
■ automated processing is possible
■ SMD temperature sensors offer a price advantage
Introduction

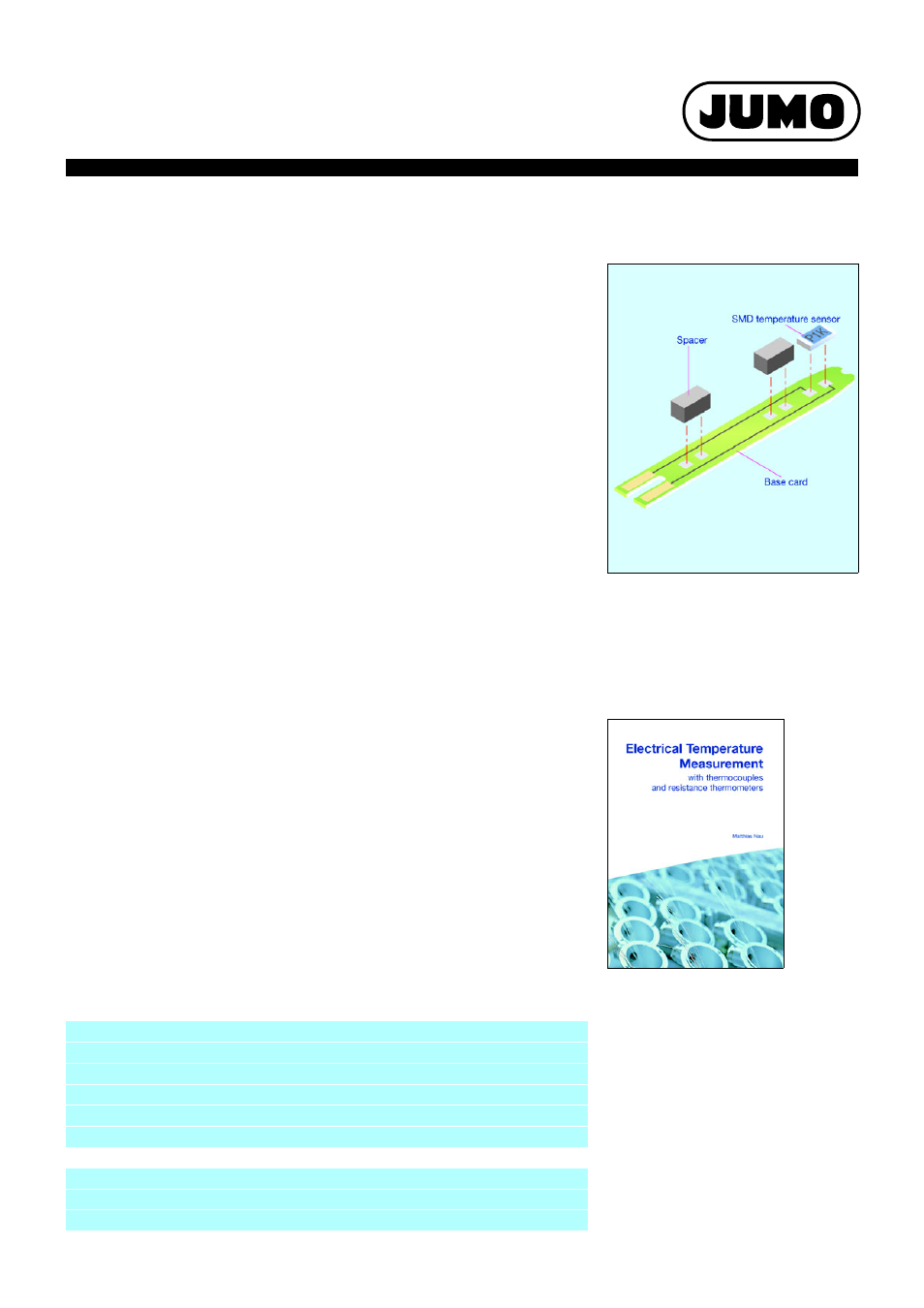

PCSE style platinum-chip temperature sensors constitute a pre-assembled measurement
insert. The epoxy card carries an assembled platinum SMD temperature sensor as the
active component to acquire the temperature.
The resistance signal is transmitted to the contact areas on opposing sides, via thin
tracks. The connection is made through solder contacts, so that a variety of different
connecting cables can be soldered on with ease. In addition, spacers are fitted on the
card, which make it possible to center the card within the protection tube. Furthermore,
they also ensure that the safety distance required for the insulation between temperature
sensor and protection tube is maintained.
PCSE style platinum-chip temperature sensors are available from stock as Pt100, Pt500
and Pt1000 measuring inserts.
The application temperature range covers -20 to +150°C.
Technical publication
This revised edition takes account of altered
standards and recent developments. The
new chapter “Measurement uncertainty”
incorporates the basic concept of the
internationally recognized ISO guideline
“Guide to the expression of uncertainty in
measurement” (abbreviated: GUM).
In addition, the chapter on explosion
protection for thermometers has been
updated in view of the European Directive
94/9/EC, which has been in force since 1st
July 2003.
August 2002
Publication FAS 146
Sales No. 90/00085081
ISBN: 978-3-935742-07-8
JUMO platinum temperature sensors
Construction and application of platinum temperature sensors
Data Sheet 90.6000
Platinum-glass temperature sensors
Data Sheet 90.6021
Platinum-ceramic temperature sensors
Data Sheet 90.6022
Platinum-foil temperature sensors
Data Sheet 90.6023
Platinum-glass temperature sensors with glass extension
Data Sheet 90.6024
Platinum-chip temperature sensors with connecting wires
Data Sheet 90.6121
Platinum-chip temperature sensors on epoxy card
Data Sheet 90.6122
Platinum-chip temperature sensors with terminal clamps
Data Sheet 90.6123
Platinum-chip temperature sensors in cylindrical style
Data Sheet 90.6124
Platinum-chip temperature sensors in SMD style
Data Sheet 90.6125
PCSE style
