Order details

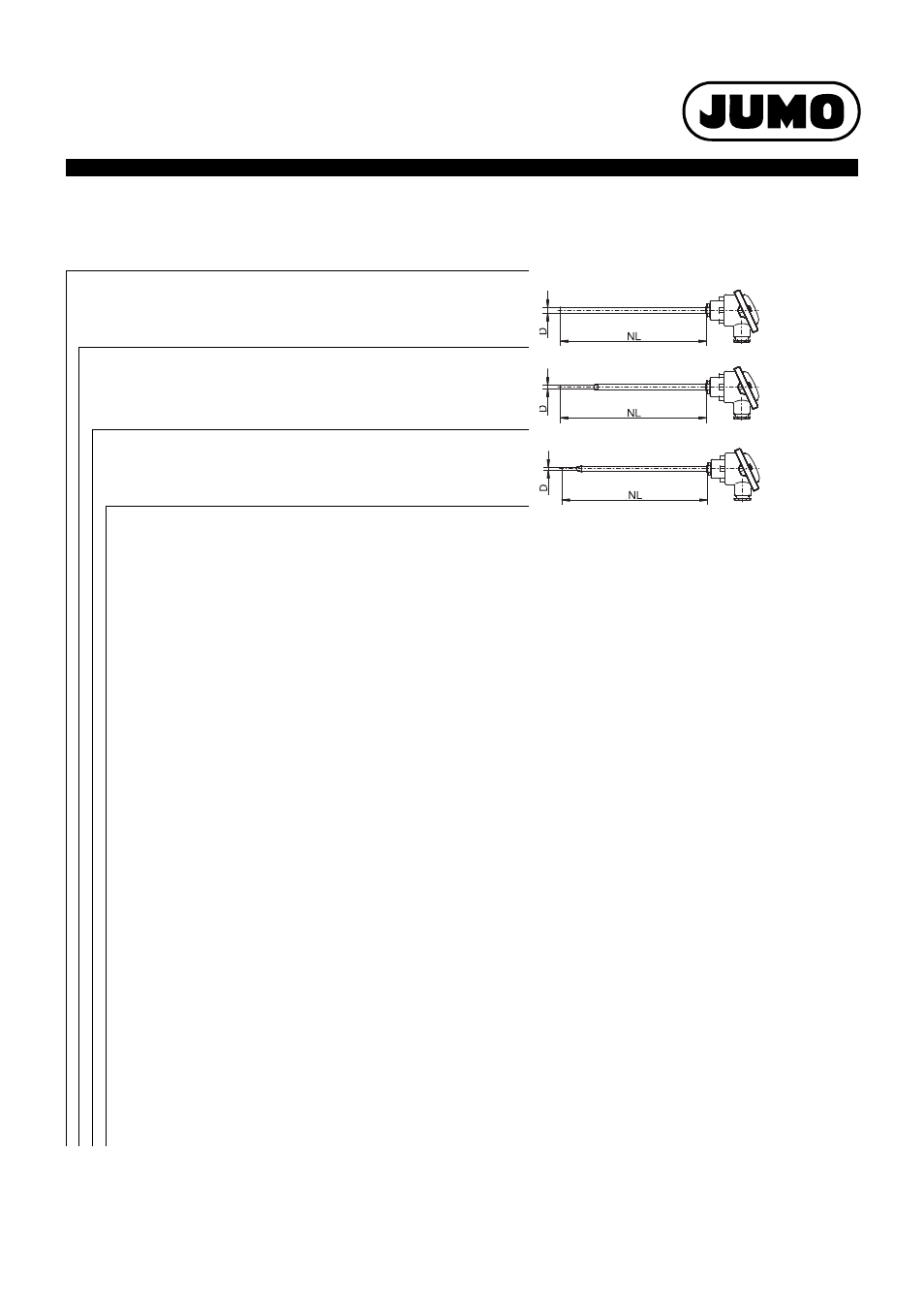

(1) Basic type
902123/10
JUMO Etemp B
Push-in RTD temperature probes
with terminal head form B
and with continuous sheath
902123/11
JUMO Etemp B
Push-in RTD temperature probes
with terminal head form B
and with stepped sheath
(for
∅
6 mm on
∅
3.8 mm/for
∅
8 mm on
∅
6 mm)
902123/31
JUMO Etemp B
Push-in RTD temperature probes
with terminal head form B
and with stepped sheath for air measurement
(2) Operating temperature in °C
x x x
380
-50 to +200 °C (standard)
x x
386
-50 to +260 °C
x x
402
-50 to +400 °C
x x
647
-20 to +150 °C (only in connection with class B and 1x Pt100 in 2-wire circuit)
(3) Measuring insert
x x x
1003
1x Pt100 in 2-wire circuit
x x x
1011
1x Pt100 in 4-wire circuit
x x x
2003
2x Pt100 in 2-wire circuit
(4) Tolerance class as per DIN EN 60751
x x x
1
Class B (standard)
x x x
2
Class A
x x x
3
Class AA (1/3 DIN B)
(5) Sheath diameter D in mm
x x x
6
∅
6 mm
x x
8
∅
8 mm
(6) Nominal length NL in mm (NL 50 to 1000 mm, max. 800 mm for basic types 902123/11 and 902123/31)
x
50
50 mm
x x x
100
100 mm
x x x
200
200 mm
x x x
...
Please specify in plain text (50 mm steps)
(7) Extra codes
x x x
000
none
x x x
320
terminal head Form BUZ
x x x
330
1x transmitter, analog output 4 to 20 mA
a
, data sheet 707030
a
Specify measuring range in plain text.
x x x
331
1x programmable transmitter, 4 to 20 mA output
b
, data sheet 707010
b
Specify measuring range and output signal in plain text.
x x x
333
1x transmitter, analog output 0 to 10 V
a
, data sheet 707030
