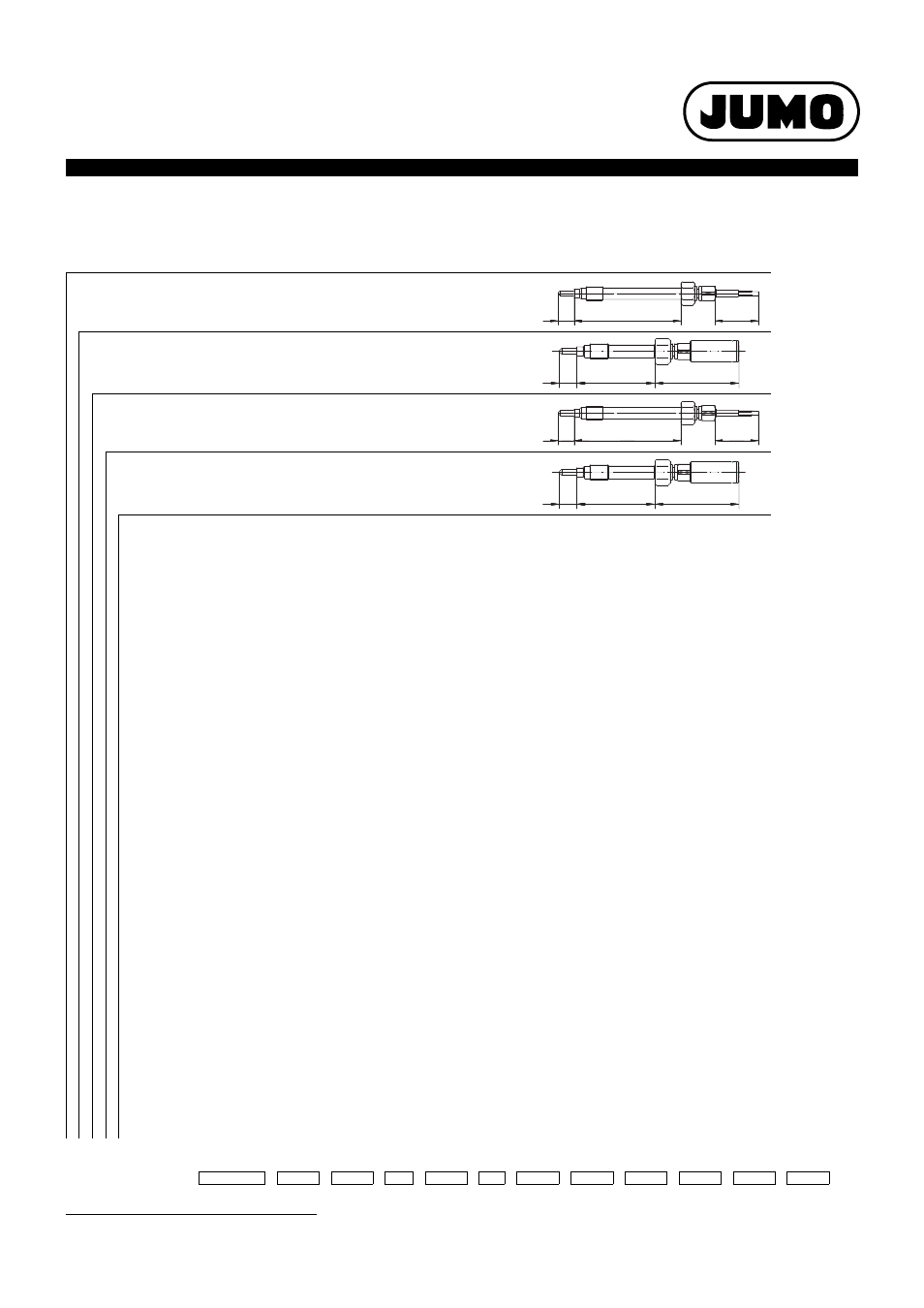

Order details:
Screw-in melt RTD temperature probes
(1) Basic type
902090/10
Screw-in melt RTD temperature probes
with connection cable
902090/20
Screw-in melt RTD temperature probes
with plug connector (LEMO device outlet ERA-2S)
902090/50
Screw-in melt RTD temperature probes
with connection cable
and ceramic insulated probe tip
902090/60
Screw-in melt RTD temperature probes
with plug connector (LEMO device outlet ERA-2S)
and ceramic insulated probe tip
(2) Operating temperature range in °C/cable type
x x x x
386
-50 to +260°C/PTFE
x x x x
388
-50 to +260°C/PTFE metal braiding
x x x x
402
-50 to +400°C/Metal braiding
(3) Measuring insert
x x x x
1001
1x Pt 100 in 3-wire-circuit
x x x x
1003
1x Pt 100 in 2-wire circuit
x x x x
1011
1x Pt 100 in 4-wire circuit
x
2001
2x Pt 100 in 3-wire-circuit
x x
2003
2x Pt 100 in 2-wire circuit
(4) Tolerance class according to DIN EN 60751
x x x x
1
Class B (standard)
x x x x
2
Class A
(5) Fitting length EL in mm
x x x x
152
152mm (Standard)
x x x x
...
Specifications in plain text
(6) Probe tip shape
x x
1
Flat
x x x x
4
Blade
(7) Probe tip length L in mm
x x
0
Flat
x x x x
5
5mm
x x x x
10
10mm
x x x x
15
15mm
x x x x
20
20mm
x x x x
25
25mm
(8) Material/surface of the probe tip
x x x x
26
1.4571 (Standard)
x x x x
39
1.4571 coating as per agreement
(9) Process connection
x x x x
126
M 18x1.5
x x x x
153
1/2“x20 UNF
(10) Cable termination
x
x
00
None
x
x
03
stripped wires
x
x
11
Ferrules as per DIN 46 228 Part 4 (Standard)
x
x
80
Multi-pole connector (enter type in plain text)
(11) Connection cable length AL in mm
x
x
0000
None
x
x
3000
3000mm
x
x
...
Please specify in plain text (500mm steps)
(12) Extra codes
x x x x
000
None
x
x
315
Anti-kink spring
x
x
853
Metal protection hose on the connection line
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
Order code
-
-
-
-
-
-
-
-
-
-
/
, ...
1
Order example
902090/10 -
402
- 1003 -
1
-
152
-
4
-
15
-
26
-
153
-
11
- 3000 /
000
AL
EL
L
L
EL
72
AL
EL
L
L
EL
72
1
List extra codes in sequence, separated by commas.
