Page 3
2009-05-26/00311503
Data Sheet 90.2190 (90.2109)
Page 3/3
JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14,
36039 Fulda, Germany
Postal address:
36035 Fulda, Germany
Phone:
+49 661 6003-0
Fax:
+49 661 6003-607
E-mail:
Internet:
www.jumo.net
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow - Essex CM20 2DY, UK
Phone: +44 1279 63 55 33
Fax:
+44 1279 63 52 62
E-mail:
Internet: www.jumo.co.uk
JUMO Process Control, Inc.
8 Technology Boulevard
Canastota, NY 13032, USA
Phone:
315-697-JUMO
1-800-554-JUMO
Fax:
315-697-5867
E-mail:
Internet: www.jumo.us
Note: Bayonet sockets, Data Sheet 90.9725

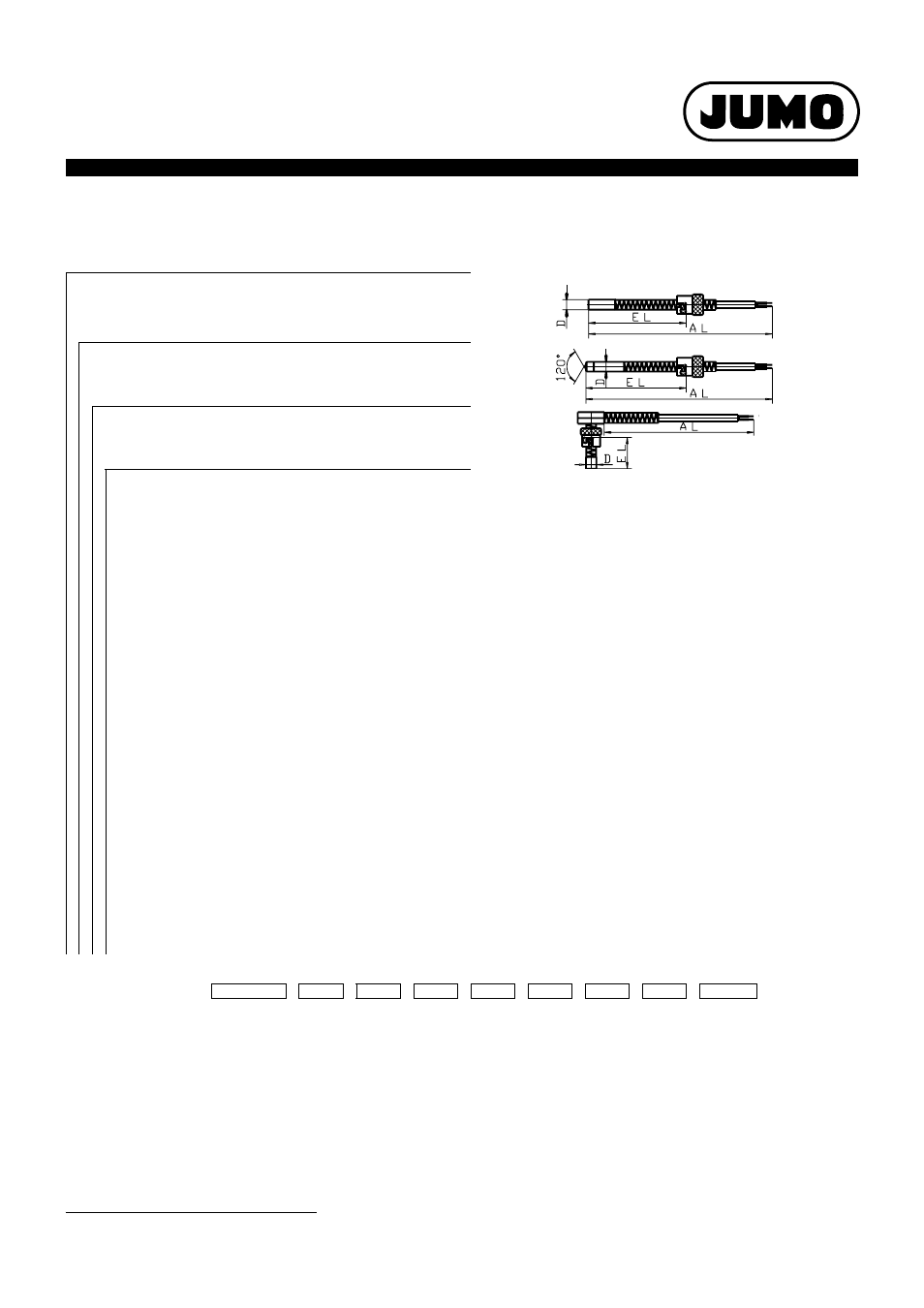

Order details:
Push-in RTD temperature probes with bayonet lock
(1) Basic version
902190/10
Push-in RTD temperature probe,
sheath / measuring tip (flat-bottom) in
stainless steel, Mat. Ref. 1.4571;
bayonet lock: 12mm dia.
902190/20
Push-in RTD temperature probe,
sheath in stainless steel, Mat. Ref. 1.4571,
measuring tip (120°) ceramic,
KER 221; bayonet lock: 12mm dia.
902190/30
Push-in RTD temperature probe,
sheath / measuring tip (flat-bottom) in
stainless steel, Mat. Ref. 1.4571;
bayonet lock: 12mm dia.
(2) Operating temperature in °C / connecting cable
x x x
380
-50 to +200°C/silicone
x x x
386
-50 to +260°C/PTFE
x x x
388
-50 to +260°C/metal braiding
x x x
397
-50 to +350°C/metal braiding
(3) Measuring insert
x x x
1001
1 x Pt100 in 3-wire circuit
x x x
1003
1 x Pt100 in 2-wire circuit
x x x
2003
2 x Pt100 in 2-wire circuit
(4) Tolerance class to EN 60 751
x x x
1
Class B (standard)
x x x
2
Class A
(5) Sheath diameter D in mm
x x
6
6mm
x
x
8
8mm
(6) Fitting length EL in mm
x
85
20 - 85mm
x
175
20 - 175mm
x
185
29 - 185mm
(7) Connecting cable end
x x x
03
bare cable ends
x x x
11
ferrules to DIN 46 228 Part 4 (standard)
x x x
13
receptacle 6.3 to DIN 46 247
x x x
80
multipole connector (please specify type in plain text)
(8) Connecting cable length AL in mm (500
≤ AL ≤500000)
x x x
2500
2500mm
x x x
...
please specify in plain text (500mm steps)
(9) Extra codes
x x x
000
no extra code
x x x
302
bayonet lock 15mm dia.
x x x
303
bayonet lock 16mm dia.
x x x
317
shielded connecting cable
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
Order code
-
-
-
-
-
-
-
/
,...
Order example
902190/10 -
397
- 1003 -
1
-
8
-
175
-
11
- 2500 /
000
1
Stock versions
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
Sales No.
902190/10
-
397
-
1003
-
1
-
8
-
175
-
11
-
2500
/
317
90/00055797
902190/10
-
388
-
1003
-
1
-
6
-
175
-
11
-
2500
/
317
90/00055798
902190/20
-
388
-
1003
-
1
-
6
-
185
-
13
-
2500
/
317
90/00055808
1
List extra codes in sequence, separated by commas.
