Note:
Minimum order quantities are specified for this data sheet:
Version with connection cable length AL
≤
3000 mm: min. 100
and connection cable length AL > 3000 mm: min. 50.
Variations according to data sheet are only available in the minimum order quantity specified.
For minimum quantities and similar basic types please refer to data and price sheet 902150.

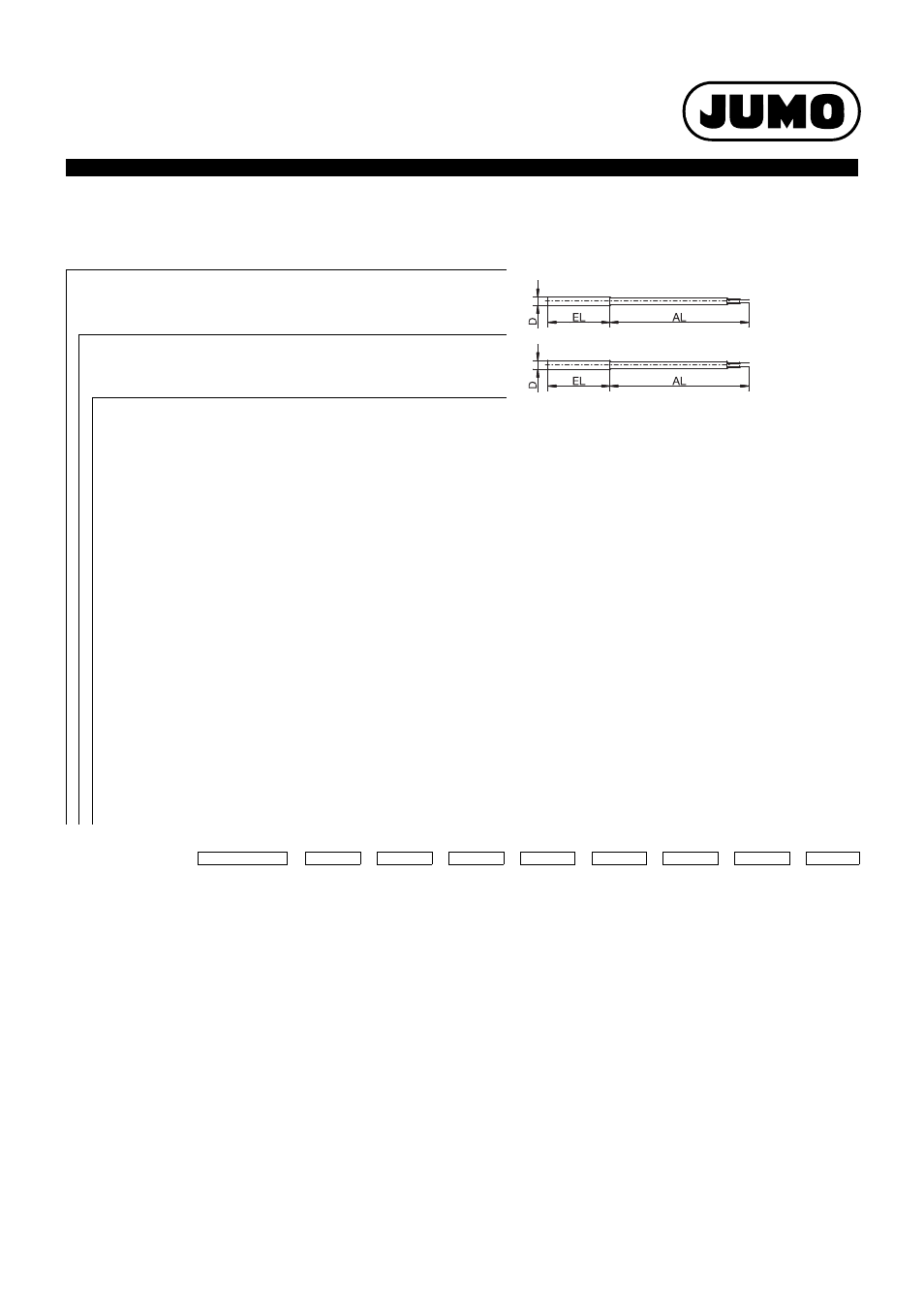

Order details:
Push-in RTD temperature probe with connection cable for the solar heating system
(1) Basic type
902153/10
Push-in RTD temperature probe
with connection cable for the solar heating system,
single-section sheath made of stainless steel
902153/15
Push-in RTD temperature probe
with connection cable for the solar heating system,
single-section sheath made of brass
(2) Operating temperature range in °C / cable type
x x
378
-50 to +180 °C (short-term +250 °C) / Silicone
x
386
-50 to +260 °C (short-term +300 °C) / PTFE
x x
730
-5 to +105 °C / PVC
x x
731
-5 to +105 °C / PUR
(3) Measuring insert
x x
1003
1× Pt 100 in 2-wire circuit
x x
1005
1× Pt 1000 in 2-wire circuit (standard)
(4) Tolerance class according to DIN EN 60751
x x
1
Class B (standard)
(5) Sheath diameter D in mm
x
5
Ø 5 mm
x
5.2
Ø 5.2 mm
x x
6
Ø 6 mm (standard)
(6) Fitting length EL in mm
x x
25
25 mm (only with sheath diameter 6 mm)
x
36
36 mm (only with sheath diameter 5 mm)
x
45
45 mm (standard with sheath diameter 5 mm and 5.2 mm)
x x
50
50 mm (standard with sheath diameter 6 mm)
x
60
60 mm (only with sheath diameter 6 mm)
(7) Cable termination
x x
04
Tin-plated wires
x x
11
Ferrules according to DIN 46228 Part 4 (standard)
x x
13
Contact 6.3 mm according to DIN 46247
(8) Cable length AL in mm (500 to 20000)
x x
1500
1500 mm (standard with silicone connection cable)
x x
2500
2500 mm (standard with PUR-/PVC connection cable)
x x
. . .
Please specify in plain text (500 mm steps)
(9) Extra codes
x x
000
None
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
Order code
-
-
-
-
-
-
-
/
Order example
902153/10
-
731
-
1005
-
1
-
6
-
50
-
11
-
2500
/
000
Stock versions
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
Part no.
902153/10
-
378
-
1005
-
1
-
6
-
50
-
11
-
1500
/
000
00376393
902153/10
-
378
-
1005
-
1
-
6
-
50
-
11
-
2500
/
000
00390058
902153/10
-
378
-
1005
-
1
-
6
-
50
-
11
-
3000
/
000
00376392
902153/10
-
731
-
1005
-
1
-
6
-
50
-
11
-
4000
/
000
00408767
902153/15
-
378
-
1005
-
1
-
6
-
25
-
11
-
1500
/
000
00534256
902153/15
-
378
-
1005
-
1
-
6
-
25
-
11
-
5000
/
000
00520324
902153/15
-
731
-
1005
-
1
-
6
-
25
-
11
-
2000
/
000
00534258
