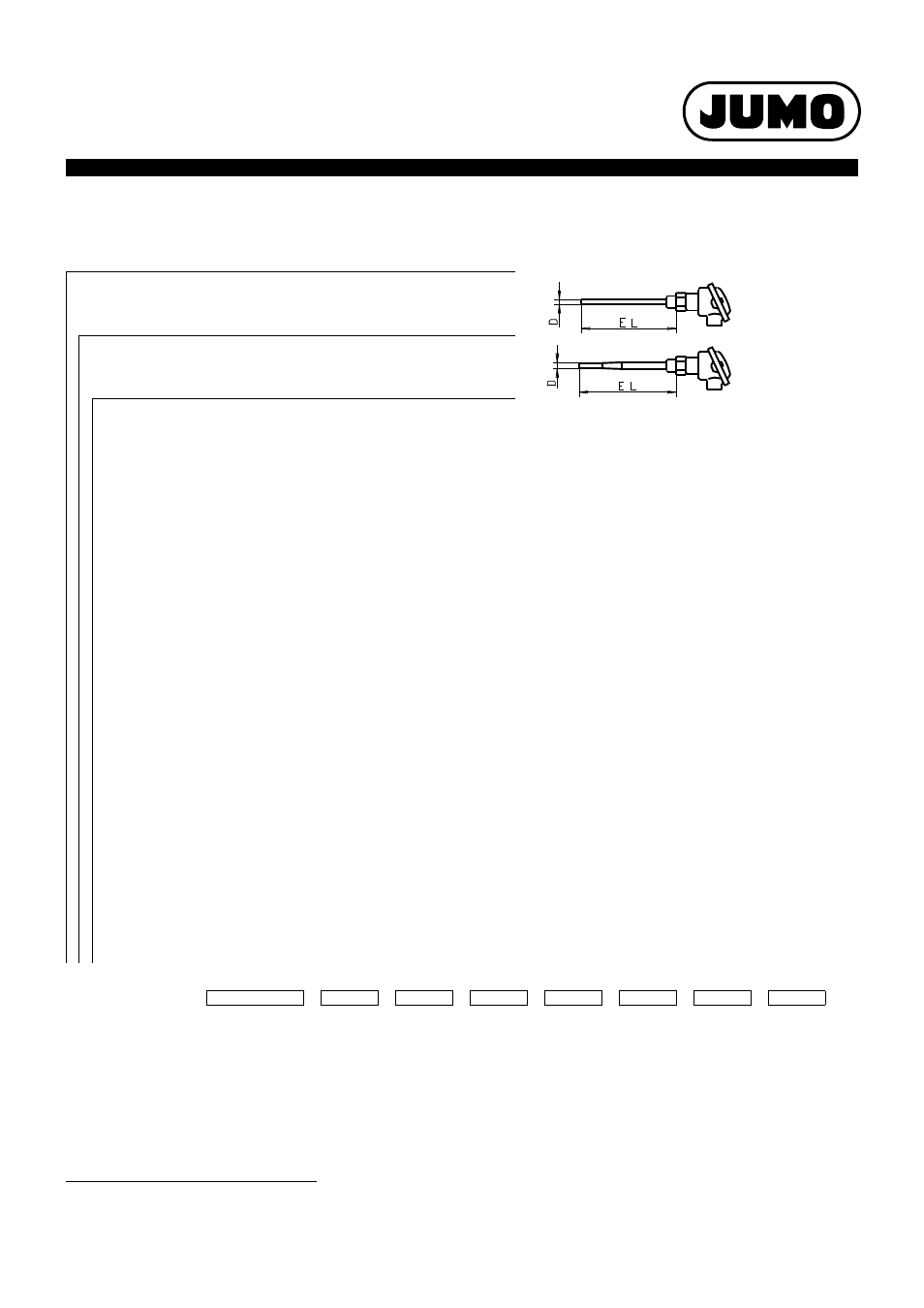

Order specifications:
Screw-in RTD temperature probe with connection head form B
(1) Basic type
902020/20
Screw-in RTD temperature probes
without extension tube and continuous thermowell
902020/21
Screw-in RTD temperature probes
without extension tube and stepped thermowell
(2) Operating temperature in °C
x x
402
-50 to +400 °C (standard)
x x
415
-50 to +600 °C
(3) Measuring insert
x x
1001
1× Pt100 in 3-wire-circuit
x x
1003
1× Pt100 in 2-wire circuit
x x
1011
1× Pt100 in 4-wire circuit
x x
2001
2× Pt100 in 3-wire circuit
x x
2003
2× Pt100 in 2-wire circuit
(4) Tolerance class according to DIN EN 60751
x x
1
Class B (standard)
x x
2
Class A
(5) Thermowell diameter D in mm
x
9
Ø 9 mm
x
11
Ø 11 mm
x
12
Ø 12 mm stepped down to 9 mm
(6) Fitting length EL in mm (EL 100 ... 1000 mm, EL
≤
700 mm for basic type 902020/21)
x x
100
100 mm
x x
160
160 mm
x x
250
250 mm
x x
400
400 mm
x x
...
Specification in plain text (50 mm steps)
(7) Process connection
x x
104
Screw-connection G 1/2
x x
105
Screw-connection G 3/4
x x
106
Screw connection G 1
(8) Extra codes
x x
000
no extra code
x x
320
terminal head Form BUZ
x x
321
terminal head Form BUZH
x x
322
Connection head form BBK
x x
330
1× analog transmitter, 4 to 20 mA
2
output, data sheet 707030
x x
331
1× transmitter programmable output 4 to 20 mA/20 to 4 mA
3
, data sheet 707010
x x
333
1× analog transmitter, 0 to 10 V
2
output, data sheet 707030
x x
334
2× analog transmitters, 4 to 20 mA
2
output, data sheet 707030
x x
335
2× transmitter, programmable, output 4 to 20 mA/20 to 4 mA
3
, data sheet 707010
x x
337
2× analog transmitters, 0 to 10 V
2
output, data sheet 707030
x x
859
1× Wtrans B programmable head transducer with radio transmission, data sheet 707060
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
Order code
-
-
-
-
-
-
/
,...
1
Order example
902020/20
-
402
-
1001
-
1
-
9
-
160
-
104
/
000
1
List extra codes in sequence, separated by commas.
2
Specify measuring range in plain text.
3
Specify measuring range and output signal in plain text.
