Stock versions
Order details:

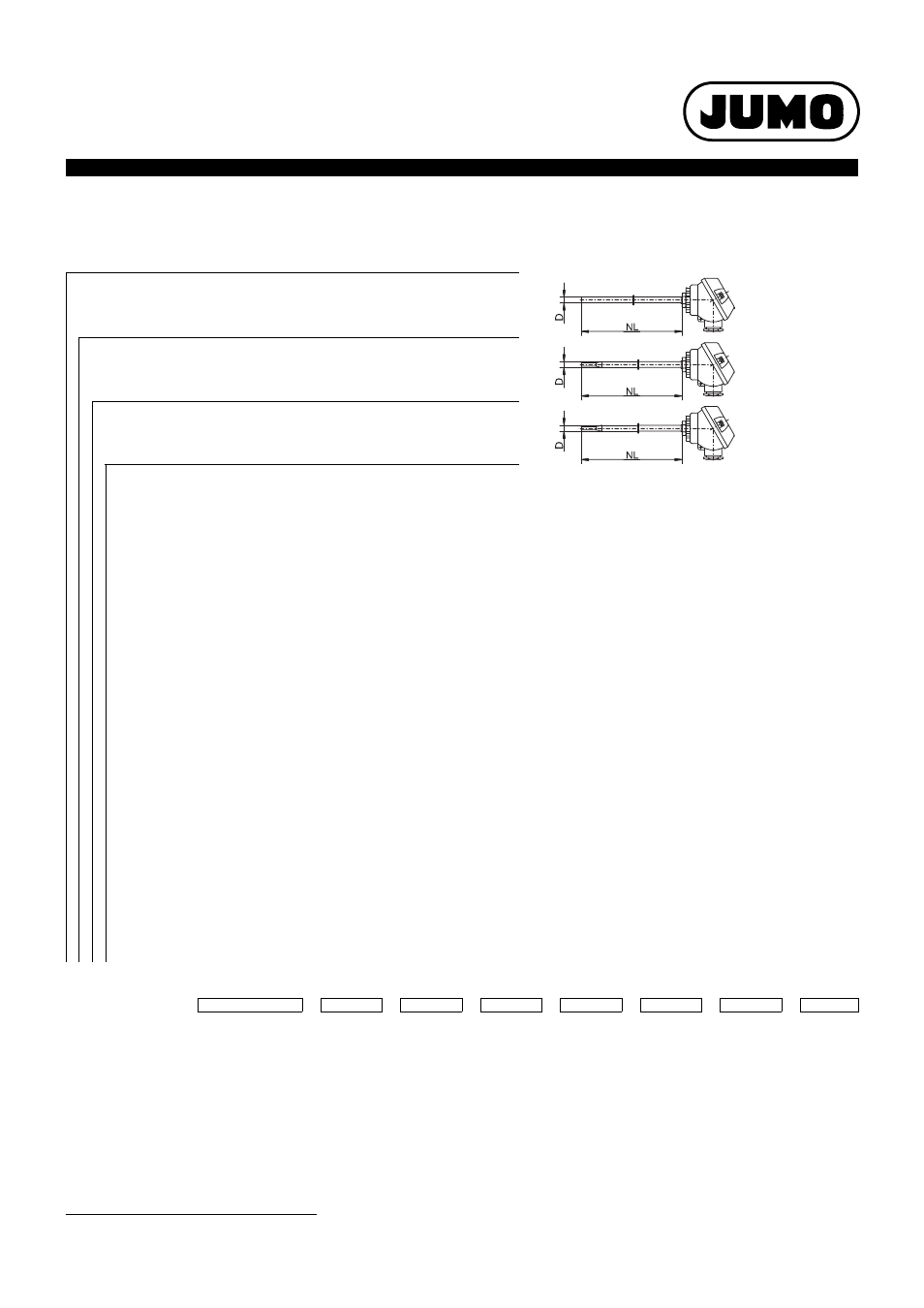

Push-in RTD temperature probe with terminal head form J
(1) Basic type
902130/10
Push-in RTD temperature probes
with continuous thermowell
902130/11
Push-in RTD temperature probes
with stepped thermowell
(with Ø 6 to 3.8mm; with Ø 8 to 6mm)
902130/31
Push-in RTD temperature probes
with stepped thermowell for air measurement
(2) Operating temperature in °C
x x
647
-20 ... +150°C (only in conjunction with tolerance class B)
x x x
380
-50 ... +200°C
x x
386
-50 ... +260°C
x x
402
-50 ... +400°C
(3) Measuring insert
x x
1001
1 x Pt 100 in 3-wire-circuit
x x x
1003
1 x Pt 100 in 2-wire circuit
x x x
1011
1 x Pt 100 in 4-wire circuit
x x x
2003
2 x Pt 100 in 2-wire circuit
(4) Tolerance class according to DIN EN 60 751
x x x
1
Class B (standard)
x x x
2
Class A
(5) Protection tube diameter D in mm
x x x
6
Ø 6mm
x x
8
Ø 8mm
(6) Nominal length NL in mm (50
≤ NL ≤ 1000)
x x x
50
50mm
x x x
100
100mm
x x x
150
150mm
x x x
250
250mm
x
290
290mm
x x x
...
Specification in plain text (50mm steps)
(7) Process connection
x x x
000
without process connection
x
245
Thermowell screw connection, spring-loaded G 1/2, spring deflection 12mm (for Ø 8mm only, Tmax. 180°C)
x x x
252
Thermowell screw connection G 1/4 (for a 6mm diameter only)
x x x
254
Thermowell screw connection G 1/2 (for a 6mm or Ø 8mm diameter only)
x x x
662
Metal flange Ø 6mm
x
667
Metal flange Ø 8mm
(8) Extra codes
x x x
000
Without
x x x
330
1 x analog transmitter, 4 ... 20mA
1
output, Data sheet 70.7030
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
Order code
-
-
-
-
-
-
/
Order example
902130/10
-
402
-
1001
-
1
-
6
-
100
-
000
/
000
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
Part No.
902130/10
-
402
-
1003
-
1
-
6
-
50
-
000
/
000
90/00063618
902130/10
-
402
-
1003
-
1
-
6
-
150
-
000
/
000
90/00063620
902130/10
-
402
-
1003
-
1
-
6
-
250
-
000
/
000
90/00063622
902130/10
-
647
-
1003
-
1
-
6
-
100
-
000
/
000
90/00533469
902130/10
-
647
-
1003
-
1
-
6
-
150
-
000
/
000
90/00533470
902130/10
-
647
-
1003
-
1
-
6
-
250
-
000
/
000
90/00533471
902130/31
-
380
-
1003
-
1
-
6
-
290
-
000
/
000
90/00438399
1
Specify measuring range in plain text.
