Data Sheet 902150
Page 3/6
2013-09-13/00311500

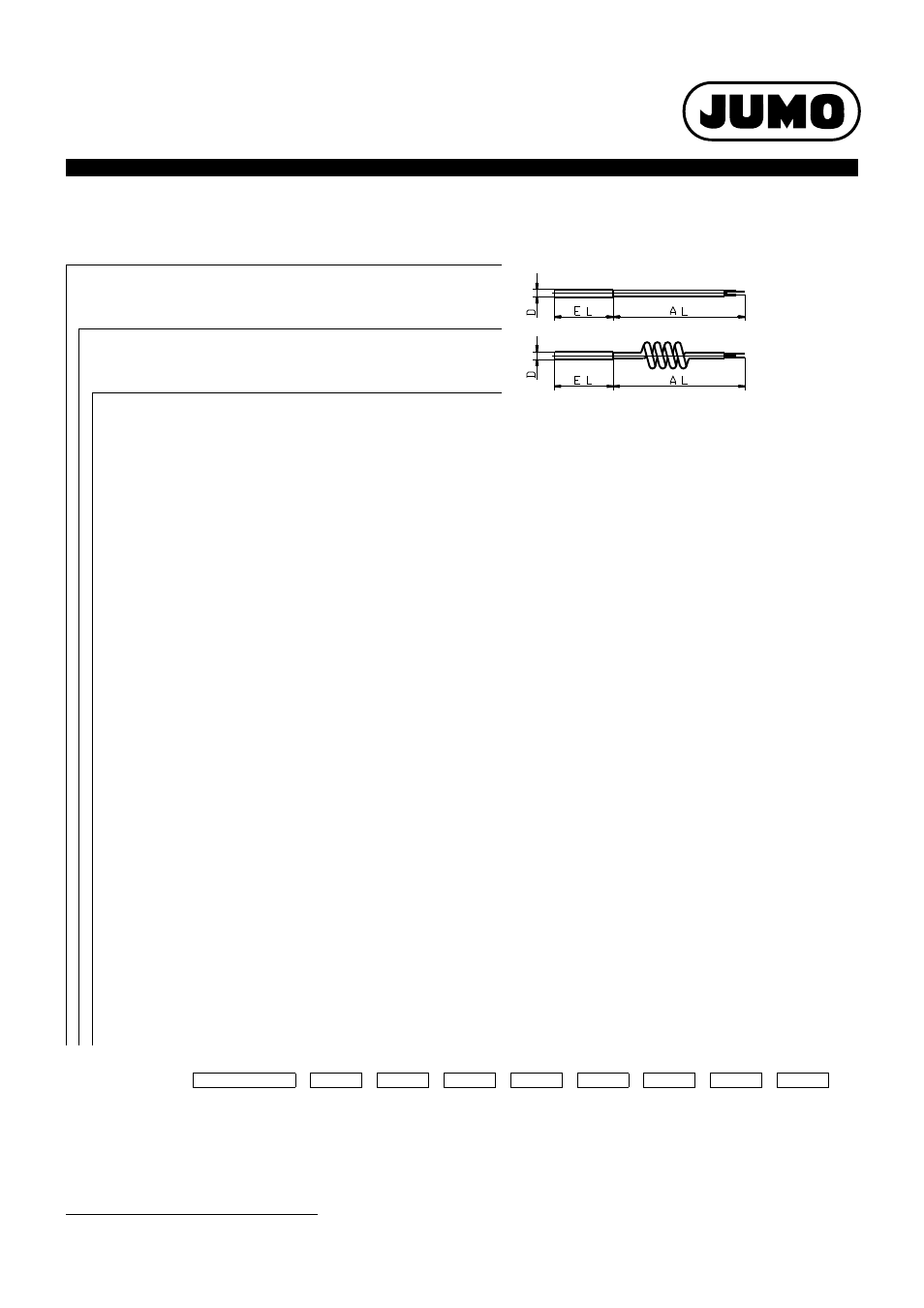

Order details:
Push-in RTD temperature probe with connecting cable
(1) Basic type
902150/10
Push-in RTD temperature probe
with connecting cable,
single-section protection tube
made of stainless steel
902150/20
Push-in RTD temperature probe
with spiral connecting cable,
single-section protection tube
made of stainless steel
(2) Operating temperature in °C/connecting cable
x
378
-50 to +180 °C / silicone
x
386
-50 to +260 °C / PTFE
x
388
-50 to +260 °C / metal braiding
x
402
-50 to +400 °C / metal braiding
x
724
-5 to +80 °C / PVC
x x
730
-5 to +105 °C / PVC or PUR
x
912
5 to +105 °C / PUR (only with 1× Pt100 in 2-wire circuit)
(3) Measuring insert
x
1001
1× Pt 100 in 3-wire-circuit
x x
1003
1× Pt 100 in 2-wire circuit
x
1011
1× Pt 100 in 4-wire circuit
x
2001
2× Pt 100 in 3-wire-circuit
x
2003
2× Pt 100 in 2-wire circuit
(4) Tolerance class according to DIN EN 60751
x x
1
Class B (standard)
x x
2
Class A
(5) Protection tube diameter D in mm
x
3
Ø 3 mm (only as 1× Pt100 in 2-wire circuit with PTFE connecting cable)
x
4
Ø 4 mm (only as 1× Pt100 in 2-wire circuit with silicone, PTFE connecting cable, or metal braid)
x
5
Ø 5 mm
x
5.2
Ø 5.2 mm
x x
6
Ø 6 mm
(6) Insertion length EL in mm
x
30
30 mm (standard with D 3 mm and D 4 mm)
x
45
45 mm (standard with D 5 mm and D 5.2 mm)
x x
50
50 mm (not for D < 6 mm)
x
60
60 mm (not for D <
6 mm)
(7) Connecting cable end
x x
03
Blank connection wires
x x
11
Ferrules (standard)
x x
13
Push-on contact 6.3
x x
80
Multi-pole plug connector (specify type in plain text)
(8) Connecting cable length AL in mm (AL 500 to 500,000 mm for basic type 902150/10)
x
1100
1,100 mm (effective)
x
1500
1,500 mm
x
2500
2,500 mm
x
...
Please specify in plain text (500 mm steps)
(9) Extra codes
x x
000
Without extra code
x
315
Strain relief spring
x
316
Strain-relief spring hose
x x
317
Shielded connecting cable
x
858
Waterproof, protection type IP65 (only for EL 60 mm with PUR or silicone connecting cable)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
Order code
-
-
-
-
-
-
-
/
, ...
1
Order example
902150/10
-
378
-
1001
-
1
-
6
-
50
-
11
-
2500
/
000
1
List extra codes in sequence, separated by commas.
