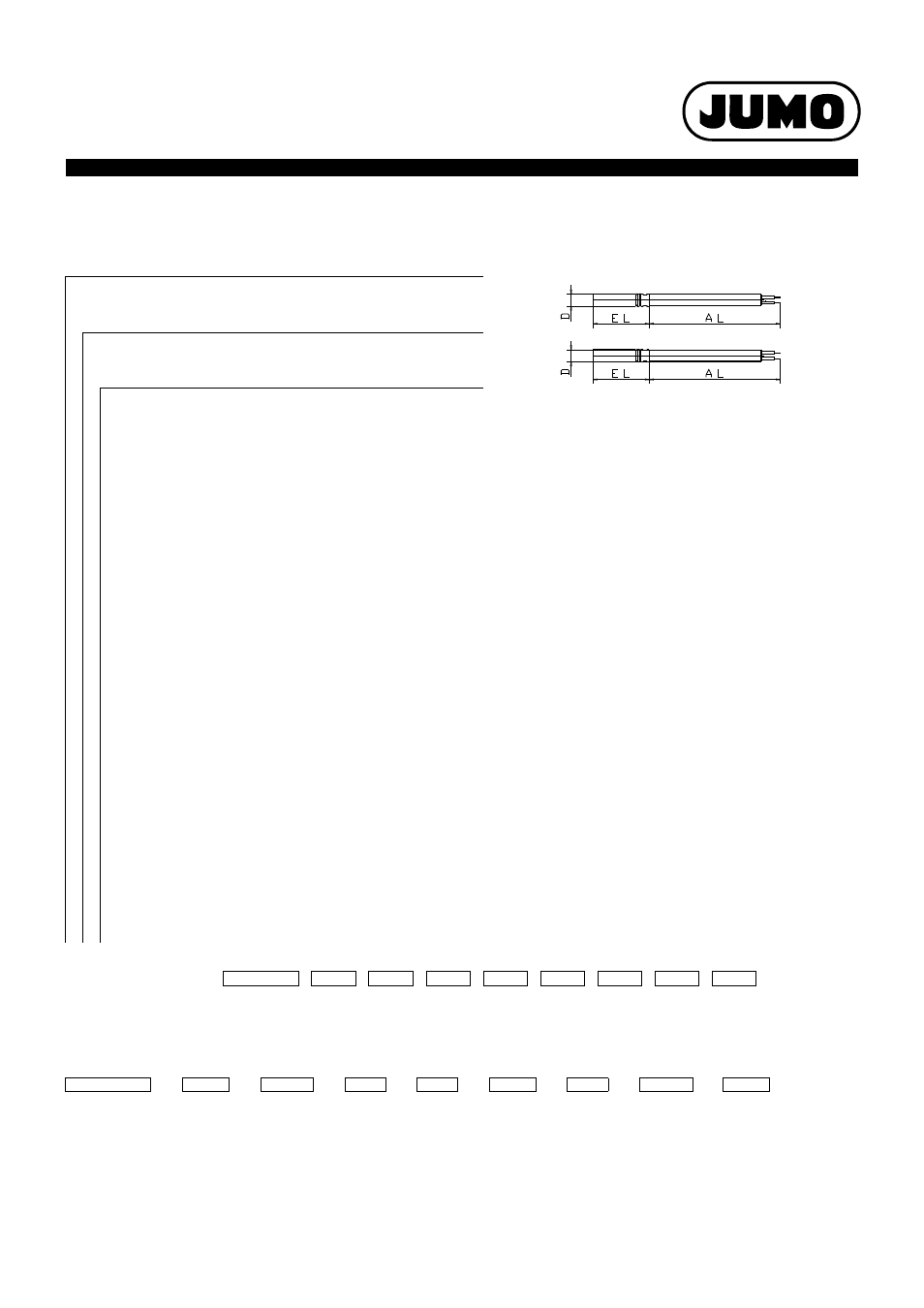

Order details:
Push-in resistance thermometers in steam-tight version
(1) Basic version
902830/10
Push-in resistance thermometer,
steam-tight
902830/30
Push-in resistance thermometer,
steam-tight, pressure-tight up to 5.0bar
(2) Operating temperature in °C
x
302
-70 to +200°C / FEP connecting cable
x
370
-50 to +150°C / PTFE connecting cable
x
371
-50 to +150°C / silicone connecting cable
(3) Measuring insert
x
1001
1 x Pt100 in 3-wire circuit
x
1003
1 x Pt100 in 2-wire circuit
x x
1011
1 x Pt100 in 4-wire circuit
x
2001
2 x Pt100 in 3-wire circuit
x x
2003
2 x Pt100 in 2-wire circuit
x x
2011
2 x Pt100 in 4-wire circuit (not in conjunction with 371)
x
3028
3 x Pt100 1 x 2-wire circuit, 2 x 3-wire circuit (not in conjunction with 371)
(4) Tolerance class to EN 60 751
x x
2
Class A
(5) Protection tube diameter D in mm
x
4
4mm
x
4.5
4.5mm with 2 measuring circuits in 4-wire circuit
x
6
6mm
(6) Fitting length EL in mm (50
≤
EL
≤
500)
x
50
50mm
x x
100
100mm
x x
150
150mm
x x
200
200mm
x x
...
please specify in plain text (in 50mm steps)
(7) Connecting cable end
x x
03
bare cable ends
x x
11
ferrules to DIN 46 228 Part 4 (standard)
x
13
receptacle 6.3 to DIN 46 247
x x
80
multipole connector (specify type in plain text)
(8) Connecting cable length AL in mm (500
≤
AL
≤
500000)
x x
2500
2500mm (standard)
x x
...
please specify in plain text (in 500mm steps)
(9) Extra codes
x x
000
no extra code
x
304
without protection tube (sensor enclosed in PTFE sleeve)
x x
312
curved protection tube R 13mm (only 4.5mm dia. on Type 902830/30) (please specify dimensions in plain text)
x
317
shielded connecting cable
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
Order code
-
-
-
-
-
-
-
/
,...
Order example
902830/10
-
370
-
1011
-
2
-
6
-
100
-
11
-
2500
/
000
1
1. List extra codes in sequence, separated by commas.
Stock versions
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
Sales No.
-
-
-
-
-
-
-
/
902830/10
-
370
-
1011
-
2
-
6
-
100
-
11
-
2500
/
317
90/00306448
902830/10
-
370
-
2001
-
2
-
6
-
100
-
11
-
2500
/
000
90/00306449
902830/30
-
302
-
1011
-
2
-
4
-
50
-
11
-
2500
/
000
90/00445084
902830/30
-
302
-
2011
-
2
-
4.5
-
50
-
11
-
2500
/
000
90/00445085
