Data Sheet 90.1020 (90.1002)
Page 3/4
2011-03-17/00314536
JUMO GmbH & Co. KG
Delivery address:Mackenrodtstraße 14,
36039 Fulda, Germany
Postal address: 36035 Fulda, Germany
Phone:
+49 661 6003-0
Fax:
+49 661 6003-607
e-mail:
Internet:
www.jumo.net
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:
+44 1279 635262
e-mail:
Internet: www.jumo.co.uk
JUMO Process Control, Inc.
8 Technology Boulevard
Canastota, NY 13032, USA
Phone:
315-697-JUMO
1-800-554-JUMO
Fax:
315-697-5867
e-mail:
Internet: www.jumo.us
Note: Sheaths, Data Sheet 90.9710 (90.9721)
Order specifications:

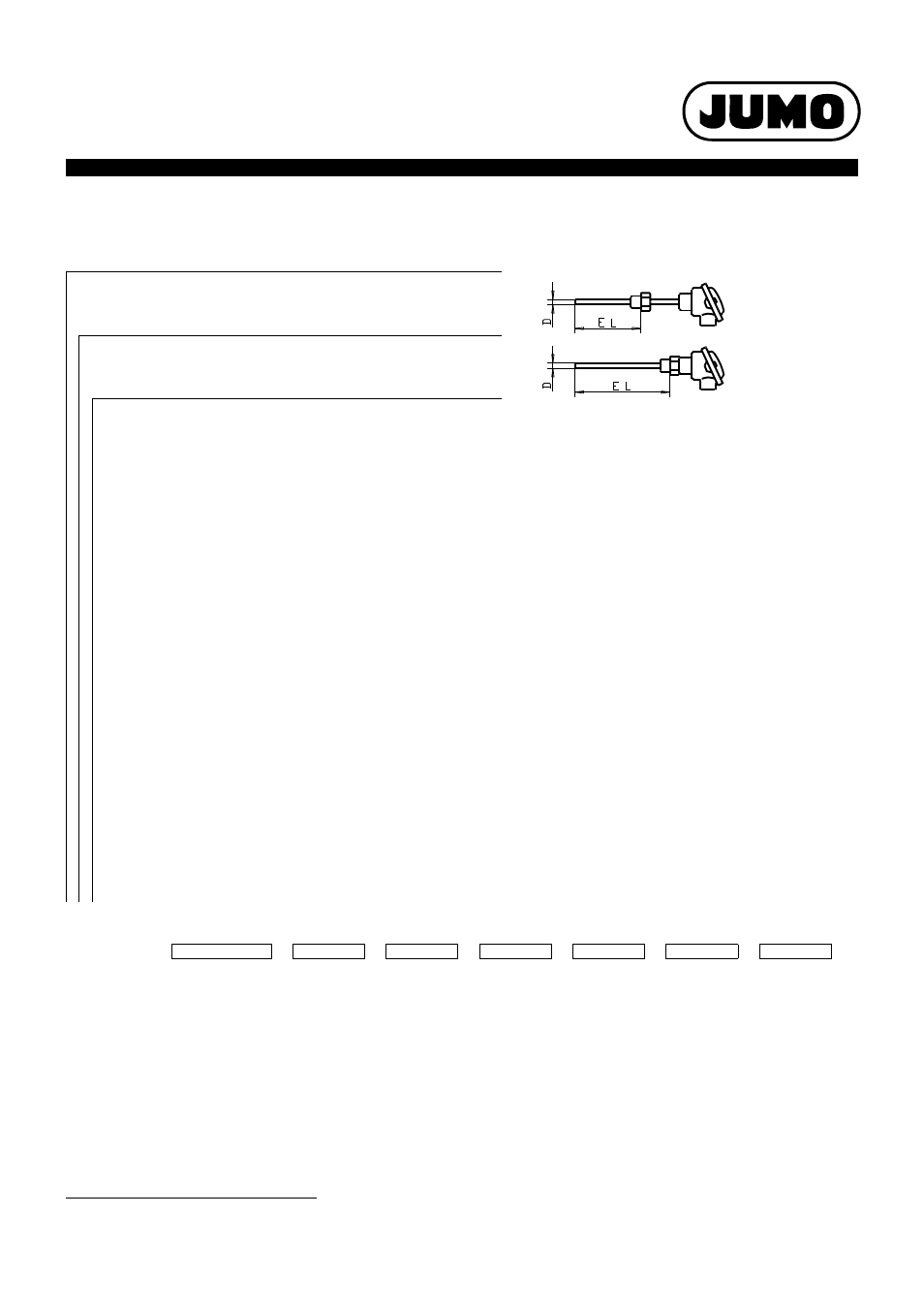

Screw-in thermocouples with connection head form B
(1) Basic type
901020/10
Screw-in thermocouple
with extension tube and continuous sheath
901020/20
Screw-in thermocouple
without extension tube and continuous sheath
(2) Operating temperature in °C
x x
150
-200 to +600 °C
x x
165
-200 to +800 °C
(3) Measuring insert
x x
1040
1x Fe-CuNi "J“
x x
1042
1x Fe-CuNi "L“
x x
1043
1x NiCr-Ni "K“
x x
2040
2x Fe-CuNi „J“
x x
2042
2x Fe-CuNi „L“
x x
2043
2x NiCr-Ni „K“
(4) Sheath diameter D in mm
x x
9
Ø 9 mm
(5) Fitting length EL in mm (100
≤
EL
≤
1000)
x x
160
160 mm
x x
200
200 mm
x x
250
250 mm
x x
300
300 mm
x x
400
400 mm
x x
600
600 mm
x x
...
Specification in plain text (50 mm steps)
(6) Process connection
x x
104
Screw-connection G 1/2
x x
105
Screw-connection G 3/4
x x
106
Screw connection G 1
x x
126
Screw-connection M 18 x 1.5
(7) Extra codes
x x
000
no extra code
x
306
Extension tube 70 mm
x x
320
terminal head Form BUZ
x x
321
terminal head Form BUZH
x x
322
Connection head form BBK
x x
331
1x transmitter programmable output 4 to 20 mA/20 to 4 mA
3
, data sheet 70.7010
x x
335
2x transmitter programmable output 4 to 20 mA/20 to 4 mA
3
, data sheet 70.7010
x x
859
1x Wtrans B programmable head transducer with radio transmission, data sheet 70.7060
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Order code
-
-
-
-
-
/
,...
1
Order example
901020/10
-
150
-
1042
-
9
-
250
-
104
/
000
1
List extra codes in sequence, separated by commas.
3
Specify measuring range and output signal in plain text.
