Note: Thermowell, Data Sheet 90.9721
Stock versions
Order details:

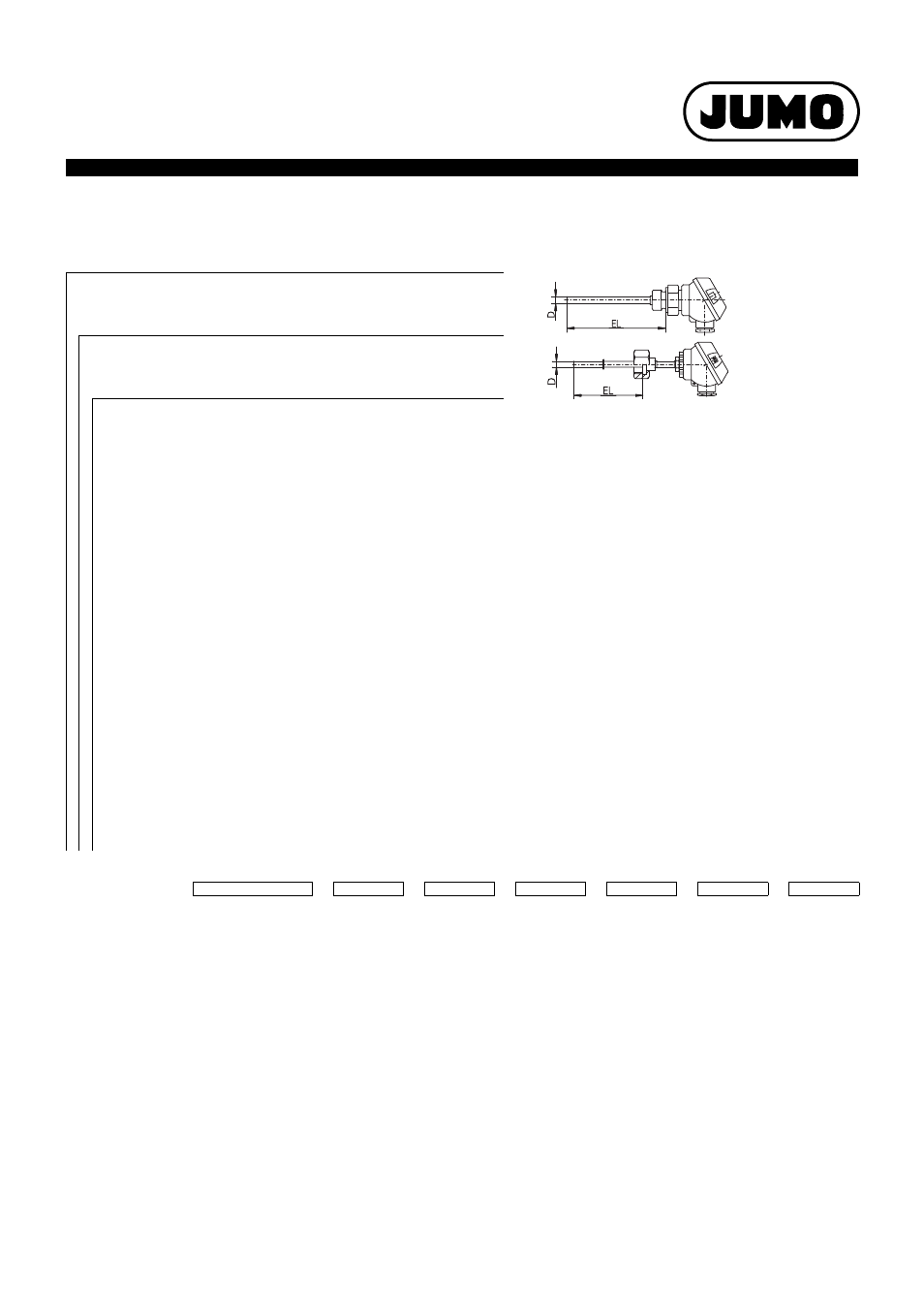

Screw-in thermocouples with terminal head form J
(1) Basic type
901030/10
Screw-in thermocouple
with continuous thermowell
901030/20
Screw-in thermocouple
with continuous thermowell
and union nut
(2) Operating temperature in °C
x x
130
-200 to +400°C
x x
150
-200 to +600°C
x x
165
-200 to +800°C
(3) Measuring insert
x x
1040
1 x Fe-CuNi
„
J
“
x x
1042
1 x Fe-CuNi
„
L
“
x x
1043
1 x NiCr-Ni
„
K
“
x x
2040
2 x Fe-CuNi
„
J
“
x x
2042
2 x Fe-CuNi
„
L
“
x x
2043
2 x NiCr-Ni
„
K
“
(4) Protection tube diameter D in mm
x x
6
Ø 6mm
(5) Fitting length EL in mm (50
≤ EL ≤ 600, EL ≥ 150 for basic type 901030/20)
x
50
50mm
x
75
75mm
x
100
100mm
x x
150
150mm
x x
200
200mm
x x
250
250mm
x x
300
300mm
x x
...
please specify in plain text (50mm steps)
(6) Process connection
x
102
Screw connection (thread) G 1/4
x
103
Screw connection (thread) G 3/8
x
104
Screw connection (thread) G 1/2
x
164
Union nut G 1/2
x
165
Union nut G 3/4
(7) Extra codes
x x
000
None
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Order code
-
-
-
-
-
/
Order example
901030/10
-
130
-
1042
-
6
-
100
-
104
/
000
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Part No.
901030/10
-
150
-
1042
-
6
-
100
-
104
/
000
90/00407109
901030/10
-
150
-
1042
-
6
-
200
-
104
/
000
90/00520186
