Order specifications:

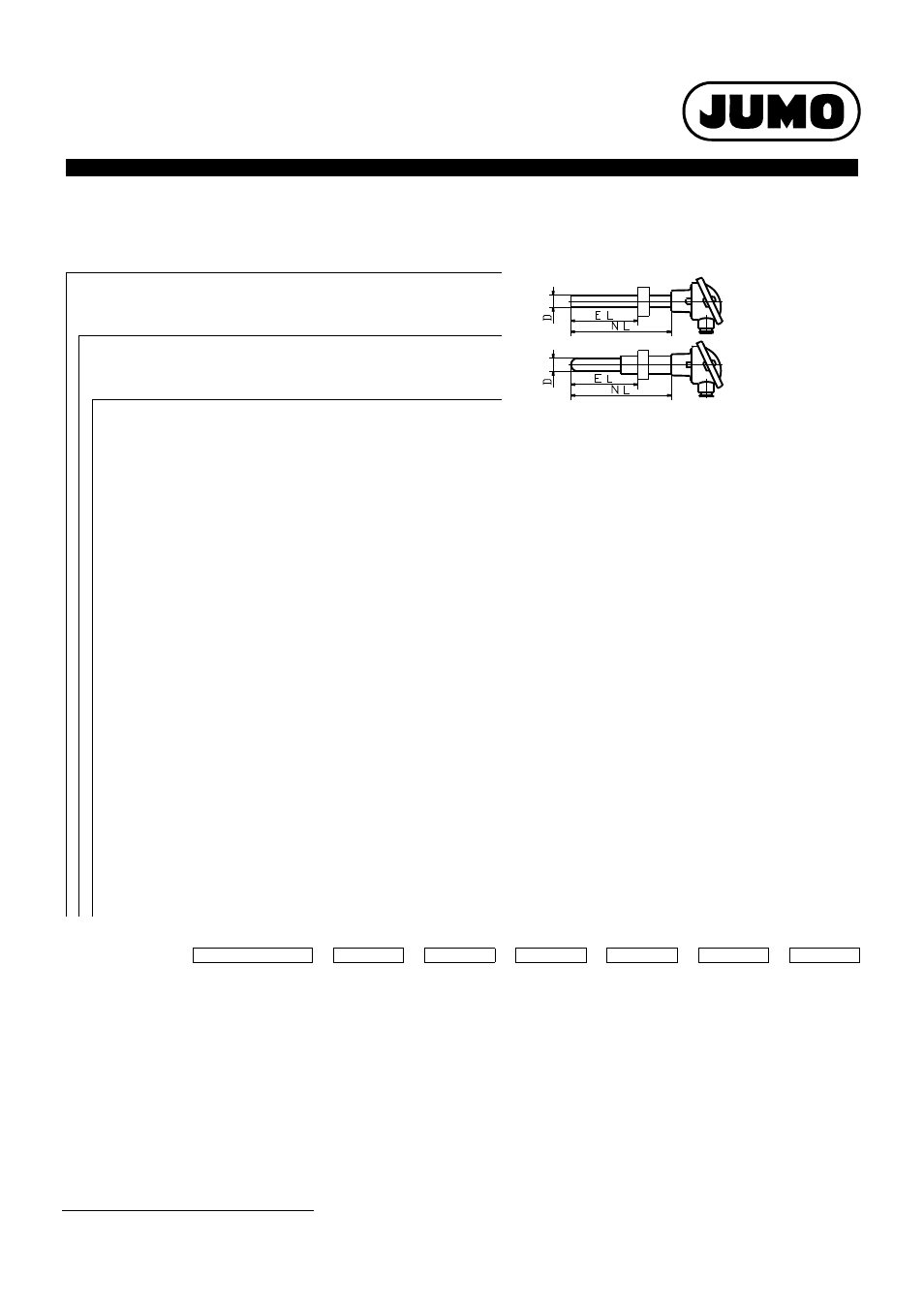

Push-in thermocouples with form A connection head
(1) Basic type
901110/10
Push-in thermocouple
with continuous sheath
made of heat resistant steel
901110/20
Push-in thermocouple
with stepped sheath
made of ceramic
(2) Measuring insert / operating temperature in °C
x
1040
1x Fe-CuNi „J“, operating temperature -200 to +600 °C
x
1042
1x Fe-CuNi „L“, operating temperature -200 to +600 °C
x x
1043
1x NiCr-Ni „K“, operating temperature -200 to +1200 °C
x
1044
1x Pt10Rh-Pt „S“, operating temperature 0 to 1300 °C
x
1046
1x Pt30Rh-Pt 6 Rh „B“, operating temperature 600 to 1600 °C
x
2040
2x Fe-CuNi „J“, operating temperature -200 to +600 °C
x
2042
2x Fe-CuNi „L“, operating temperature -200 to +600 °C
x x
2043
2x NiCr-Ni „K“, operating temperature -200 to +1200 °C
x
2044
2x Pt10Rh-Pt „S“, operating temperature 0 to 1300 °C
x
2046
2x Pt30Rh-Pt 6 Rh „B“, operating temperature 600 to 1600 °C
(3) Sheath diameter D in mm
x
15
Ø 15 mm (support tube Ø 22 mm)
x
22
Ø 22 mm
x
24
Ø 24 mm (support tube Ø 32 mm)
(4) Nominal length NL in mm (180
≤
NL
≤
1400)
x x
500
500 mm, fitting length (EL) 100 to 460 mm
x x
710
710 mm, fitting length (EL) 100 to 670 mm
x x
1000
1000 mm, fitting length (EL) 100 to 960 mm
x x
1400
1400 mm, fitting length (EL) 100 to 1360 mm
x x
...
Specification in plain text (100 mm steps)
(5) Process connection
x x
000
None
x
256
Sheath screw-connection G 1 (for a 22 mm diameter only), steel
x x
669
Stop flange Ø 22 mm, DIN 43734
x
671
Stop flange Ø 32 mm, DIN 43734
(6) Sheath material
x
27
Steel X 18 CrNi 28 Mat. No. 1.4749 (operating temperature up to +1150 °C)
x
28
Steel X 15 CrNiSi 25 20 Mat. No. 1.4841 (operating temperature up to +1150 °C)
x
93
Ceramic C 610 (KER 610) (operating temperature up to +1300 °C)
x
94
Ceramic C 799 (KER 710) (operating temperature up to +1600 °C)
(7) Extra codes
x x
000
None
x x
331
1x transmitter programmable output 4 to 20 mA/20 to 4 mA
1
, data sheet 70.7010
x x
859
1x Wtrans B programmable head transducer with radio transmission, data sheet 70.7060
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Order code
-
-
-
-
-
/
Order example
901110/10
-
1042
-
22
-
710
-
669
-
27
/
000
1
Specify measuring range and output signal in plain text.
