4
Getting Started
1. Install the batteries. See How To Install The Alkaline Batteries .
2. Install the sensor. See How To Install Or Change the Sensor .
NOTE: Installation of the batteries and sensor is required before use.
3. Press the control button to power on the TEK-Mate.
4. Wait for the TEK-Mate to warm up. All three LEDs will illuminate during warm up. When the
High sensitivity LED starts flashing and a chirping sound is heard, the TEK-Mate is ready to
find leaks.
The INFICON TEK-Mate Refrigerant Leak Detector provides similar responses to all CFC's,
HCFC's, HFC's and refrigerant blends (e.g. R-410A, R407c) as well as SF6.
How To Install The Alkaline Batteries
1. Remove the battery cover by releasing the latch and sliding the cover down and off the
handle.
2. Install two “D” size alkaline batteries as shown in Figure 1.
3. Reinstall the battery cover by aligning it with the handle and sliding it up until the latch
engages.
When the batteries reach the end of their life, the green Low Battery indicator will start flashing.
While the batteries may operate the TEK-Mate up to one hour after the Low Battery indicator
starts flashing, the batteries should be replaced as quickly as possible.

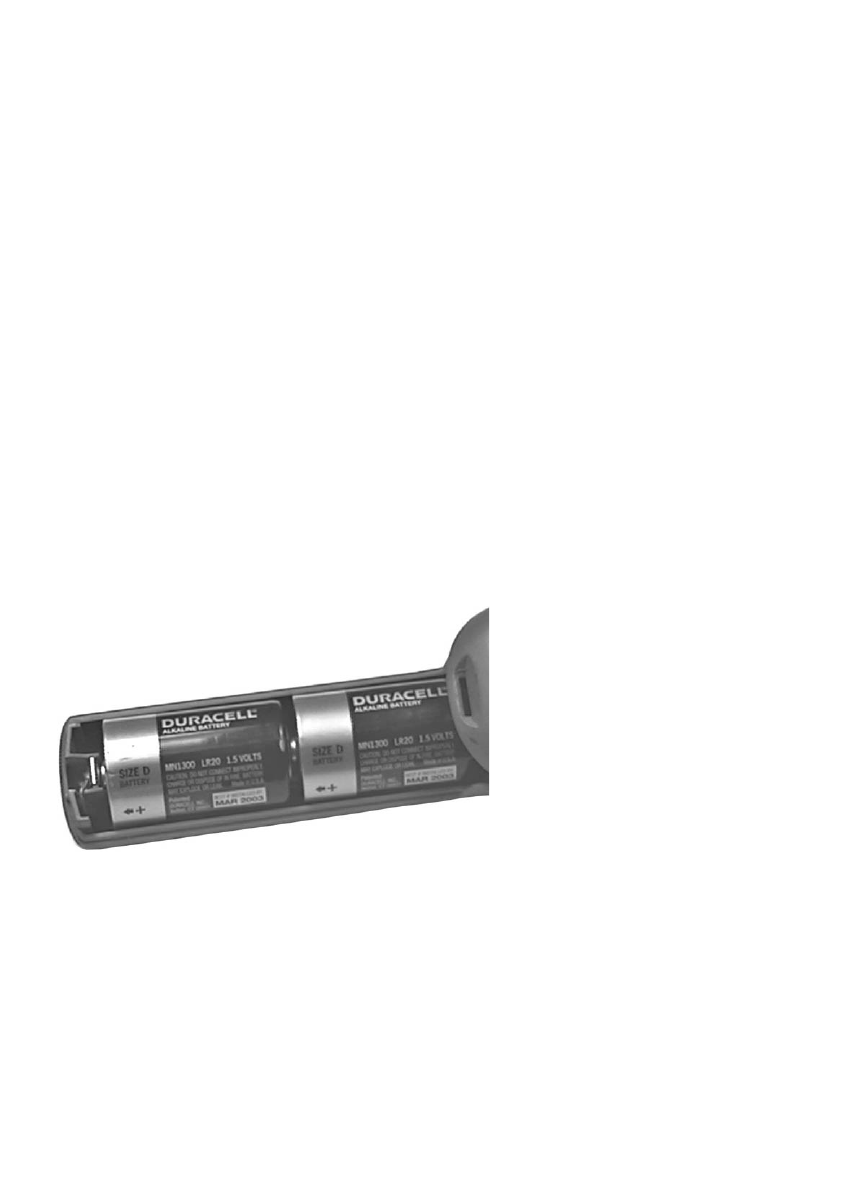

Figure 1. Properly Installed Alkaline Batteries
Disposing Of The Alkaline Batteries
At the end of the life of a set of alkaline batteries, please dispose of them according to
applicable state and local regulations. In the absence of such regulations, INFICON encourages
customers to recycle and/or dispose of the cells through voluntary waste recycling programs.
+
- +
-
