HDA 5500 User Manual
- 10 -

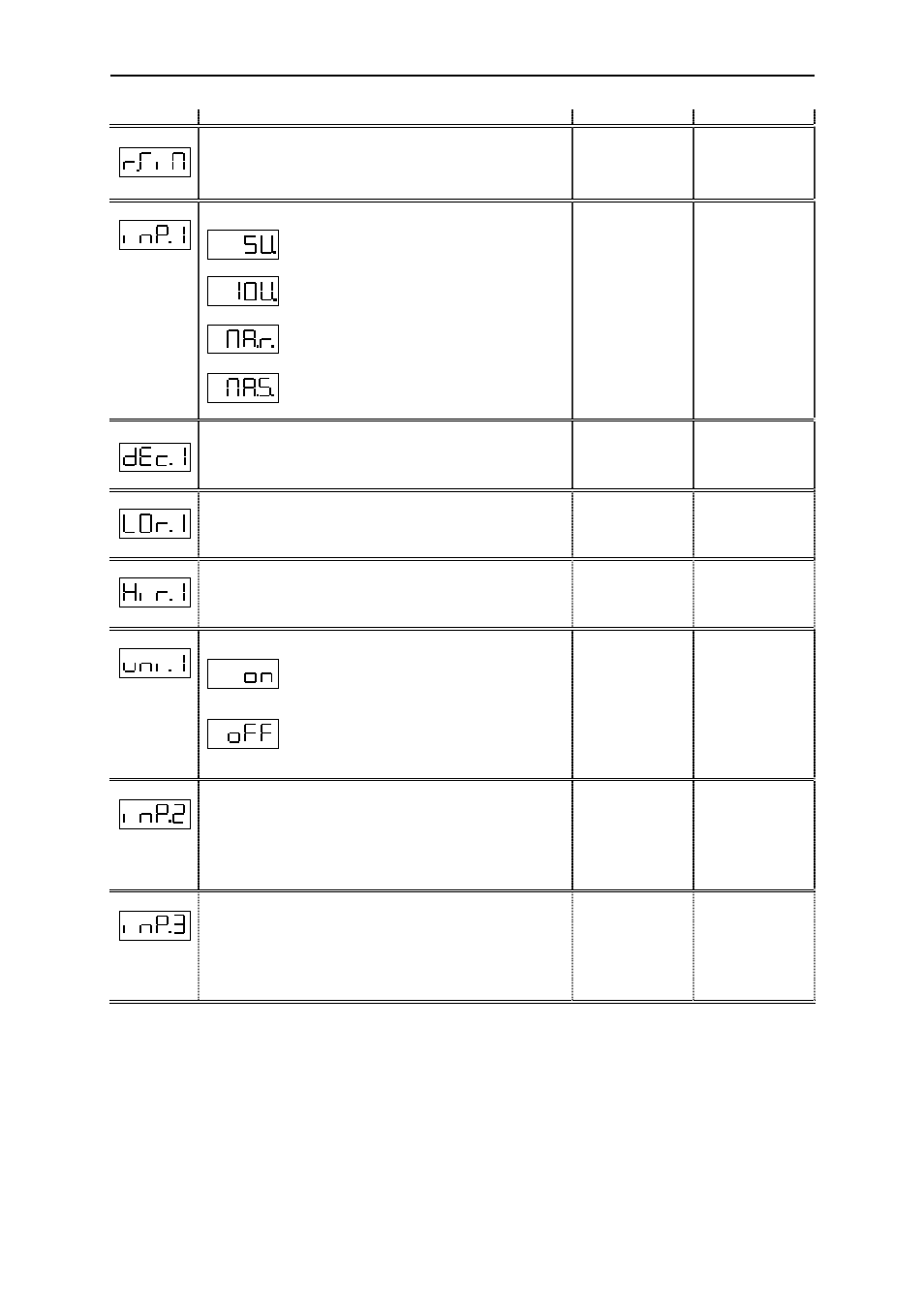

Menu point Setting Setting range Default setting
Reset time (r.TiM)
Indicates how long in seconds the last peak / lowest value is
displayed for.
0..3600 0
Input signal sensor 1 (inP.1)
0..5 V
0..10 V
4..20 mA source
4..20 mA sink
5 V
10 V
mA.r.
mA.S. mA.S.
Decimal place sensor 1 (dEc.1)
No. of decimal place(s) of the display of measured value of
sensor 1
0..0.000 0.0
Lower display range sensor 1 (LOr.1)
Lower limit of the display range of sensor 1
-999..9899 0
Upper display range sensor 1 (Hir.1)
Upper limit of the display range of sensor 1
-899..9999 100.0
Background lighting for the unit label for sensor 1 (uni.1)
Lighting behind unit label is switched on when
value of sensor 1 is displayed.
Lighting behind unit label is switched off when
value of sensor 1 is displayed.
on
oFF on
Input signal sensor 2 (inP.2)
Similar to input signal sensor 1 (see above), and likewise for:
• Decimal place (dEc.2)
• Lower display range (Lor.2)
• Upper display range (Hir.2)
• Background lighting (uni.2)
5 V
10 V
mA.r.
mA.S. mA.S.
Input signal sensor 3 (inP.3)
Similar to input signal sensor 1 (see above), and likewise for:
• Decimal place (dEc.3)
• Lower display range (Lor.3)
• Upper display range (Hir.3)
• Background lighting (uni.3)
5 V
10 V
mA.r.
mA.S. mA.S.
