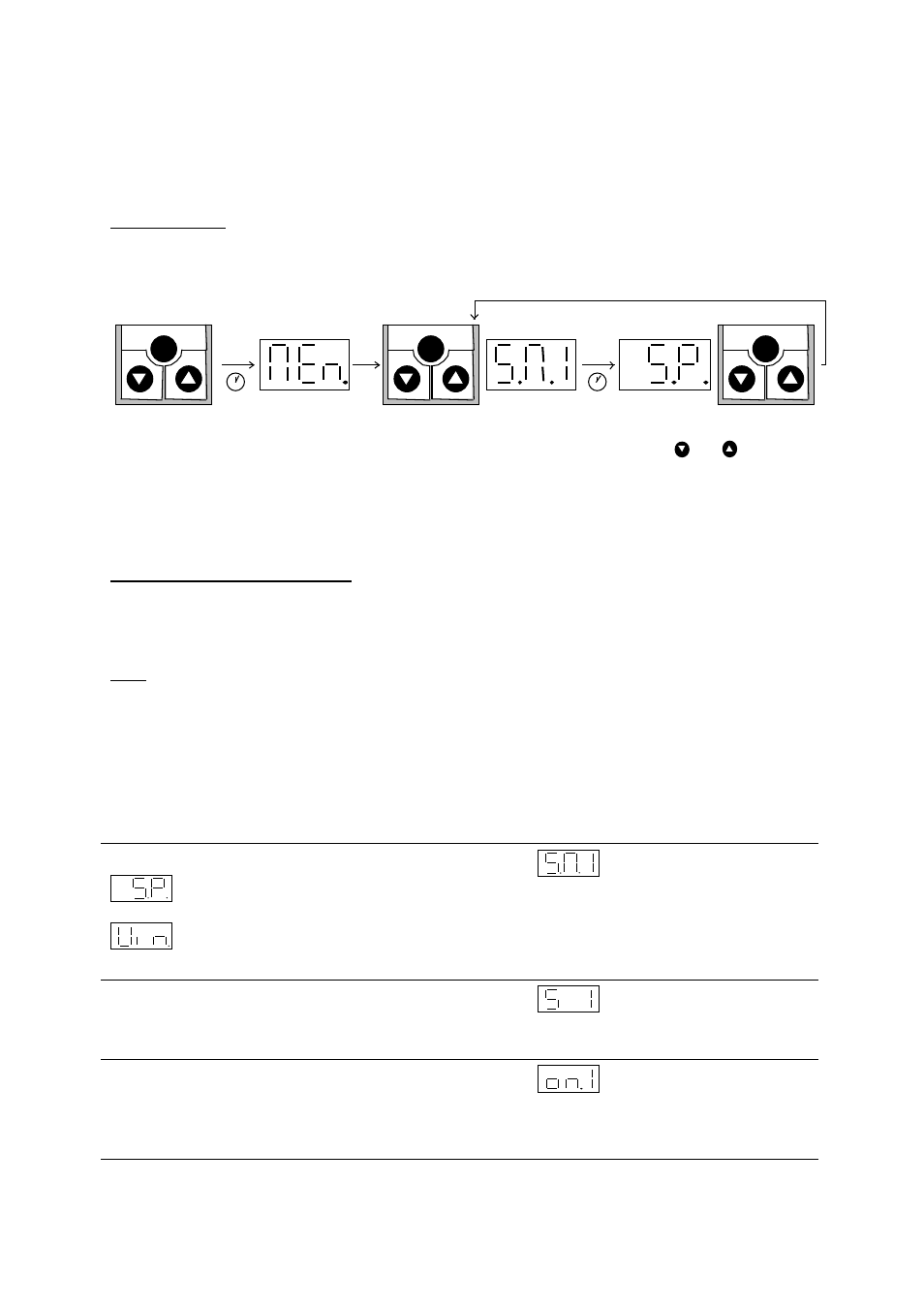

In order to adapt the unit to a particular application, the function of the EDS 300 can be
altered via several basic settings. These are combined in a menu.
6.1 Altering the basic settings
Important note: when the menu is activated no switching operations are carried out.
Switch off supply voltage or disconnect the unit from the supply voltage.
3 s
display
(release
“mode” key)
mode
press “mode” key and
hold down. Switch
on supply voltage
(hold key down for 3s)
mode mode
2 s
Use or to alter
setting, then select next
menu point .
press “mode” key until the
required menu point appears
in the display .
(for summary, see 6.2)
To close the basic setting menu
Call up the menu point "END", set to "YES", the EDS 300 returns to the normal display
mode after 2 seconds.
Note:
If after about 50 seconds no keys have been pressed, the menu automatically closes down.
Any changes which may have been made will not be saved.
6.2 Summary of the basic settings
Setting Display Setting
range Pre-
setting
Switching mode switching output 1 (Sm 1)
Switching output 1 operates in switching
point / hysteresis function
Switching output 1 operates in window
function
SP/ Win SP
Switching direction switching output 1 (S 1)
“ON”: normally open function.
“OFF”: normally closed function.
ON/ OFF ON
Switch-on delay switching output 1 (Ton 1)
Time in seconds which must elapse, once the
particular switching point has been reached or
exceeded, before switching will occur. 0.00..75s 0
