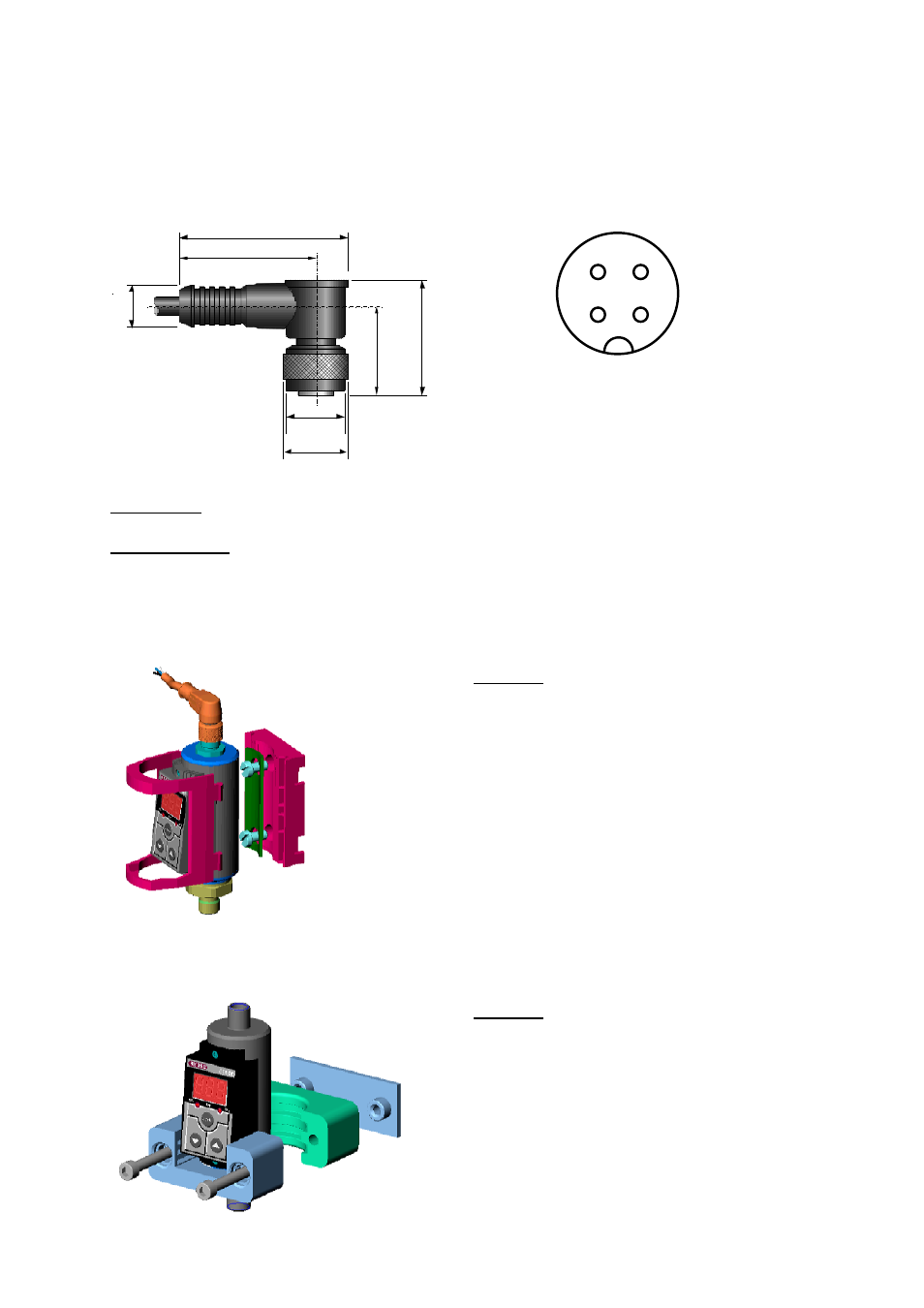

12. Accessories
12.1 For electrical connection
4-pole connector with flying leads, Female interface
M12x1, 90° angled
1 2
3 4
All dimensions
are in inches and
(millimeters)
Wire colors: Pin 1: brown, Pin 2: white, Pin 3: blue, Pin 4: black
Available types: ZBE 06-02: Female Screw-Lock Type 90° Connector (2 meter cord)
ZBE 06-05: Female Screw-Lock Type 90° Connector (5 meter cord)
12.2 For mechanical connection
ZBM 300 clamp for wall-mounting the EDS 300 (material: polypropylene)
Mounting:
• Glue damping strips into the recesses of
the base plate.
• Mount base plate, the top is indicated by
"OBEN", "TOP" and 2 arrows.
• Insert EDS 300.
• Fit clip (only one possible position) and
press hard on the cross-pieces until they
engage.
ZBM 310 clamp for wall-mounting the EDS 300 (material: polypropylene, aluminium
AlSi12, steel)
Mounting:
• Weld the steel base plate
• Mount EDS 300 in accordance with the
drawing
13. Dimensions
1.528 (38.8)
1 .24 (31.5)
Ø
0.
43
3
(1
1.
0)
0.
80
7
(2
0
.5
)
1.
04
3
(2
6.
5)
M12x1
Ш 0 .571 (14.5)
