WARNING!
HYDAC offers either a 7/8” - 14UNF gas valve body or M50x1.5 gas valve body depending on accumulator size and pressure.
Never under any circumstances should a 7/8” gas valve body be used in an accumulator assembly with a shell having a ~ ø 2” opening
in the shell. Do not add spacers of any kind!
Never under any circumstances should a 2” gas valve body be used in an accumulator assembly with a shell having a ~ø 7/8” opening in
the shell. Do not add spacers of any kind!

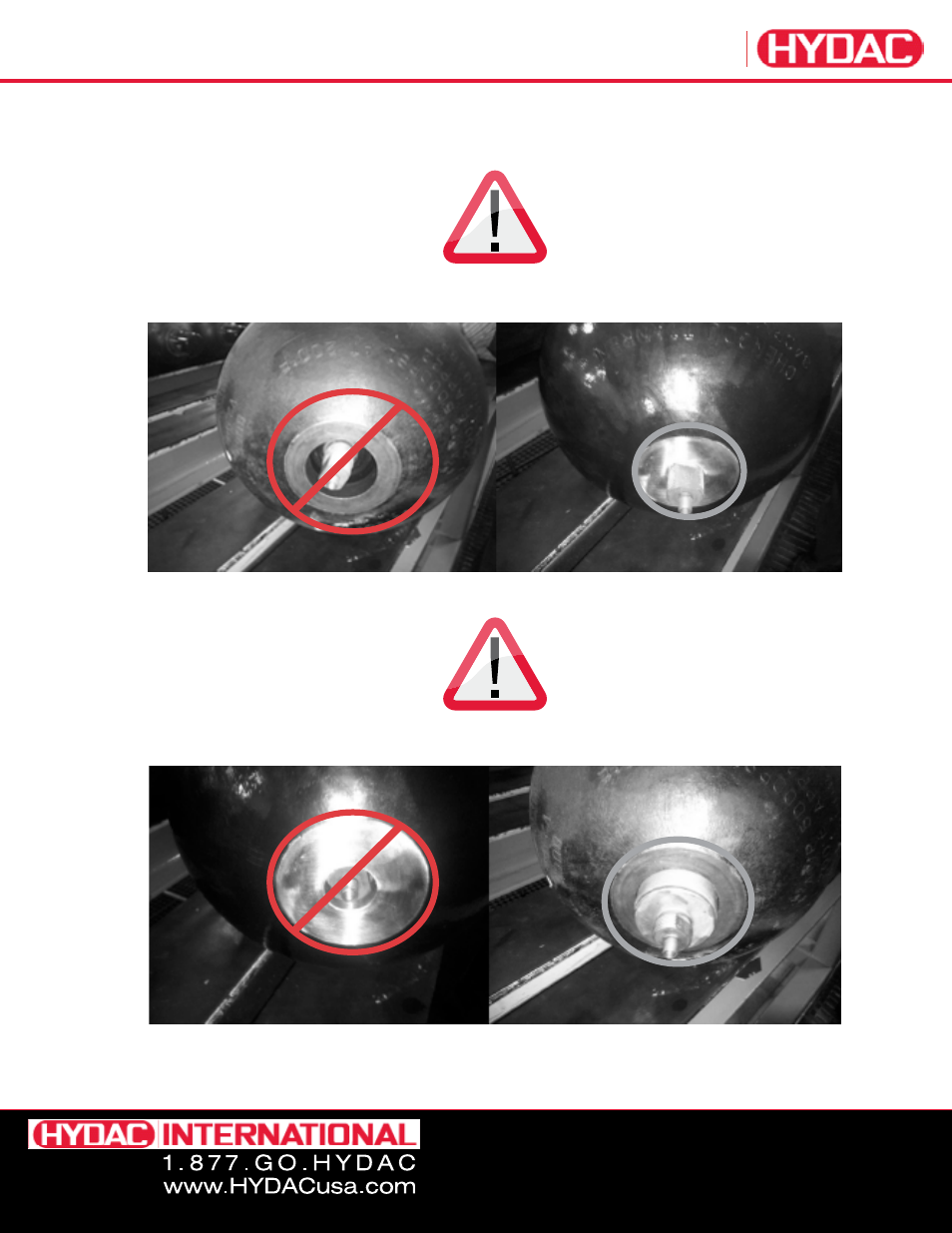

Figure 1: 7/8” (22.3mm) gas valve body
in ~ш2” (~ш50.8mm) shell opening
Figure 3: 2” (50.8mm) gas valve body
in ~ш2” (~ш22.3mm) shell opening
Figure 2: 7/8” (22.3mm) gas valve body
in ~ш7/8” (~ш22.23mm) shell opening
Figure 4: 7/8” (50.8mm) gas valve body
in ~ш7/8” (~ш50.8mm) shell opening
Maintenance
