Exploded product view & parts – Gast Linear Series Oilless User Manual
Page 8
DBM40, 60, 80
DBP40
ij
Ĵ
ĵ
Ķ
IJ
ķ
ĸ
Ĺ
ĺ
IJı
IJIJ
IJij
IJĴ
IJĵ
IJĶ
IJķ
IJĸ
IJĹ
IJĺ
ijı
ijIJ
ijij
ijĴ
ijĵ
ijĶ
ijķ
ijĸ

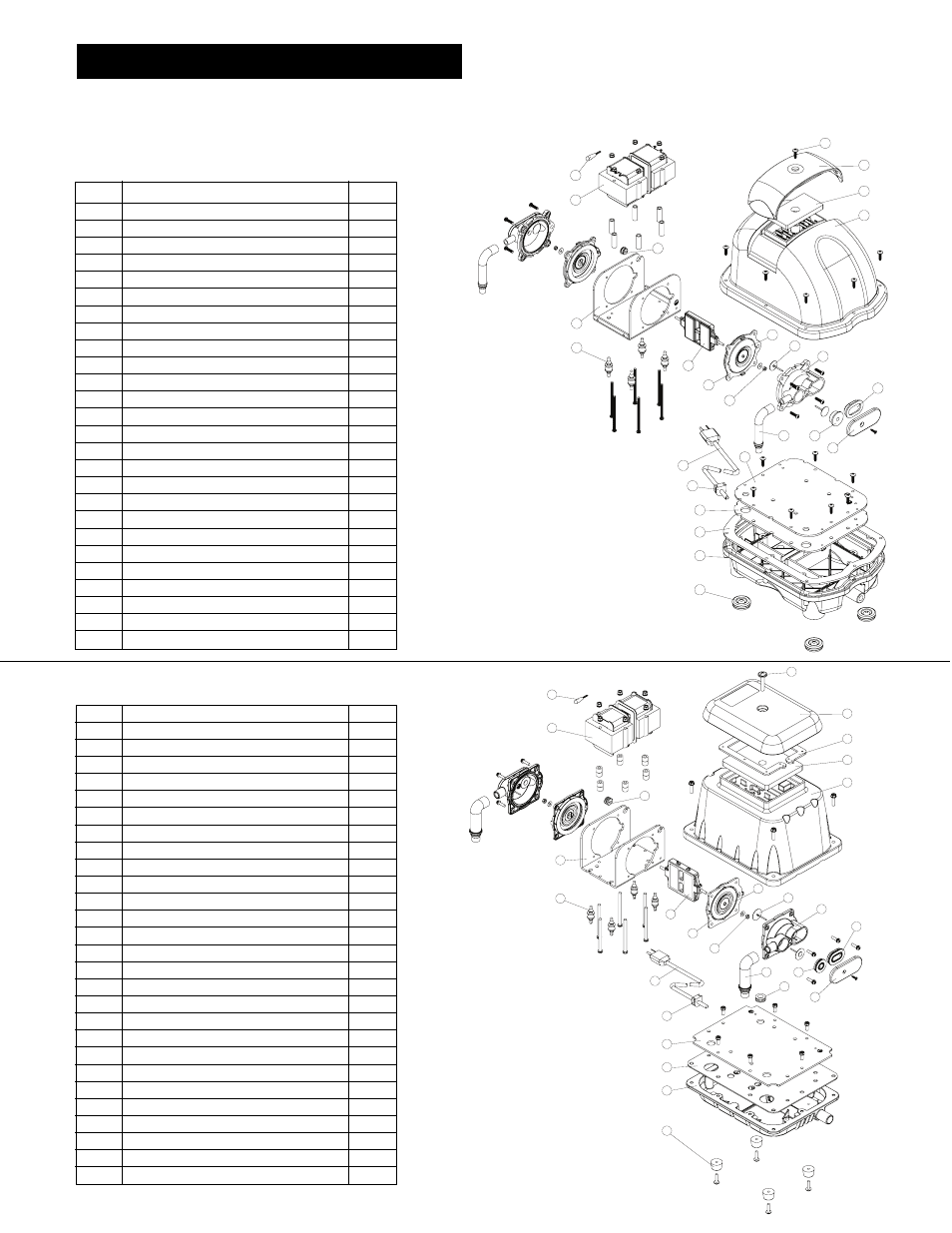

EXPLODED PRODUCT VIEW & PARTS
* Your model may vary in appearance and configuration. However, internal components will be similar to those shown.
Parts shown are for stock models. For specific OEM models, please consult the factory.
When corresponding or ordering kits, please give complete model and serial numbers.
Ĵ
ĵ
Ķ
ķ
ĸ
Ĺ
ĺ
IJı
IJij
IJĴ
IJ
IJIJ
IJĵ
IJķ
IJĶ
IJĸ
IJĹ
IJĺ
ijı
ijIJ
ijij
ijĴ
ijĵ
ijĶ
ijķ
ij
NO.
DESCRIPTION
QTY
1
TOP SCREW
1
2
FILTER COVER
1
3
FOAM SEAL
1
4
FILTER
1
5
UPPER HOUSING
1
6
THERMOSTAT
1
7
ELECTROMAGNET
2
8
WIRE STOPPER
1
9
U-SHAPED COIL FRAME
1
10
VIBRATION CONTROL RUBBER
4
11
ACTIVATING ARM
1
12
DIAPHRAGM
2
13
DIAPHRAGM FRAME
2
14
U NUT
2
15
CHECK VALVE
4
16
L – TUBE
2
17
DIAPHRAGM HOUSING
2
18
CHAMBER SEAL (ROUND)
2
19
CHAMBER SEAL (OVAL)
2
20
SIDE COVER (STEEL)
2
21
CORD PROTECTOR
1
22
STEEL PLATE
1
23
GASKET
1
24
LOWER HOUSING
1
25
RUBBER FEET
4
26
CORD RELIEF
1
27
POWER CORD
1
NO.
DESCRIPTION
QTY
1
TOP SCREW
1
2
FILTER COVER
1
3
FILTER
1
4
UPPER HOUSING
1
5
THERMOSTAT
1
6
ELECTROMAGNET
2
7
WIRE STOPPER
1
8
U-SHAPED COIL FRAME
1
9
VIBRATION CONTROL RUBBER
4
10
ACTIVATING ARM
1
11
DIAPHRAGM
2
12
DIAPHRAGM FRAME
2
13
U NUT
2
14
CHECK VALVE
4
15
L - TUBE
2
16
DIAPHRAGM HOUSING
2
17
CHAMBER SEAL (ROUND)
2
18
CHAMBER SEAL (OVAL)
2
19
SIDE COVER (STEEL)
2
20
STEEL PLATE
1
21
GASKET
1
22
GASKET
1
23
LOWER HOUSING
1
24
RUBBER FEET
4
25
CORD RELIEF
1
26
POWER CORD
1
8
