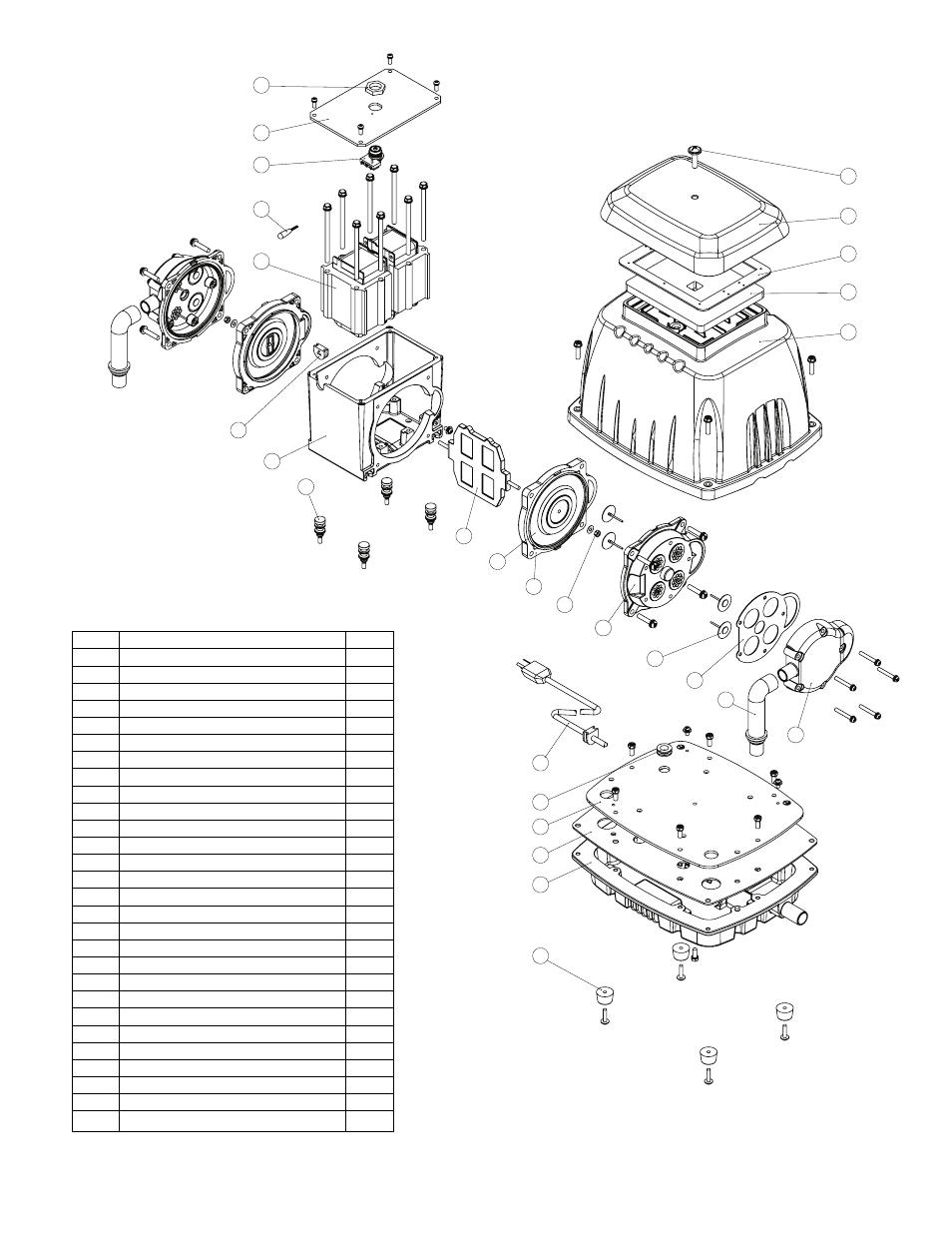

Gast Linear Series Oilless - Manual (Page 10)

NO. DESCRIPTION QTY
1 TOP SCREW 1
2 FILTER COVER 1
3 FOAM SEAL 1
4 FILTER 1
5 UPPER HOUSING 1
6 SAFETY SYSTEM NUT 1
7 COIL COVER 1
8 SAFETY SYSTEM KIT 1
9 THERMOSTAT 1
10 ELECTORMAGNET 2
11 WIRE STOPPER 1
12 COIL FRAME 1
13 VIBRATION CONTROL RUBBER 4
14 ACTIVATING ARM 1
15 DIAPHRAGM 2
16 DIAPHRAGM FRAME 2
17 U – NUT 2
18 DIAPHRAGM HOUSING 2
19 CHECK VALVE 8
20 GASKET - 1 2
21 L – TUBE 2
22 DIAPHRAGM HOUSING COVER 2
23 POWER CORD 1
24 CORD PROTECTOR 1
25 STEEL PLATE 1
26 GASKET - 2 1
27 LOWER HOUSING 1
28 RUBBER FEET 4
