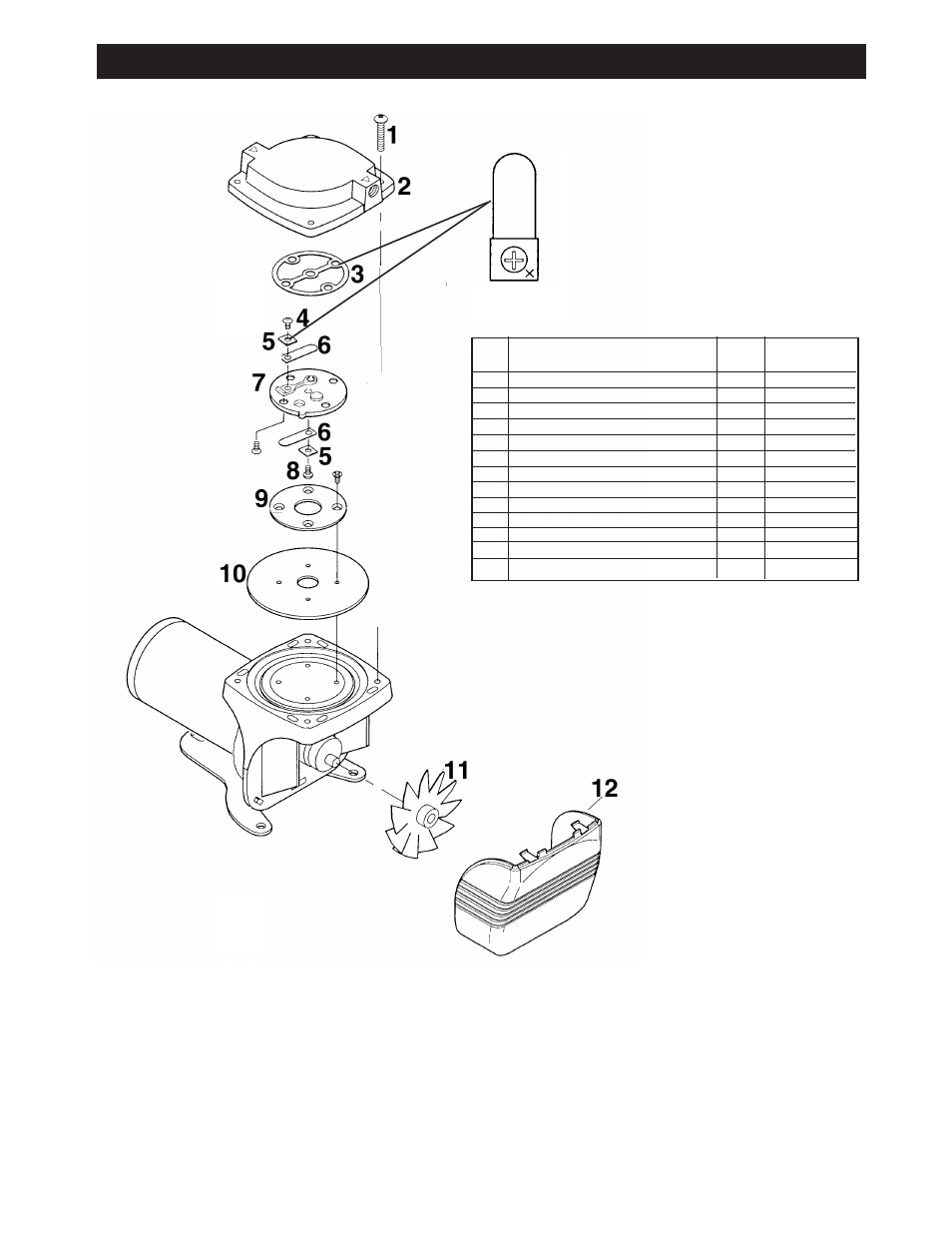

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION

*** Item not shown.

∆ Denotes parts included in the Service Kit.

Parts listed are for stock models. For specific OEM models,

please consult the factory.

When corresponding or ordering parts, please give complete

model and serial numbers.

REF DESCRIPTION

QTY

22D

1

HEAD SCREWS

4

SCR1001

2

HEAD

1

HDC1003

3 ∆

HEAD GASKET

1

ACC1018

4 ∆

INTAKE VALVE SCREW

1

SCR1017

5 ∆

RETAINER VALVE

2

AF819A

6 ∆

VALVE

2

AF795

7

VALVE PLATE

1

VPL1003

8 ∆

EXHAUST VALVE SCREW

1

SCR1015

9

RETAINER PLATE

1

RPL1003

10

DIAPHRAGM (NEOPRENE MATERIAL)

1

DPH1001

11

FAN

1

ACC1001

12

GRILLE

1

CVR1001

***

SERVICE KIT

1

K707
