Gast 1HAB-25 User Manual
Page 6
REF
DESCRIPTION
QTY
1HAB
1HAE
1
HEAD
1
AF508
2
∅
HEAD GASKET
1
AF518
3
∅
VALVE, OUTLET
1
AF531
4
VALVE PLATE
1
AF529
5
∅
VALVE, INLET
1
AF530
6
∅
GASKET, CYLINDER
1
AF519A
7
HEAD ASSEMBLY (Includes 1-6 above)
1
AG449
8
PRESSURE GAUGE
1
AF583
9
PRESSURE REGULATOR
1
AF592S
10
VACUUM GAUGE
1
AA640
11
REGULATOR
1
AA986B
12
NIPPLE
2
BA707
13
MANIFOLD
2
AF335
14
NIPPLE
1
BA711
15
FILTER/MUFFLER
1
AA617G
16
HOSE NIPPLE
2
AA254D
17
CYLINDER
1
AF510
18
∅
PISTON SEAL
2
AF526
19
∅
PISTON RING
2
AF527
20
∅
RIDER RING
1
AF594
21
PISTON ROD 1HAB-25, 1HAB-25B
1
AF560B
21
PISTON ROD 1HAE-25, 1HAE-25A
1
AF560E
22
FAN
1
AF533
23
SHROUD
1
AF534
24
FOOT SUPPORT ASSEMBLY
1
AE245
25
HANDLE
1
AF554
26
CORD ASSEMBLY 1HAB-25, 1HAB-25B
1
AA896
26
CORD ASSEMBLY 1HAE-25
1
AL239
26
CORD ASSEMBLY 1HAE-25A
1
AA819
***
SERVICE KIT 1HAB-25, 1HAE-25
1
K264C
***
SERVICE KIT 1HAB-25B, 1HAE-25A
1
K264C

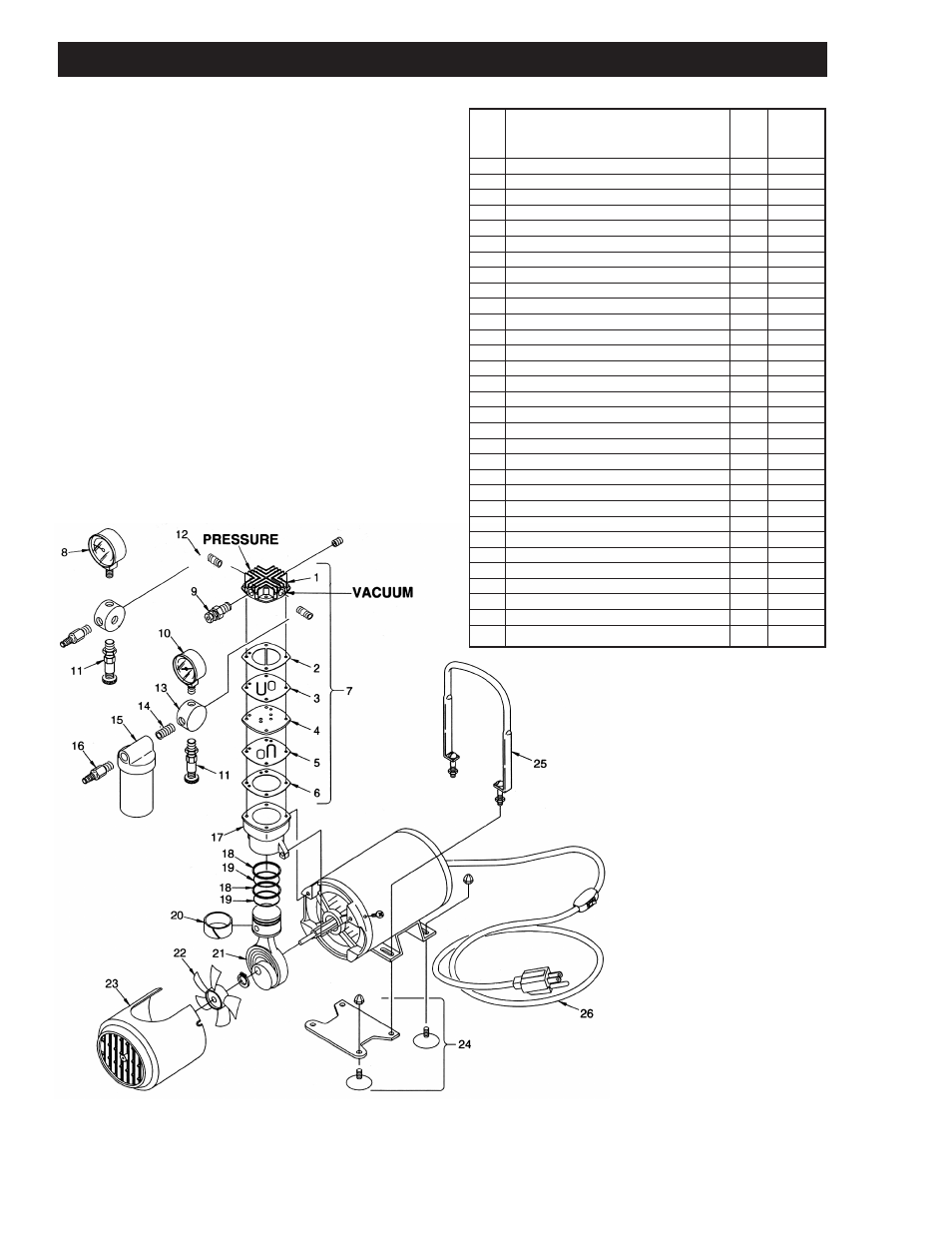

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION
1HAB / 1HAE SERIES
* 1HAB-25 shown.
*** Item not shown.
∆ Denotes parts included in the Service Kit.
∆ The service kit may contain parts for more than one model or style piston pump.
Parts not needed may be discarded.
Parts listed are for stock models. For specific OEM models, please consult the factory.
When corresponding or ordering parts, please give complete model and serial numbers.
