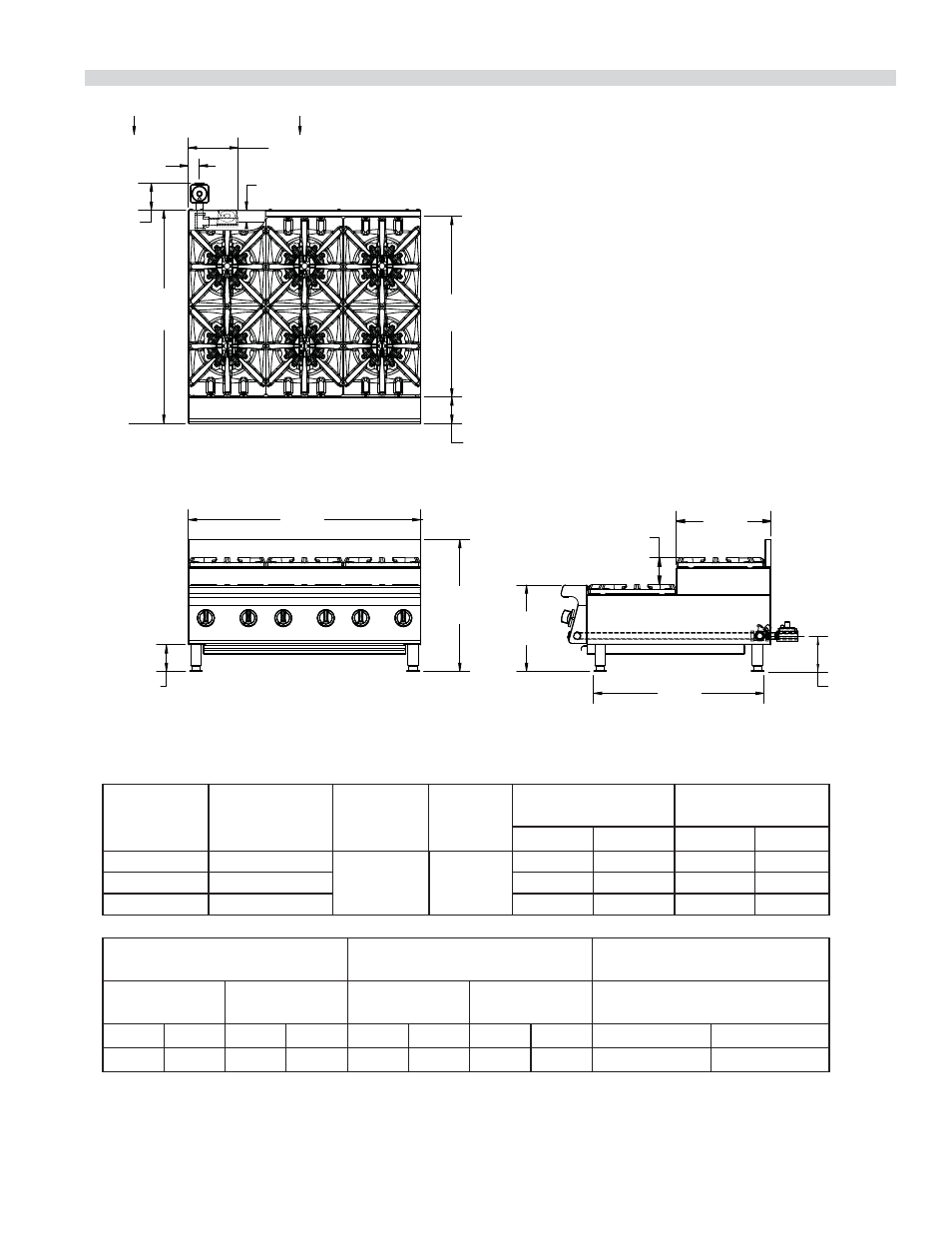

SPECIFICATIONS: STEP-UP HOT PLATES
32.0”
[814mm]
27.2”
[691mm]
4.0”
[102mm]
14.5”
[368mm]
4.0”
[102mm]
4.0”
[102mm]
19.8”
[503mm]
13.0”
[330mm]
26.0”
[660mm]
5.3”
[136mm]
WIDTH
4.0”
[102mm]
1.7”
[43mm]
1.7”
[43mm]
7.6”
[192mm]
GAS INLET w/REGULATOR
For use with Natural or Propane gas only.
Gas input ratings shown for installations up to
2000 ft., (610m), above sea level. Please specify
altitudes over 2000 ft. and gas type when ordering.
Garland/U.S. Range products are not approved or authorized
for home or residential use, but are intended for commercial
applications only.
Garland/U.S. Range will not provide service,
warranty, maintenance or support of any kind other than in
commercial applications.
* Please add 7” (178mm) in overall depth
with attachment condiment rail option
.
Part # 4531352 Rev 2 (09/09/13)
Model #
Width
In (mm)
Height
(w/std legs)
Depth
In (mm)
Total Input (BTU)
Shipping
Information
NAT
PRO
Lbs/Kg
Cu Ft
UTOG24-SU4
23-5/8 (600)
19-13/16
(503)
32 (814)
120,000
104,000
135/61
8
UTOG36-SU6
35-7/16 (900)
180,000
156,000
191/87
25
UTOG48-SU8
47-1/4 (1200)
240,000
208,000
247--/112
33
SUPPLY OPERATING PRESSURE
MANIFOLD OPERATING
PRESSURE
CLEARANCES
NATURAL GAS
PROPANE
NATURAL GAS
PROPANE
INSTALLATION TO
COMBUSTIBLE
"WC
MBar
"WC
Mbar
"WC
MBar
"WC
Mbar
Sides
Rear
7
17.5
11
27.5
4.5
11
10
24.5
7” (178mm)
6” (152mm)
