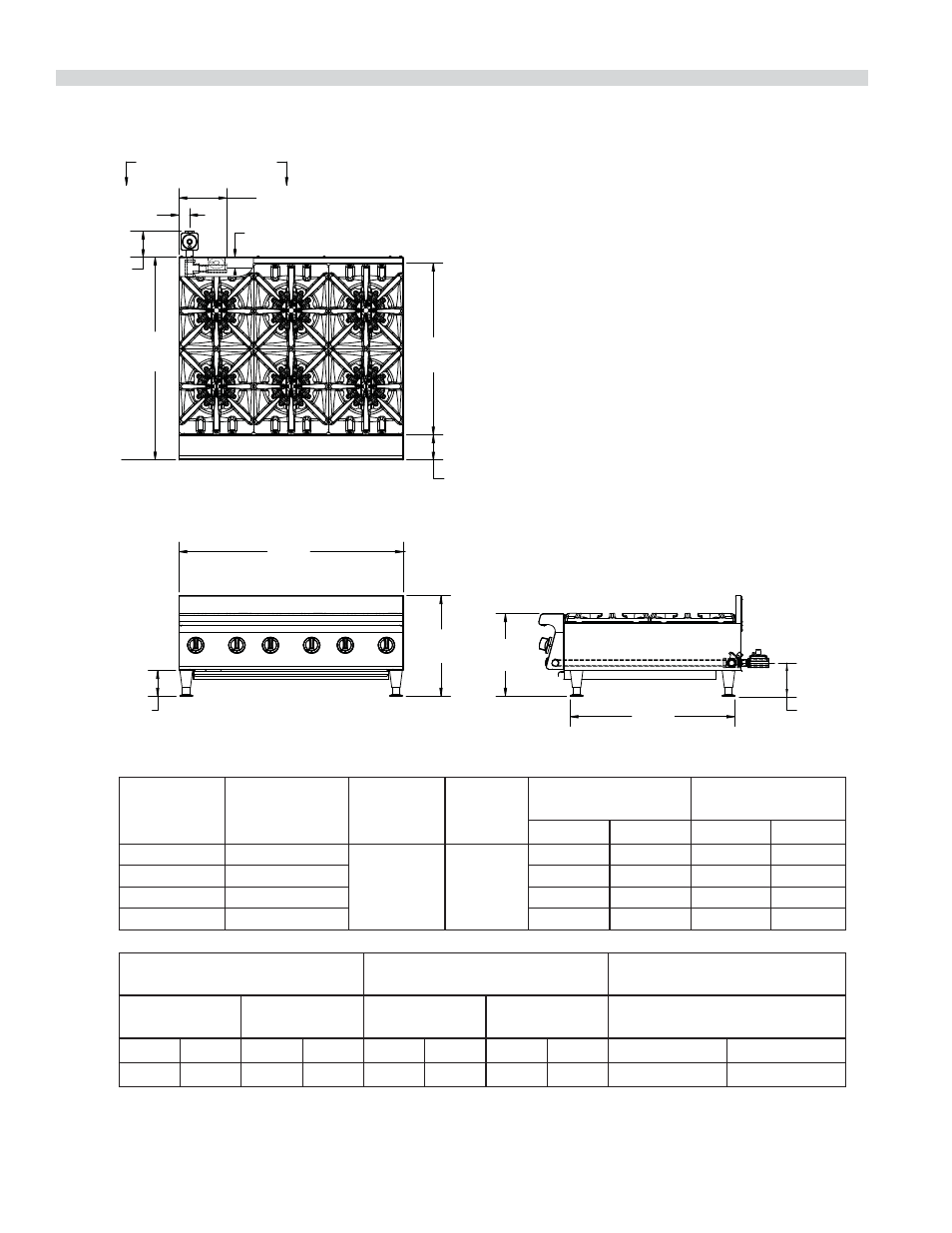

SPECIFICATIONS: HOT PLATES
32.0”
[814mm]
27.2”
[691mm]
4.0”
[102mm]
4.0”
[102mm]
15.8”
[402mm]
13.0”
[330mm]
26.0”
[660mm]
5.3”
[136mm]
WIDTH
4.0”
[102mm]
1.7”
[43mm]
1.7”
[43mm]
7.6”
[192mm]
STRAIGHT (STD) OR FLUSH-REAR
GAS INLET w/REGULATOR
* Please add 7 (178mm) in overall depth
with attachment condiment rail option .
For use with Natural or Propane gas only.
Gas input ratings shown for installations up to
2000 ft., (610m), above sea level. Please specify
altitudes over 2000 ft. and gas type when ordering.
Garland/U.S. Range products are not approved or authorized
for home or residential use, but are intended for commercial
applications only.
Garland/U.S. Range will not provide service,
warranty, maintenance or support of any kind other than in
commercial applications.
Part # 4531352 Rev 2 (09/09/13)
Model #
Width
In (mm)
Height
(w/std legs)
Depth
In (mm)
Total Input (BTU)
Shipping
Information
NAT PRO Lbs/Kg Cu Ft
UTOG12-2 11-13/16 (300)
13 (330) 32 (814)
60,000 52,000 73/33 4
UTOG24-4 23-5/8 (600) 120,000 104,000 135/61 8
UTOG36-6 35-7/16 (900) 180,000 156,000 191/87 25
UTOG48-8 47-1/4 (1200) 240,000 208,000 247/112 33
SUPPLY OPERATING PRESSURE MANIFOLD OPERATING
PRESSURE
CLEARANCES
NATURAL GAS PROPANE NATURAL GAS PROPANE INSTALLATION TO
COMBUSTIBLE
"WC MBar "WC Mbar "WC MBar "WC Mbar Sides Rear
7 17.5 11 27.5 4.5 11 10 24.5 14" (356mm) 6” (152mm)
