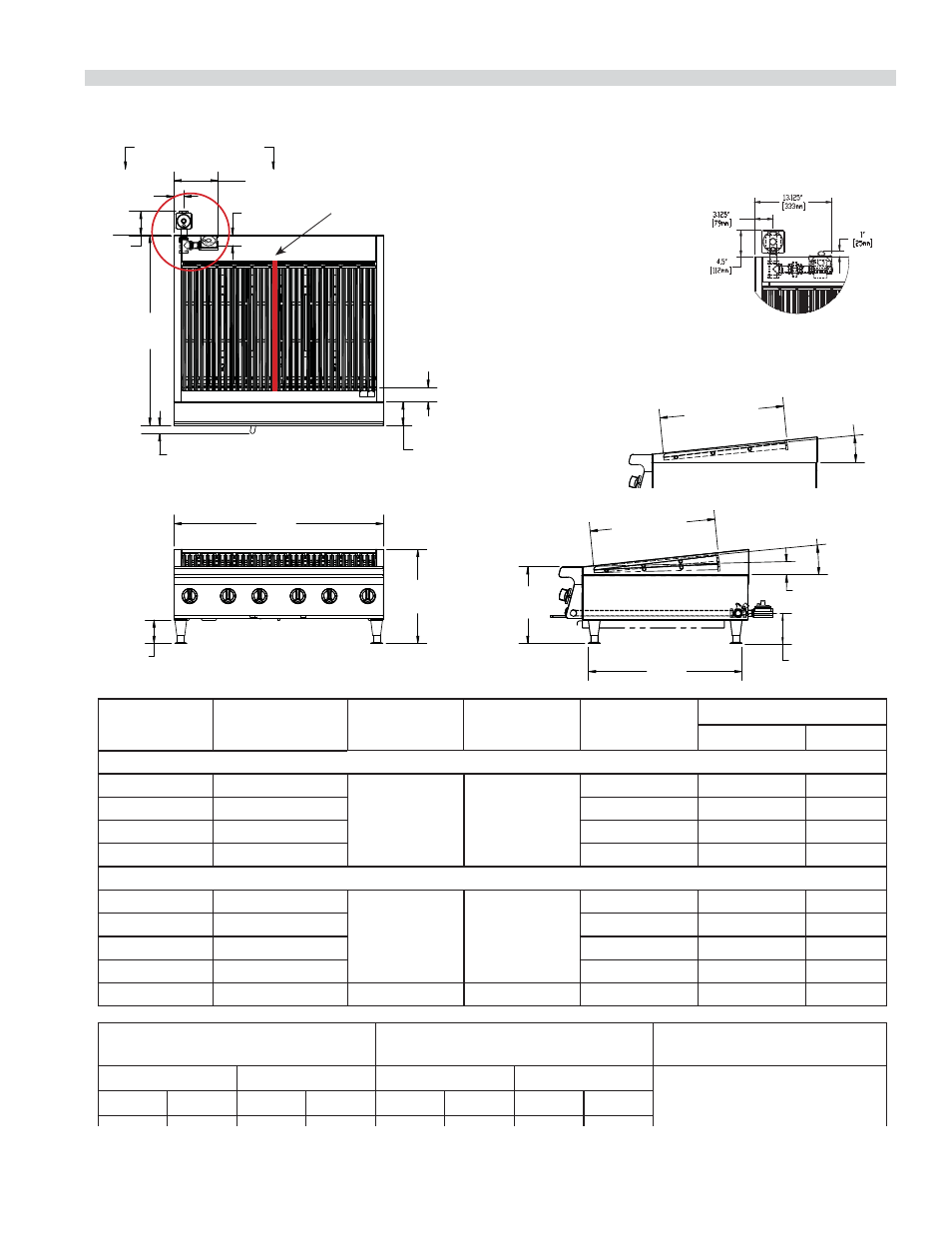

ESPECIFICACIONES: PARRILLAS DE ASAR RADIANTES
Part # 4531352 Rev 2 (09/09/13)
32.1”
[814mm]
4.0”
[102mm]
4.0”
[102mm]
1.4” [35mm] MAX PROFUNDIDAD DEL ASAA
15.9”
[404mm]
13.0”
[330mm]
26.0”
[660mm]
5.3”
[136mm]
ANCHO
4.0”
[102mm]
1.7”
[43mm]
1.7”
[43mm]
7.6”
[192mm]
ENTRADA DE GAS POSTERIOR
DIRECTA (ESTÁNDAR) O AL RAS
CON REGULADOR (3/4" N.P.T.)
21.2”
[538mm]
PROFUNDIDAD
DE LA PARRILLA
5.5°
POSICIÓN ALTA
DE LA PARRILLA
1.4°
POSICIÓN BAJA
DE LA PARRILLA
2.4”
[62mm]
PROFUNDIDAD
DE LA RANURA
PARRILLA AJUSTABLE
5.5°
ÁNGULO DE
LA PARRILLA
21.2”
[538mm]
PROFUNDIDAD
DE LA PARRILLA
PARRILLA NO AJUSTABLE
Los consumos nominales de gas
mostrados son para instalaciones
instaladas a alturas de hasta 2000
pies., (610 m), por encima del nivel
del mar. Por favor especifique cuan-
do se usará a altitudes mayores de
2000 pies.
*
*
Por favor, añadir 5 “(127mm) de profundidad en general
con la opción de ferrocarril apego condimento.
3.3” (84mm) Parrillas ajustables
UTBG48-AR48 y UTBG60-AR60
del DIVISOR
PROVEA DE GAS las OPCIONES de CONEXIÓN PARA el MODELO
UTBG72-NR72 1” DERECHO (STD) O CASI RASANTE; ENTRADA
POSTERIOR w/REGULATOR del GAS de N.P.T.
Modelo No.
Ancho
pulg. (mm)
Altura
(c/patas estánd.)
Profundidad
pulg. (mm)
Alimentación
total (BTU)
Información de despacho
Lbs/Kg
Cu Ft
PARRILLA AJUSTABLE
UTBG24-AR24
23-5/8 (600)
13 (330)
32 (814)
72,000
283/129
19
UTBG36-AR36
35-7/16 (900)
108,000
391/178
26
UTBG48-AR48
47-1/4 (1200)
144,000
514/283
34
UTBG60-AR60
59-1/16 (1500)
180,000
635/288
41
PARRILLA NO AJUSTABLE
UTBG24-NR24
23-5/8 (600)
13 (330)
32 (814)
72,000
283/129
18
UTBG36-NR36
35-7/16 (900)
108,000
391/178
25
UTBG48-NR48
47-1/4 (1200)
144,000
514/283
33
UTBG60-NR60
59-1/16 (1500)
180,000
635/288
40
UTBG72-NR72
70 7/8(1800)
216,000
690/313
47
PRESIÓN OPERATIVA DE SUMINISTRO
PRESIÓN OPERATIVA EN EL MÚLTIPLE
SEPARACIONES
DE LA INSTALACIÓN
GAS NATURAL
PROPANO
GAS NATURAL
PROPANO
SEPARACIÓN DE 0” PARA IN-
STALACIÓN EN AMBIENTES NO
COMBUSTIBLES SOLAMENTE
"WC
MBar
"WC
Mbar
"WC
MBar
"WC
Mbar
7
17 5
11
27 5
4 5
11
10
24 5
