Specifications May Vary Depending on Tractor Model and are Subject to Change Without Notification. Tractors Must Be Equipped
with ROPS and Seat belt That Will Provide Better Safety.
SERIES
665H
765H
865H
965H
Maximum Digging Depth
7’0”
8’0”
9’0”
10’1”

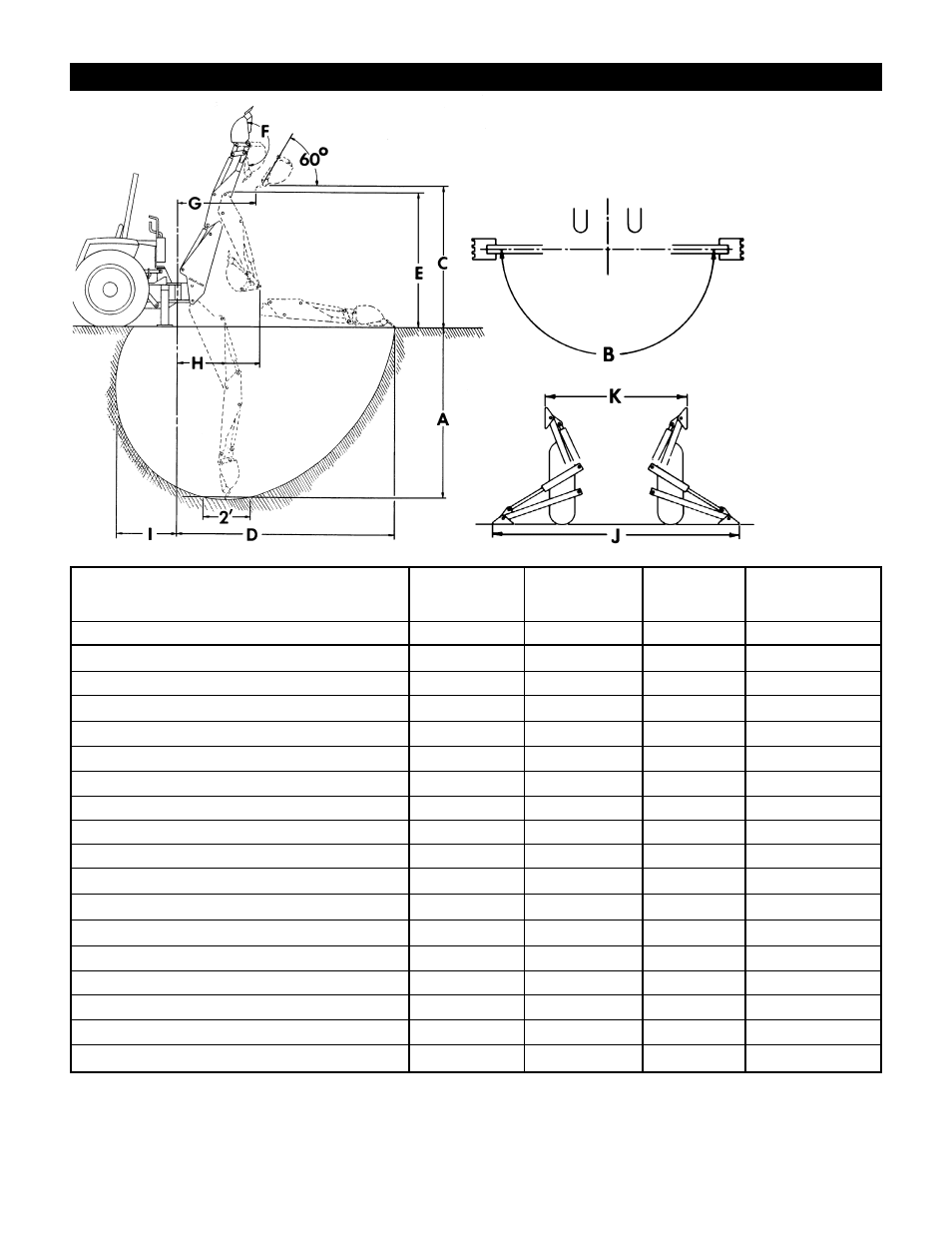

A. Digging Depth (two foot flat bottom)
6’6”
7’6”
8’6”
9’7”
B. Swing Arc
180°
180°
180°
180°
C. Loading Height (bucket at 60°)
5’0”
5’10”
6’10”
7’8”
D. Reach from Center Line of Swing Pivot
8’6”
9’6”
11’1”
12’5”
E. Transport Height (maximum)
4’11”
5’9”
6’9”
7’10”
F. Bucket Rotation
180°
180°
180°
180°
G. Loading Reach (bucket at 60°)
3’2”
3’7”
3’7”
4’11”
H. Transport Overhang
3’5”
3’6”
4’0”
5’1”
I. Undercut
2’4”
2’6”
2’10”
2’11”
J. Stabilizer Spread, down position
6’6”
7’5”
8’3”
9’3”
K. Stabilizer Spread, up position
3’11”
5’1”
4’6”
6’0”
Bucket Cylinder Digging Force
2450 lbs.
2840 lbs.
3730 lbs.
4575 lbs.
Dipperstick Cylinder Digging Force`
1250 lbs.
2005 lbs.
2435 lbs.
3175 lbs.
Shipping Weight (less bucket)
654 lbs.
875lbs.
1040 lbs.
1620 lbs.
Hydraulic Volume Requirements
4 to 5 GPM
5 to 6 GPM
5 to 8 GPM
6 to 9 GPM
Hydraulic Pressure Requirements
2250 psi.
2250 psi.
2525 psi.
2400 psi.
Recommended Tractor HP Requirements
18 - 35 HP
25 - 45 HP
45 - 95 HP
55 - 100HP
