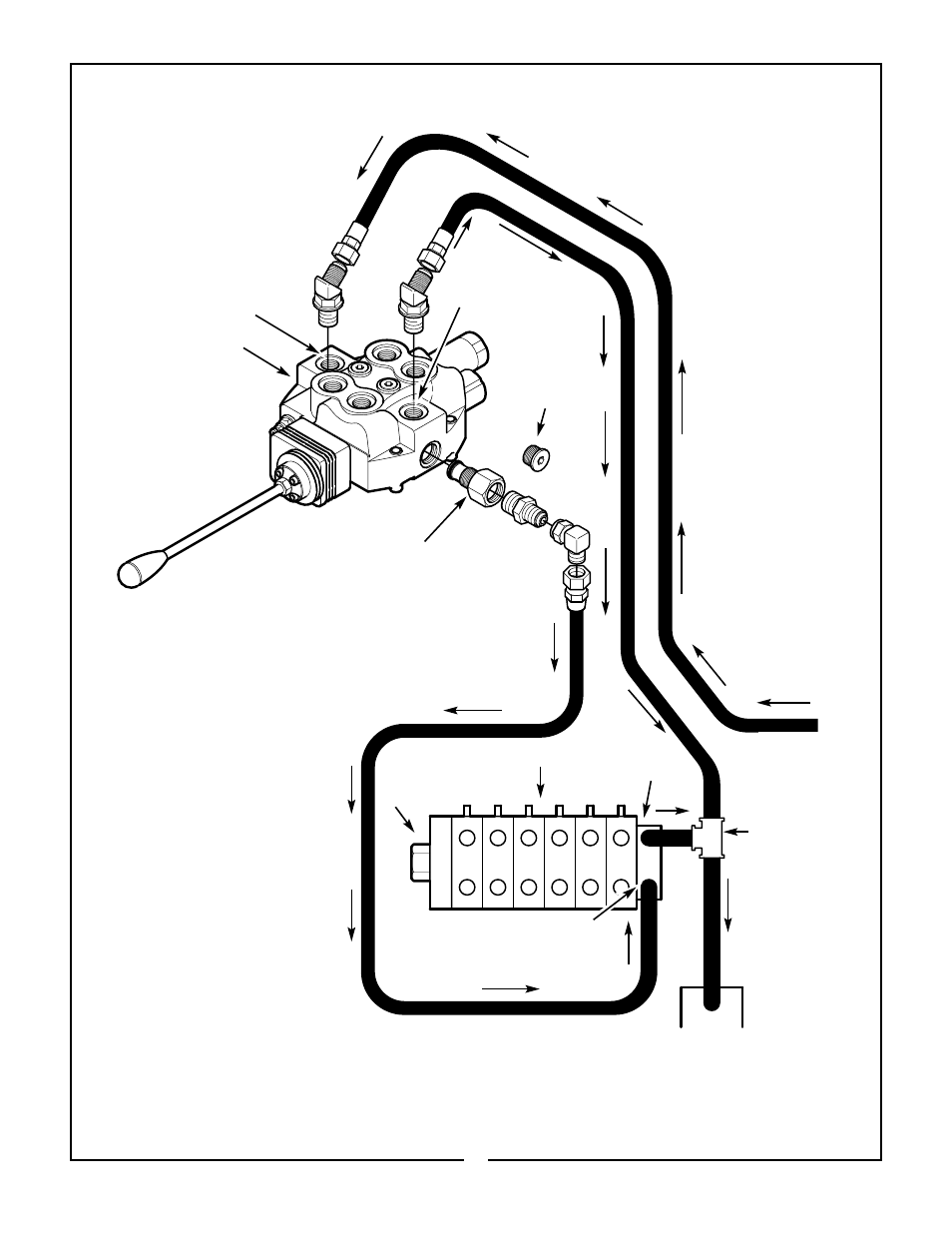

BUSH HOG BACKHOE & BUSH HOG LOADER VALVE

FIGURE 23

NOTE: Large loader valve
shown. Small loader valve
porting is different. Refer to
loader operator’s manual for
different valves.

IMPORTANT: Never connect the return hose to a tractor remote
coupler which can be pressurised. Accidental pressurization
can cause serious damage to backhoe valve.

Bush Hog Loader Valve

Inlet

Outlet

Open Center

Plug

Power Beyond

Plug

(Supplied With Valve)

Tractor

Pressure Outlet

Backhoe

Pipe Tee

Plug

Outlet

Inlet

Return Line

Tractor Reservoir Port
