ATTACHING KIT INSTRUCTIONS (For 965H)

3-POINT HITCH LINKAGE & HYDRAULIC HOOK-UP

TO TRACTOR HYDRAULIC SYSTEMS

General Description

Mounting and hydraulic kits include two hoses which
can be used in connecting the backhoe control valve
to the tractor hydraulic system. Additional hydraulic
components or kits will be required to complete the
hook-up to the tractor hydraulic system. Refer to
“Hydraulic Hook-Up” section for further information.
Pump and reservoir kits are available as options.

The backhoe is mounted on the tractor lower link
arms and an adjustable upper link is supplied to
replace the tractor upper link. A set of stabilizer arms
are included. They bolt from the adjustable upper

link to the backhoe mainframe, locking the hoe rigid-
ly in one position.

IMPORTANT- Tractor lower links must be kept
free of lifting forces at all times, after installation
of the attaching kit, by keeping tractor quadrant
lever in the lowered position.

IMPORTANT: If the 3-Point Kit is to be used with a
PTO & Reservoir Kit, the Reservoir Tank and it’s fit-
tings should be installed before proceeding with the
3-Point installation.

28

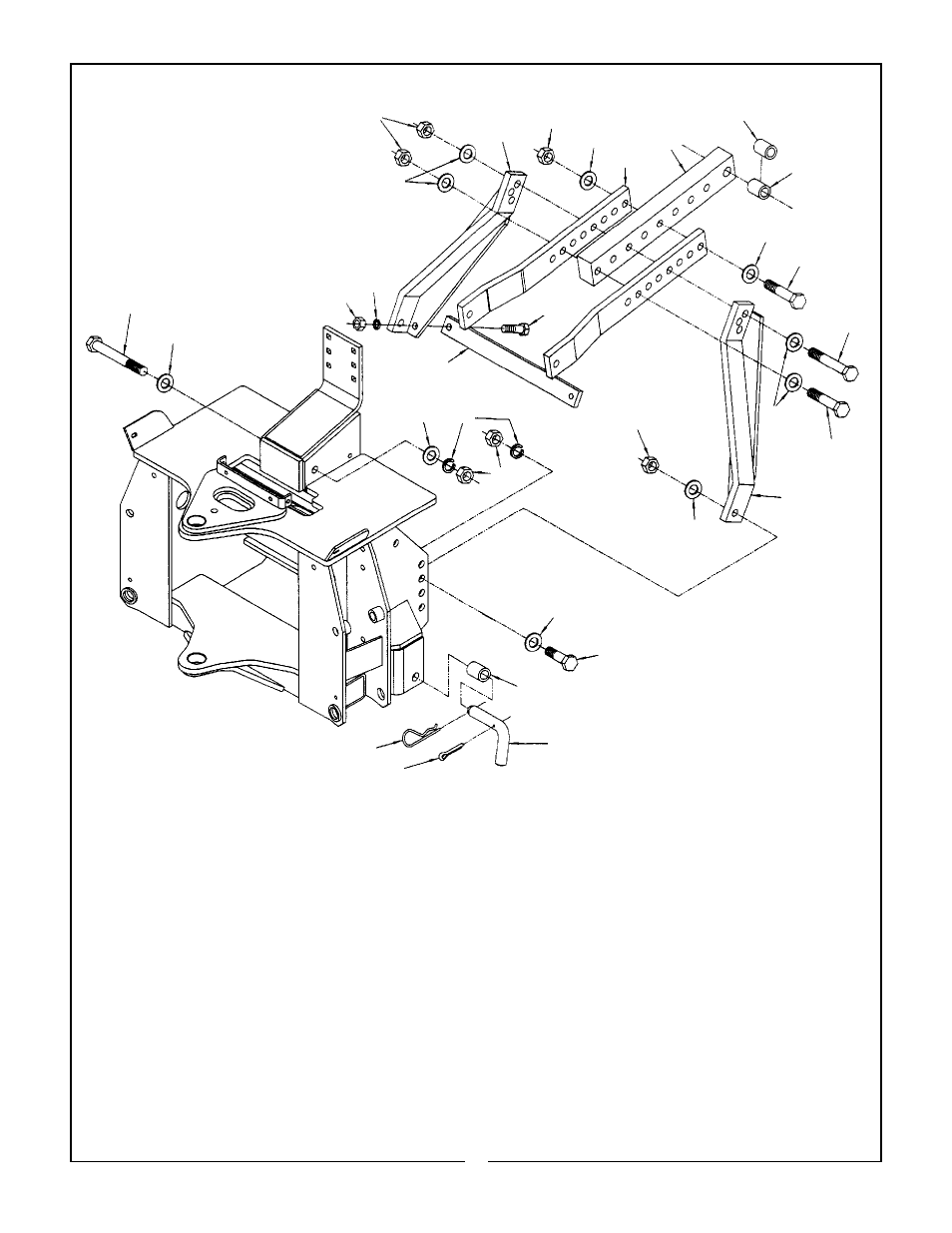

Figure 21
(965H)

205

210

206

208

210

207

217

207

210

221

220

213

216

210

203

204

200

219

207

209

210

207

210

218

203

210

202

215

214

212
